SM5520TCV-0.8M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> SM5520TCV-0.8M

SM5520TCV-0.8M: DescriptionCMOS Output Clock Oscillator, 0.8MHz Min, 160MHz Max, 0.8MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, LCC-4; CategoryPassive components oscillator; File Size961KB，8 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric View All

SM5520TCV-0.8M Overview

CMOS Output Clock Oscillator, 0.8MHz Min, 160MHz Max, 0.8MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, LCC-4

SM5520TCV-0.8M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1030773533
package instruction	ROHS COMPLIANT, CERAMIC, SMD, LCC-4
Reach Compliance Code	compliant
YTEOL	6.47
Other features	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.12
physical size	5mm x 3.2mm x 1.3mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	5 ns
Filter level	MIL-STD-883
Maximum slew rate	9 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

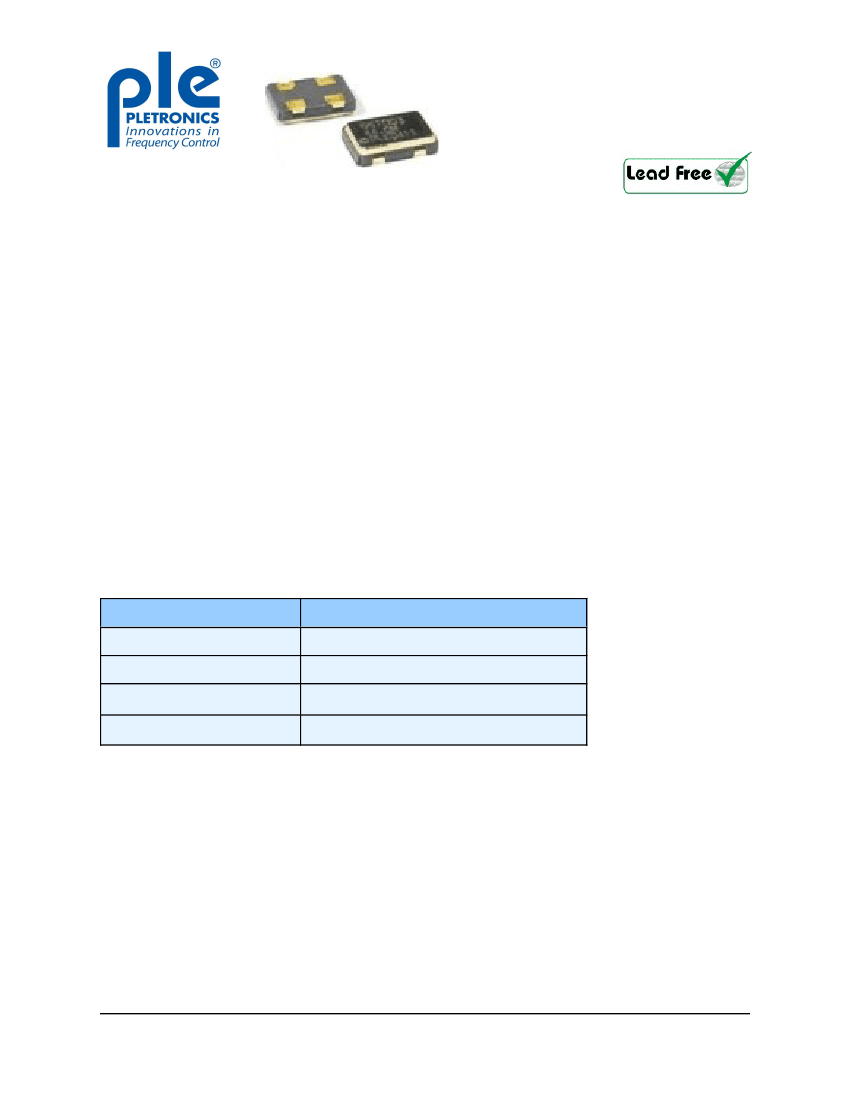

SM55T Series 3.3 V

CMOS Clock Oscillators

November 2018

• Pletronics’ SM55 Series is a quartz crystal

controlled precision square wave generator with a

CMOS output.

• The package is designed for high density surface

m ount designs.

• This is a low cost m ass produced oscillator.

• Tape and Reel or cut tape packaging is available.

0.8 to 160 MHz

3.2 x 5 m m LCC Ceram ic Package

Enable/Disable Function

Disable function includes low standby power

m ode

• Fundam ental or 3

Overtone Crystals used

• Low Jitter

•

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s

W eight of the Device: 0.064 gram s

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e4

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Output Current

Unit

-0.5V to +7.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

+25 m A to -25 m A

Thermal Characteristics

The m axim um die or junction tem perature is 155

The therm al resistance junction to board is 30 to 50

C/W att depending on the solder pads, ground plane

and construction of the PCB.

P roduct inform ation is current as of publication date. T he product conform s

to specifications per the term s of the P letronics standard warranty. Production

processsing does not necessarily include testing of all param eters.
