SM7644HEV-0.8M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> SM7644HEV-0.8M

SM7644HEV-0.8M: DescriptionOscillator, 0.8MHz Min, 70MHz Max, 0.8MHz Nom, CMOS; CategoryPassive components oscillator; File Size199KB，9 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric View All

SM7644HEV-0.8M Overview

Oscillator, 0.8MHz Min, 70MHz Max, 0.8MHz Nom, CMOS

SM7644HEV-0.8M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	108114896
package instruction	DILCC4,.35,200
Reach Compliance Code	compliant
YTEOL	3
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	70 MHz
Minimum operating frequency	0.8 MHz
Nominal operating frequency	0.8 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.35,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	12 mA
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS

Preview

Download Datasheet

View All

SM76H Series 3.3 V

CMOS Clock Oscillators

March 2008

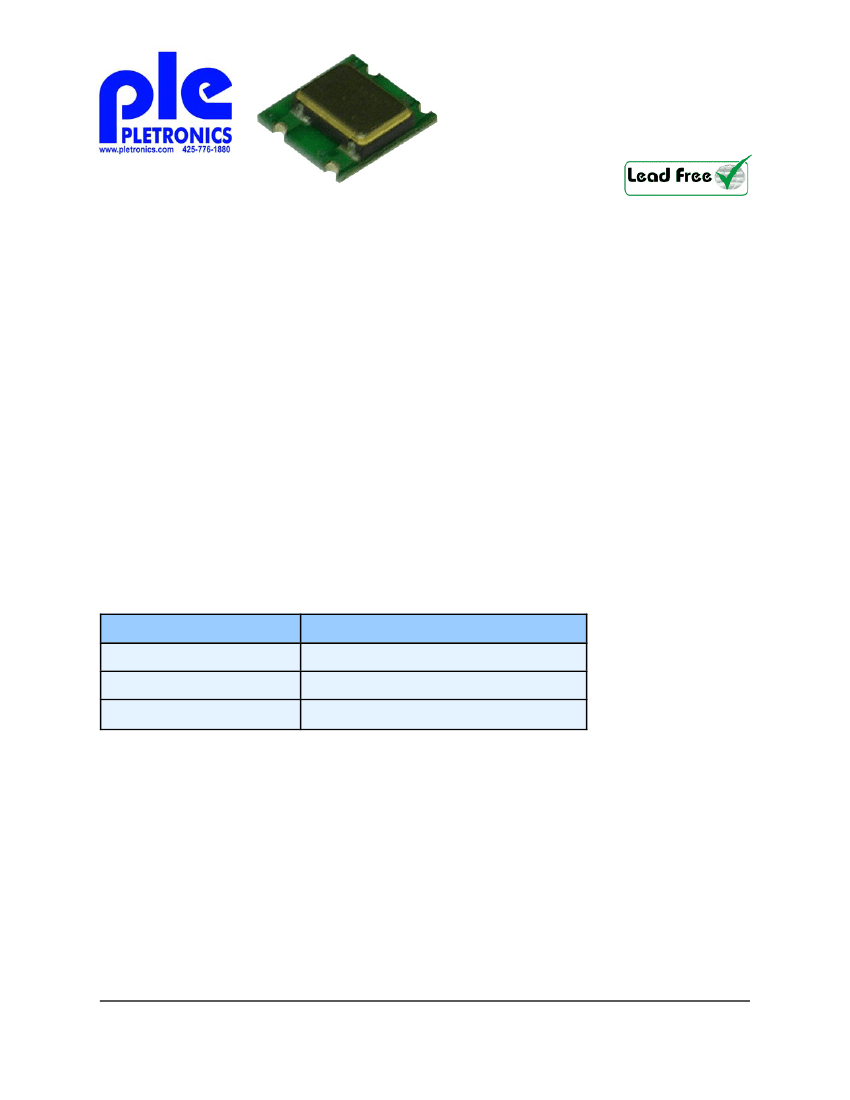

• Pletronics’ SM76H Series is a quartz crystal

controlled precision square wave generator with a

CMOS output. Made from SM77H devices.

• S-Pkg is Solder pad compatible with the Epson

SG615 and SG8002J and many other 9x14mm

plastic J lead packages.

• FR4 base with an SM77H series oscillator.

• Tape and Reel or cut tape packaging is available.

0.8 to 70 MHz

9.04mm x 8.23mm package

Enable/Disable or Standby Function

Disable function includes low standby power

mode

• Low Jitter

• Package changed in 2008

•

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s

Weight of the Device: 0.40 grams

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e4

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Unit

-0.5V to +7.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

Thermal Characteristics

The maximum die or junction temperature is 155

The thermal resistance junction to board is 60 to 100

C/Watt depending on the solder pads, ground plane

and construction of the PCB.

Product information is current as of publication date. The product conforms

Inc.

to specifications per the terms of the Pletronics standard warranty. Production

processsing does not necessarily include testing of all parameters.
