CF453215-150K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CF453215-150K

CF453215-150K: Descriptioninductor multilayer 15uh 1812; CategoryPassive components inductor; File Size160KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CF453215-150K Overview

inductor multilayer 15uh 1812

CF453215-150K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	1812
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	1812
structure	Multilaye
core material	FERRITE
DC Resistance	2.5 Ω
Nominal inductance(L)	15 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CF453215
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.5 mm
Package length	4.5 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.2 A
self resonant frequency	17 MHz
series	CF453215
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.52 MHz
Tolerance	10%

Preview

Download Datasheet

View All

Features

■

1812 size

■

Magnetic shielding

■

High Q characteristics

■

High current

■

Lead Free

The CF453215 Series is currently

available, although not recommended

for new designs.

Model CM453232

is preferred.

Applications

■

Prevention of electromagnetic

interference to signals on the secondary

side of electronic equipment

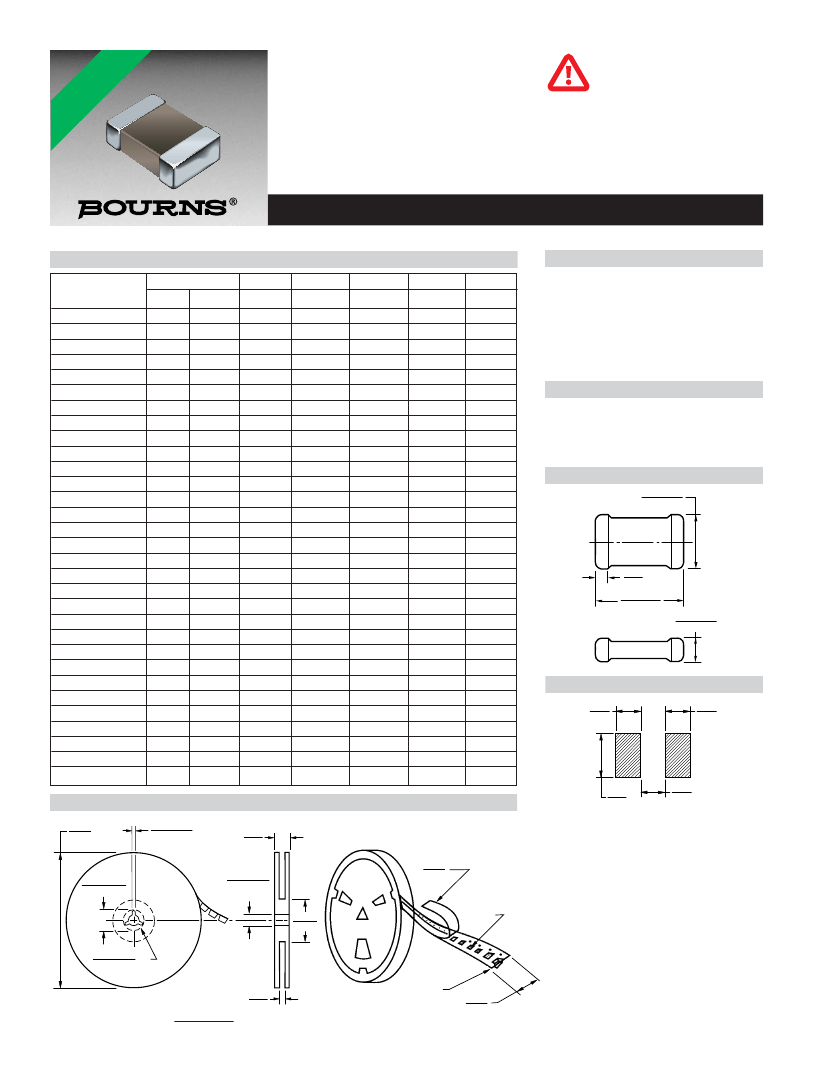

CF453215 Series -

Ferrite Multi-Layer High Current Chip Inductors

Electrical Specifications

Bourns Part No.

µH

Inductance

Tol. %

min.

Test Freq.

L,Q MHz

SRF MHz

min.

DCR

Ω

max.

I rms

mA max.

CF453215-R10K

CF453215-R12K

CF453215-R15K

CF453215-R18K

CF453215-R22K

CF453215-R27K

CF453215-R33K

CF453215-R39K

CF453215-R47K

CF453215-R56K

CF453215-R68K

CF453215-R82K

CF453215-1R0K

CF453215-1R2K

CF453215-1R5K

CF453215-1R8K

CF453215-2R2K

CF453215-2R7K

CF453215-3R3K

CF453215-3R9K

CF453215-4R7K

CF453215-5R6K

CF453215-6R8K

CF453215-8R2K

CF453215-100K

CF453215-120K

CF453215-150K

CF453215-180K

CF453215-220K

CF453215-270K

CF453215-330K

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

±10

25.2

7.96

2.52

300

280

250

220

200

180

165

150

145

140

135

130

100

0.18

0.20

0.22

0.24

0.25

0.26

0.28

0.30

0.32

0.36

0.40

0.45

0.50

0.55

0.60

0.65

0.70

0.75

0.80

0.90

1.00

1.10

1.20

1.40

1.60

2.00

2.50

2.80

3.20

3.60

4.00

800

770

730

700

665

635

605

575

545

520

500

475

450

430

410

390

380

370

355

330

315

300

285

270

250

225

200

190

180

170

160

General Specifications

Temperature Rise

...................40 ˚C max. at rated current

Operating Temperature

..................................-55 °C to +125 °C

Storage Temperature..-55 °C to +125 °C

Reflow Soldering ...230 °C, 50 sec. max.

Resistance to Soldering Heat

.................................260 ˚C, 5 seconds

Materials

Base Material ................................Ferrite

Terminal ..........................Pd/Pt/Ag/Ni/Sn

Packaging..................1,000 pcs. per reel

Product Dimensions

3.2

0.2

(.126

.008)

0.8

MAX.

(.031)

4.5

0.2

(.177

.008)

1.5

0.2

(.059

.008)

Recommended Layout

1.7

(.067)

1.7

(.067)

Packaging Specifications

178.0

(7.00)

DIA.

2.0 ± 0.8

(.079 ± .031)

18.4

(.724)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

4.2

(.165)

2.6

(.102)

21.0 ± 0.8

(.827 ± .031)

13.0 ± 0.5

(.512 ± .020)

DIA.

50.0

(1.969)

13.0 ± 0.5

DIA.

(.512 ± .020)

EMBOSSED

CARRIER

12.0

(.472)

14.0

(.551)

DIMENSIONS:

(INCHES)

REV. 11/09

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

CF453215-150K Related Products

	CF453215-150K	CF453215-120K
Description	inductor multilayer 15uh 1812	inductor multilayer 12uh 1812
Is it Rohs certified?	conform to	conform to
Maker	Bourns	Bourns
package instruction	1812	1812
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
uppercase and lowercase codes	1812	1812
structure	Multilaye	Multilaye
core material	FERRITE	FERRITE
DC Resistance	2.5 Ω	2 Ω
Nominal inductance(L)	15 µH	12 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3
Manufacturer's serial number	CF453215	CF453215
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package height	1.5 mm	1.5 mm
Package length	4.5 mm	4.5 mm
Package form	SMT	SMT
Package width	3.2 mm	3.2 mm
method of packing	TR	TR
Minimum quality factor (at nominal inductance)	50	50
Maximum rated current	0.2 A	0.225 A
self resonant frequency	17 MHz	18 MHz
series	CF453215	CF453215
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES
surface mount	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	2.52 MHz	2.52 MHz
Tolerance	10%	10%
