Data sheet
RSSD
RS SD9S UNC 4.40 LP2N
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

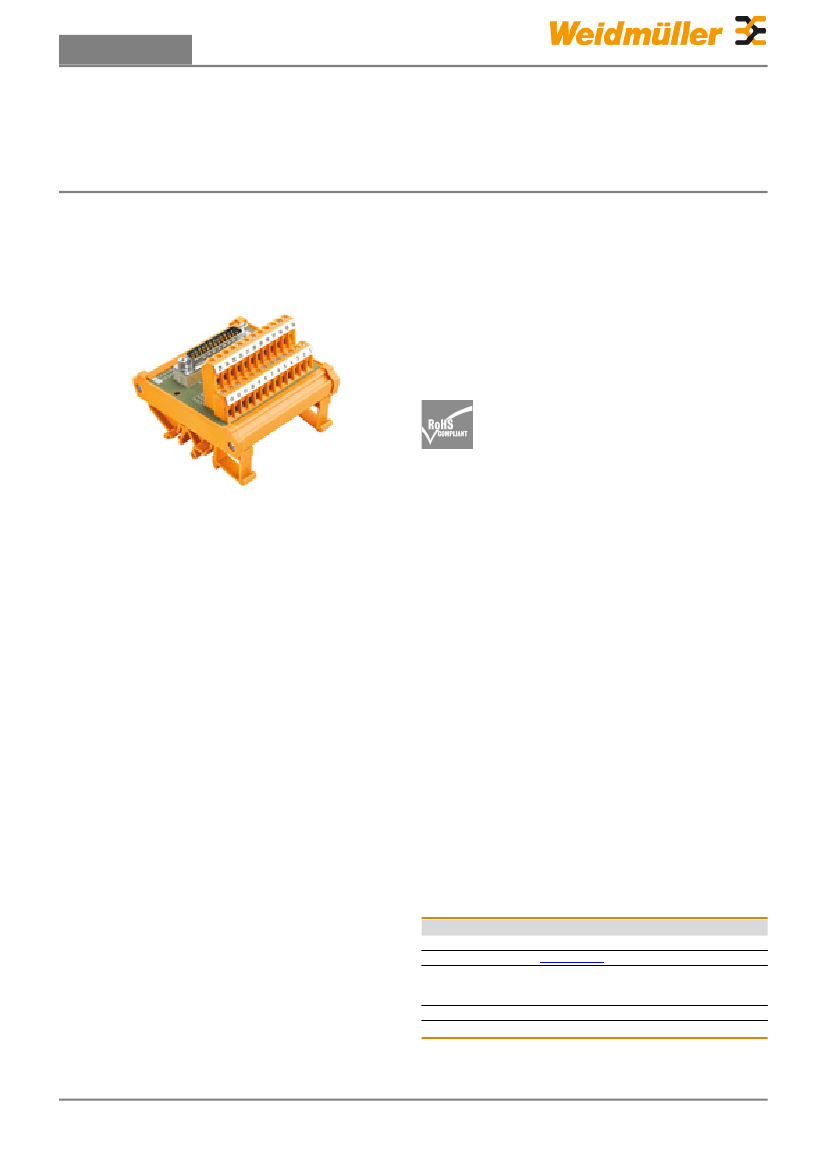

Passive interfaces for signal transmission on a SubD
connector equipped with a clamping-yoke connection
in accordance with IEC 807-2 / DIN 41652. The main
features include:
• Group with 9-, 15-, 37- and 50-pole male and female
connectors.
• One-to-one electrical connection between controller
and field connections.
• Extremely compact modules for attachment to standard
TS35 or TS32 rail.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS SD9S UNC 4.40 LP2N
8003901001
Interface, RSSD, SUB-D plug, in compliance with
IEC 807-2 / DIN 41652, 9-pole plug, Screw
connection
4032248047291
1 pc(s).
Creation date December 18, 2013 6:42:07 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RSSD
RS SD9S UNC 4.40 LP2N
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
45 mm
76 mm
Width
Net weight
Dimensions and weights
Length
Height
87 mm
102 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+70 °C
Connection Data
Connection on control side
Connection (field side)
SUB-D plug, in compliance
with IEC 807-2 / DIN
41652
LP2N 5.08mm
Number of poles (control side)
Earthing
9-pole plug
No
Rating data
Rated voltage
100 V
Rated current per connection
1.5 A
Insulation coordination (EN50178)
According to
Surge voltage category
Pulse voltage test (1,2/50μs)
DIN EN 50178
II
0.8 kV
Rated insulation voltage
Pollution severity level
100 V
2
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Min. wire cross-section, AWG [field]
Tightening torque, min.
Stripping length
Screw connection
6 mm²
6 mm²
4 mm²
0.5 mm²
AWG 26
0.5 Nm
6 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tightening torque, max.
0.13 mm²
0.5 mm²
0.5 mm²
2.5 mm²
2.5 mm²
AWG 12
0.6 Nm
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Product information
Descriptive text accessories
Refer to the "Universal cables PAC-UNIV" section in this chapter
Approvals
Approvals
ROHS
Conform
Creation date December 18, 2013 6:42:07 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
RSSD
RS SD9S UNC 4.40 LP2N
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date December 18, 2013 6:42:07 PM CET
Catalogue status / We reserve the right to make technical changes.
