Interfaces with diodes for surge voltage protection, lamp
testing or protection against reversed polarity.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RSD 40 LP/LP
8022921001

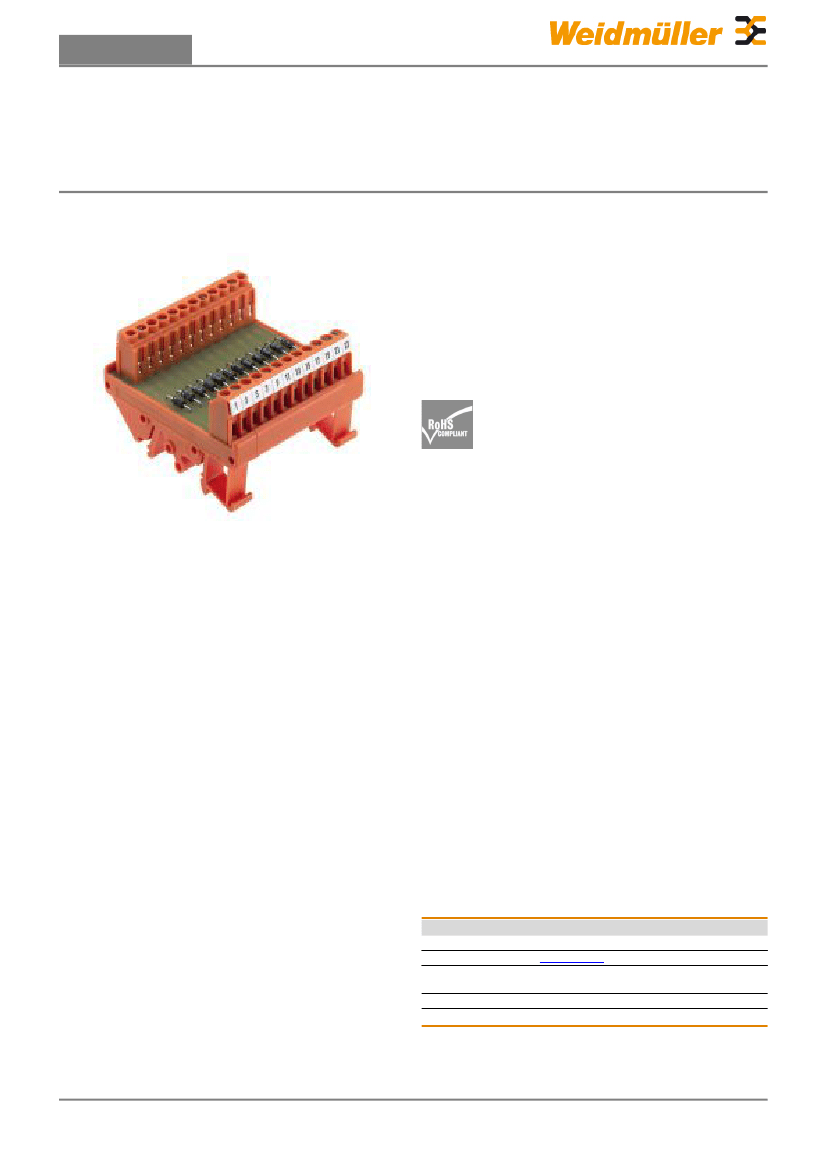

Interface, RSD, PLC digital I/O module, Screw
connection
4032248182718
1 pc(s).
Creation date December 18, 2013 7:13:18 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RSD
RSD 40 LP/LP
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
220 mm
42 mm
Width
Net weight
Dimensions and weights
Length
Height
70 mm
364 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+60 °C
Rating Data
Rated voltage (text)
Rated insulation voltage
Pollution severity level
230 V
Rated current per connection
1A
Insulation coordination (EN50178)
230 V
2
Surge voltage category
Pulse voltage test (1,2/50μs)
II
2 kV
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Min. wire cross-section, AWG [field]
Tightening torque, min.
Stripping length
Screw connection
6 mm²
6 mm²
4 mm²
0.5 mm²
AWG 26
0.5 Nm
6 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tightening torque, max.
0.13 mm²
0.5 mm²
0.5 mm²
2.5 mm²
2.5 mm²
AWG 12
0.6 Nm
Classifications
ETIM 3.0
eClass 5.1
EC001419
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Approvals
Approvals
ROHS
Conform
Downloads
Declaration of Conformity
K319_10_09.pdf
