2.5V CMOS Compatible SMD Crystal Oscillator
ASE2 SERIES
FEATURES:
• Compact and low in height at 1.2mm
• Low current consumption
2mA typ. for 19.2MHz
• Tri state function
Moisture Sensitivity Level (MSL) –1
ESD Sensitive
• Suitable for RoHS reflow
• Tight stability option ±20ppm
for -40 to +85°C
• Seam sealed package
assures high reliability
Typical
Maximum
156.25
+70
+125
+100
+2.625
8
8
15
25
25
55
60
5
5
5
5
5
15
0.1* Vdd
0.6
0.6
3
3
3
2
Pb
RoHS / RoHS II Compliant
3.2 x 2.5 x 1.2m m
APPLICATIONS:
• CCD clo ck for VTR camera
• Equipment connected to PC or PC cards
• Wireless communication
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Minimum
0.625
-10
-55
-100
+2.375
Units
MHz
°C
°C
ppm
V
Notes
STD (See options)
See options
0.625 ~ 19.99 MHz
20.00 ~ 31.99 MHz
32.00 ~ 59.99 MHz
60.00 ~ 125.00 MHz
125.01 ~ 156.25MHz
0.625 ~ 89.999 MHz
90.00 ~ 156.25 MHz
0.625 ~ 19.99 MHz
20.00 ~ 31.99 MHz
32.00 ~ 59.99 MHz
60.00 ~ 125.00 MHz
125.01 ~ 156.25MHz
CMOS
Supply Current (Idd)
2.5
2
3
5
12
15
mA
Symmetry @ 1/2Vdd
45
40
3
3
3
3
3
0.9* Vdd
%
Rise and Fall Time (Tr/Tf)
ns
Output Load
Output Voltage (VOH)
Output Voltage (VOL)
pF
V
V
0.625 ~ 19.99 MHz
20.00 ~ 31.99 MHz
ms
32.00 ~ 59.99 MHz
60.00 ~ 125.00 MHz
125.01 ~ 156.25MHz
Start-up Time
0.6
1.3
Tri-state function
RMS Jitter:
Aging at 25°C (first year)
Stand-by Current:
1.3
2
"1" (VIH≥0.7*Vdd) or Open: Oscillation;
"0" (VIL<0.3*Vdd) : Hi Z
2
-5
5
+5
10
ps
ppm
µA
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASE2 -
-
MHz -
-
-
Packaging
Frequency in MHz
e.g. 0.625MHz
24.576MHz
14.31818MHz
26.000MHz
156.25MHz
Operating Temp.
I: 0°C ~ +50°C
D: -10°C ~ +60°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
Contact ABRACON for
wider temperature range.
Overall Freq.
Stability
J(*): ±20ppm
R: ±25ppm
K: ±30ppm
H: ±35ppm
B: ±40ppm
C: ±50ppm
*: Temp options I, D, E,
and -10°C to + 70°C only
Blank: Bulk
T: 1000pcs/Reel
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 08.06.14
30332 Esperanza, Rancho Santa Margarita, Califo 92688
rnia
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
2.5V CMOS Compatible SMD Crystal Oscillator
ASE2 SERIES

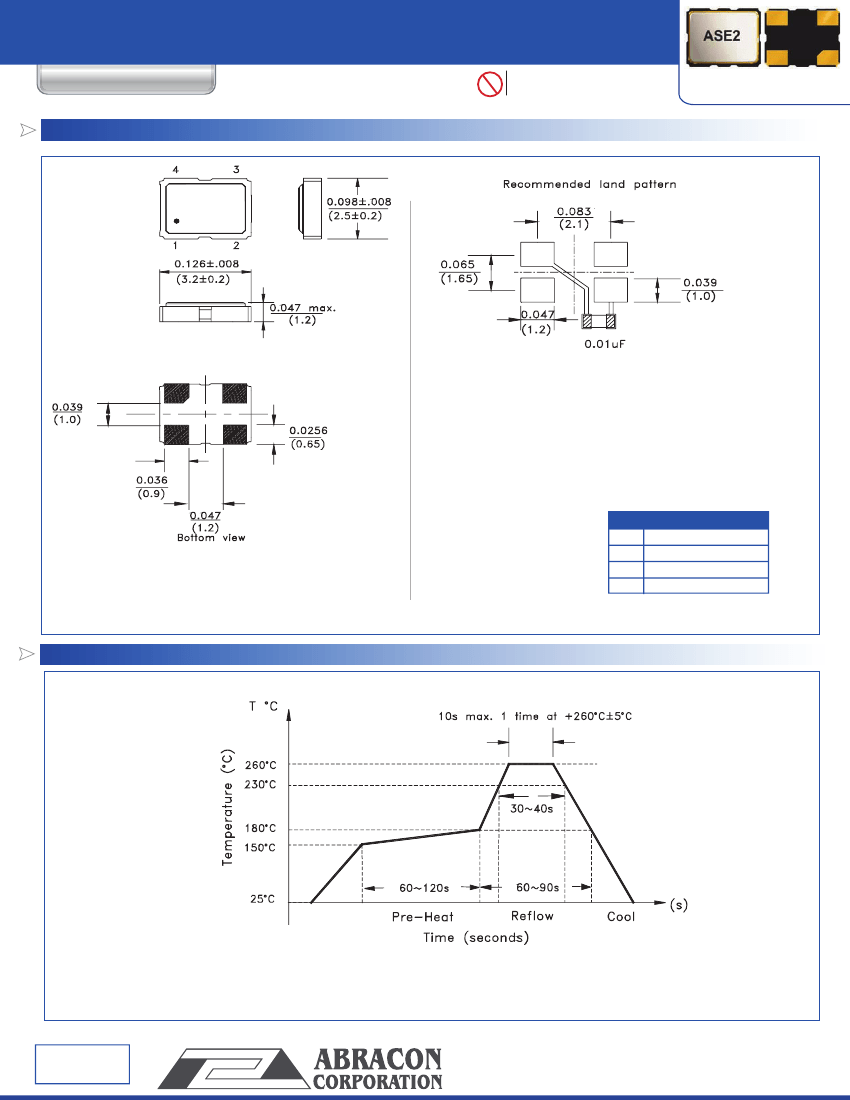

OUTLINE DRAWING:
Pb
RoHS / RoHS II Compliant
3.2 x 2.5 x 1.2mm
Note:
1. The outline package configuration varies with
frequency range. Electrical properties, pin configuration,
and land pattern are the same.
2. Recommend using an approximately 0.01µF bypass
capacitor between Pin 2 and 4.
PIN
1
2
3
4
FUNCTION
Tri-state
GND/Case
Output
Vdd
Dimensions: Inches (mm)
REFLOW PROFILE
ABRACON IS
ISO9001:2008
ISO 9001 / QS 9000
CE RTIFIED
Revised: 08.06.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
2.5V CMOS Compatible SMD Crystal Oscillator
ASE2 SERIES

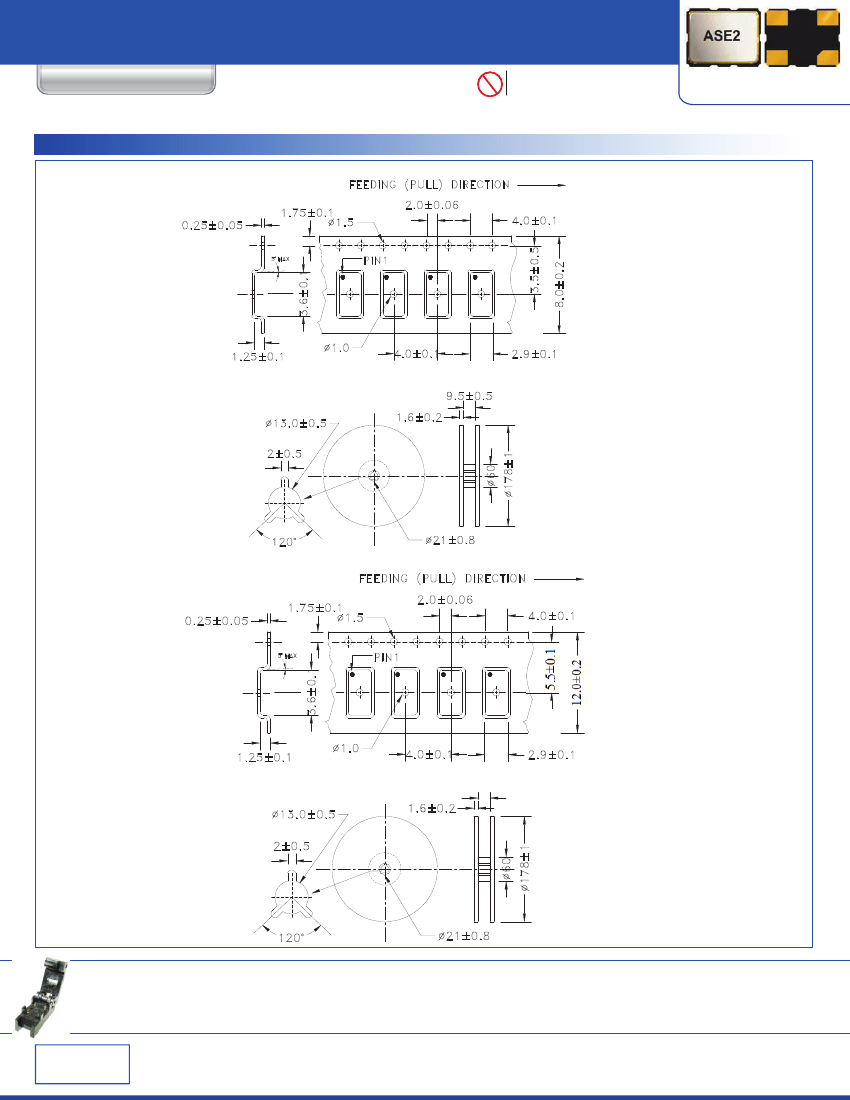

TAPE & REEL:
T: 1000pcs/reel
8mm Tape Width
Pb
RoHS / RoHS II Compliant
3.2 x 2.5 x 1.2mm
12mm Tape Width
13.0±0.3
Dimensions: mm
Need a test socket for the ASE2 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO9001:2008
ISO 9001 / QS 9000
CE RTIFIED
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial,
Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation,
Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result
in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
Revised: 08.06.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
