350CFX6R8MEFCRX10X16: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 6.8uF,; CategoryPassive components capacitor; File Size152KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

350CFX6R8MEFCRX10X16 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 6.8uF,

350CFX6R8MEFCRX10X16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	995345307
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.2
capacitance	6.8 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
length	16 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	220 mA
Terminal pitch	5 mm

Preview

Download Datasheet

View All

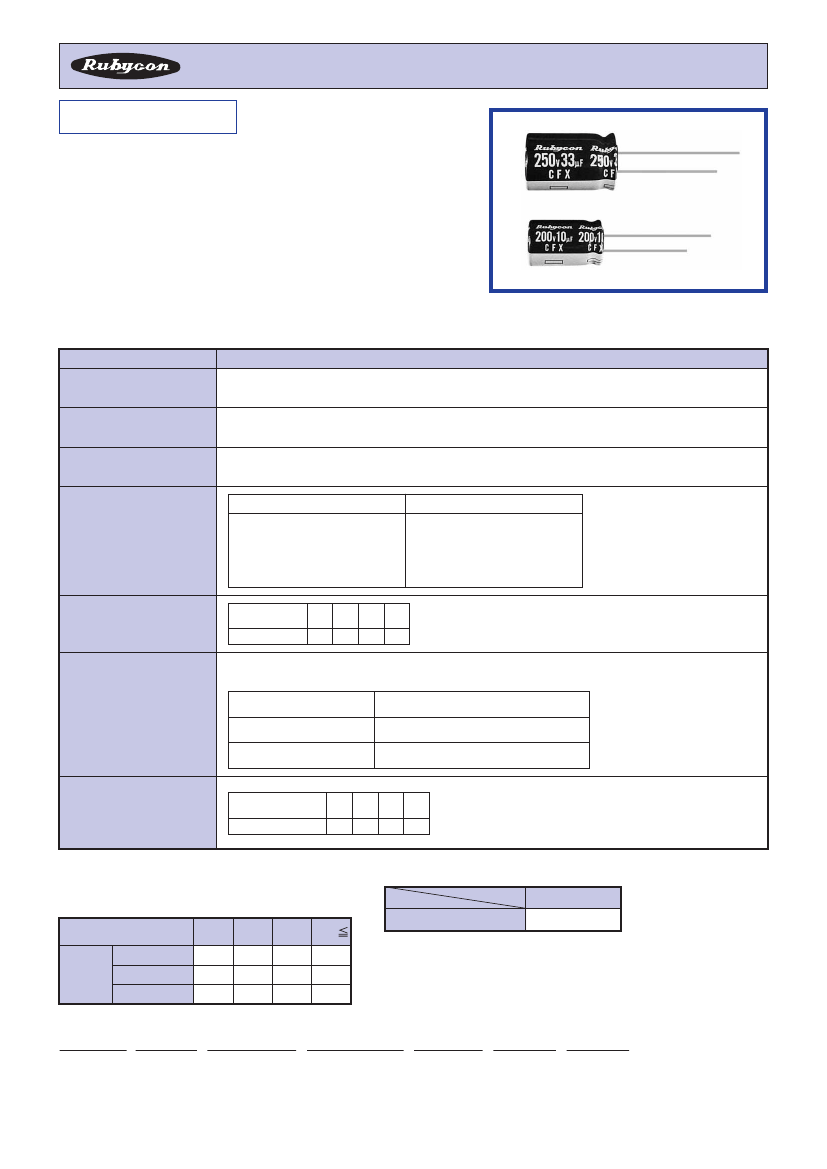

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

CFX

SERIES

Load Life : 105℃ 5000 hours.

◆FEATURES

・

High Ripple Current.

・

Electronic Ballast, Power Supply.

For

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

200∼400V.DC

±20％

（20℃，

120Hz）

CV≦1000

CV＞1000

I＝0.04CV+100μA

( 1 minute)

I＝0.02CV+25μA

( 5 minute)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝0.1CV+40μA

( 1 minute)

I＝0.03CV+15μA

( 5 minute)

I＝

Leakage Current

(μA)

C＝

Capacitance

(μF)

V＝

Rated Voltage

(V)

(tanδ)

Dissipation Factor(MAX)

Rated Voltage

120Hz）

200 250 350 400

（20℃，

(V)

tanδ

0.15 0.15 0.20 0.20

After applying rated voltage with rated ripple current for 5000 hrs at 105℃, the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

（120Hz）

Rated Voltage

200 250 350 400

(V)

（−25℃）（20℃） 3

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

◆OPTION

Code

PET Sleeve

（Hz）

2.2∼4.7μF

6.8∼10μF

22∼100μF

120

0.2

0.3

0.5

0.4

0.6

0.8

10k 100k

0.8

0.9

1.0

EFC

Coeﬃcient

◆PART NUMBER

□□□

Rated Voltage

CFX

Series

□□□□□

Capacitance

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
