RMC1/2.2611%R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMC1/2.2611%R

RMC1/2.2611%R: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.75W, 0.261ohm, 200V, 1% +/-Tol, -350,350ppm/Cel, 2010,; CategoryPassive components The resistor; File Size231KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

RMC1/2.2611%R Overview

Fixed Resistor, Metal Glaze/thick Film, 0.75W, 0.261ohm, 200V, 1% +/-Tol, -350,350ppm/Cel, 2010,

RMC1/2.2611%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	867793867
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
JESD-609 code	e0
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.55 mm
Package length	5 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, Embossed, 7 Inch
Rated power dissipation(P)	0.75 W
resistance	0.261 Ω
Resistor type	FIXED RESISTOR
series	RMC1/2(1%)
size code	2010
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

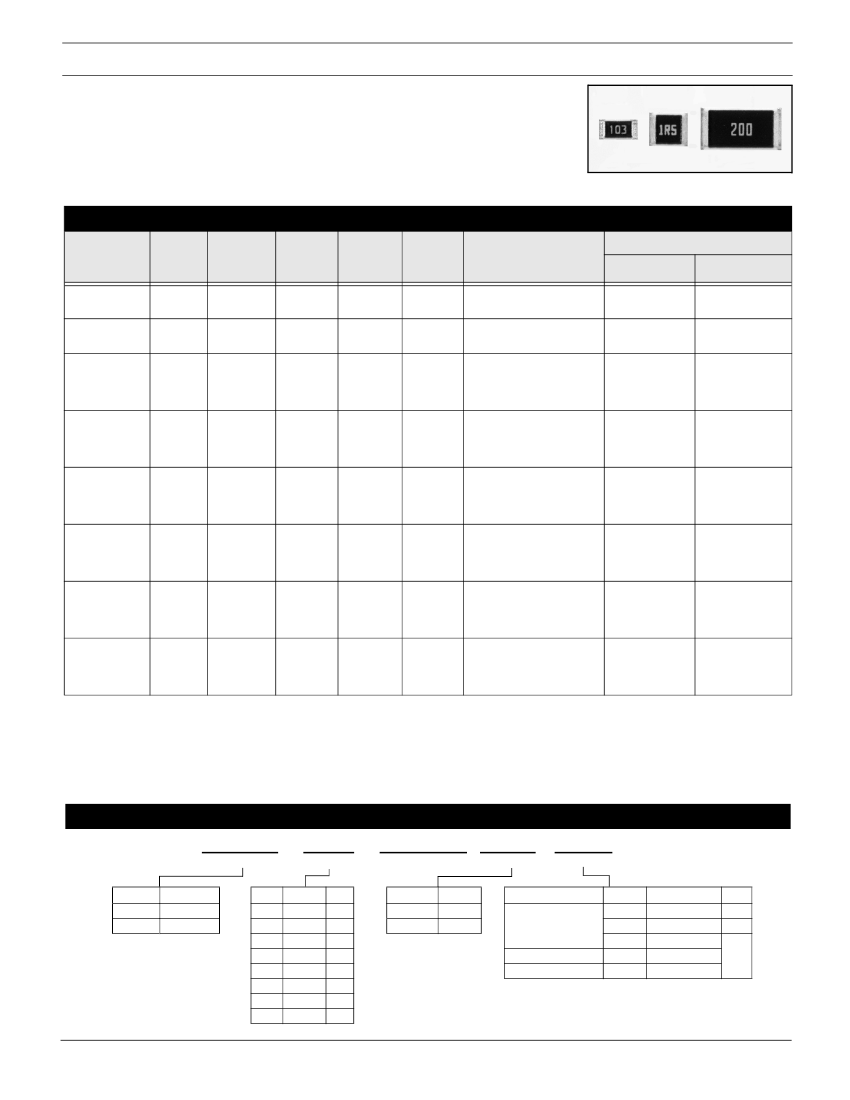

RMC Series — General Purpose Thick Film Chip Resistors

Features

• Nickel barrier terminations standard

• Power derating from 100% at 70°C to

zero at +150°C

• Operating temp range from -65°C to +150°C

• Zero ohm available (max resistance 0.05Ω)

• RoHS compliant / lead-free available (RMCF)

Electrical Specifications

Type / Code

Package

Size

Power

Rating

(Watts)

@ 70°C

0.05W

0.063W

Maximum

Working

Voltage*

Maximum

Overload

Voltage

100

Max.

Current

Resistance Temperature

Coefficient

±300 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

ppm/°C

Ohmic Range and Tolerance

10Ω – 97.6Ω

100Ω – 1M

–

1Ω – 10M

–

1Ω – 9.76Ω

10Ω – 1M

1.02M – 10M

–

0.1Ω – 0.976Ω

1.0Ω – 10M

–

0.1Ω – 0.976Ω

1.0Ω – 10M

–

0.1Ω – 0.97Ω

1.0Ω – 10M

–

0.1Ω – 0.98Ω

–

1.0Ω – 10M

–

0.1Ω – 0.98Ω

1.0Ω – 1M

–

10Ω – 91Ω

100Ω – 10M

1Ω – 10M

–

1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 24M

0.15Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

RMC 1/20

RMC 1/16S

0201

0402

1 Amp

RMC 1/16

0603

0.1W

100

1 Amp

RMC 1/10

0805

0.125W

150

300

2 Amp

RMC 1/8

1206

0.25W

200

400

2 Amp

RMC 1/4

1210

0.33W

200

400

3 Amp

RMC 1/2

2010

0.75W

200

400

3 Amp

RMC 1

2512

200

400

3 Amp

* Lesser of

√

PR or maximum working voltage.

How to Order

RMC

SEI Type

SEI Type Description

RMC

RMCF

Standard

RoHS

1/16

Code

4.7K

Nominal Resistance

Tolerance Values

E96,E24

E24

Tolerance

Packaging

Styles

1/16, 1/10, 1/8

1/4, 1/2, 1

1/20, 1/16S

Pkg Qty

1,000

5,000

4,000

Description

Bulk

7" reel - Paper

7" - Embossed

Code

Code Wattage Size

1/20

1/16

1/10

1/8

1/4

1/2

0.05W

0.1W

0.25W

0.33W

0.75W

0201

0603

1206

1210

2010

2512

1/16S 0.063W 0402

0.125W 0805

10,000 10" reel - Paper

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com
