LightBend
TM
Dual 1x2
Single-Mode Fiberoptic Switch
(Protected by U.S. patent 6823102 and pending patents)
Product Description

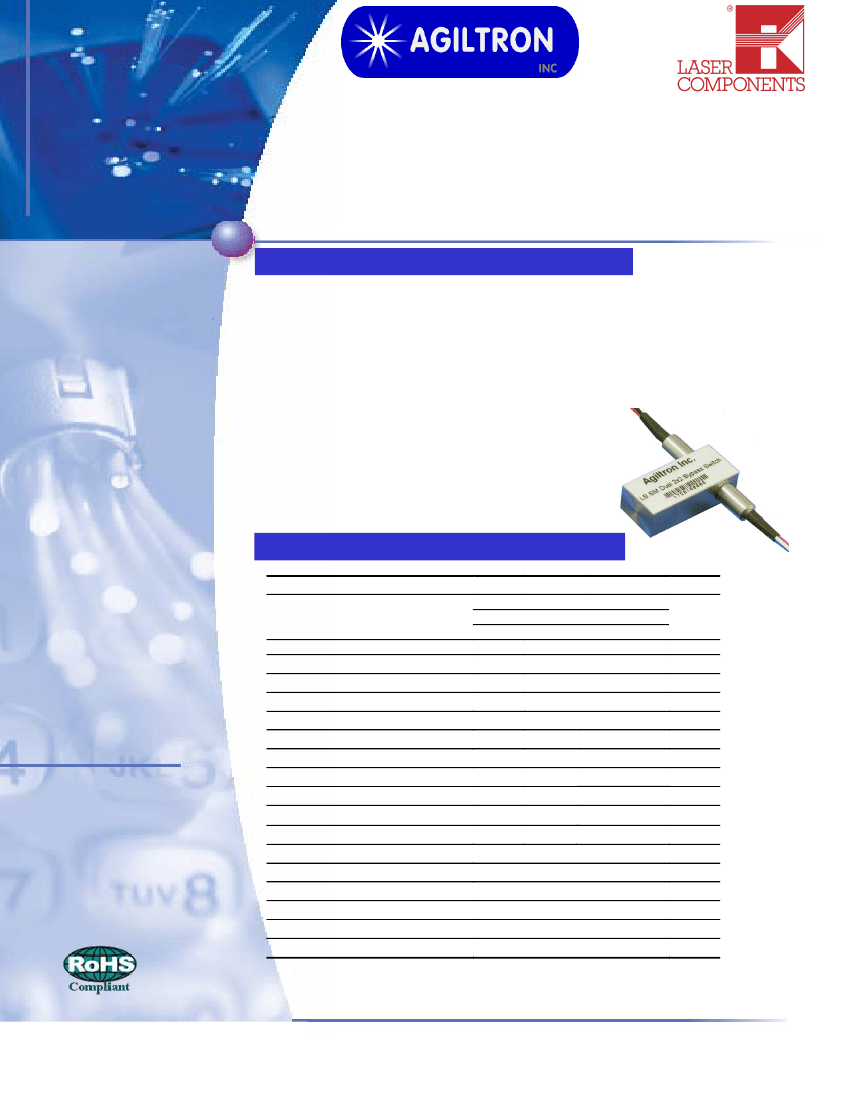

The LB Series Dual 1x2 fiber optic switch connects optical channels by
redirecting an incoming optical signal into a selected output fiber. This is
achieved using a patent pending opto-mechanical configuration and activated
via an electrical control signal. Latching operation preserves the selected
optical path after the driver signal has been removed. The switch has
integrated electrical position sensors. The new material-based advanced
design significantly reduces moving part position sensitivity, offering
unprecedented high stability as well as an unmatched low cost. Electronic
driver is available for this series of switches.
Features
•
•
•
•
•
•
•
Low Optical Distortions
8 Ports Integration
High Isolation
High Reliability
Fail-Safe Latching
Epoxy-Free Optical Path
Low Cost
Performance Specifications
LB Series Dual 1x2 Switch
Wavelength
Insertion Loss
1,2
Wavelength Dependent Loss
Polarization Dependent Loss
Return Loss
Cross Talk
1
1,2
Min
Typical
Max
Dual Band 1260~1360 and 1510~1610
Single Band 1260~1360 or 1510~1610
Broad Band
1260~1610
0.5
0.9(DW
3
)
0.15
0.4(DW
3
)
0.1
55
55
3
10
5
7
Unit
nm
dB
dB
dB
dB
dB
Switching Time
Repeatability
10
±
0.02
ms
dB
Cycles
mW
VDC
mA
ms
o
Applications
•
Protection
•
Instrumentation
Durability
Operating Optical Power
Operating Voltage
Operating Current
(Latching/Non-Latching)
Voltage Pulse Width
(square)
Switching Type
Operating Temperature
Storage Temperature
Fiber Type
Package Dimension
Notes:
1.
2.
300
5
30
20
500
7
60
Latching / Non-Latching
-5 ~ 70
-40 ~ 85
SFM-28
30.0L x 27.0W X 8.2H
mm
C
C
o
23º over operating wavelength and all SOP.
Excluding Connectors.
3.
DW: Dual band and Broad band.
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
LightBend
TM
Dual 1x1,1x2
Single-Mode Fiberoptic Switch

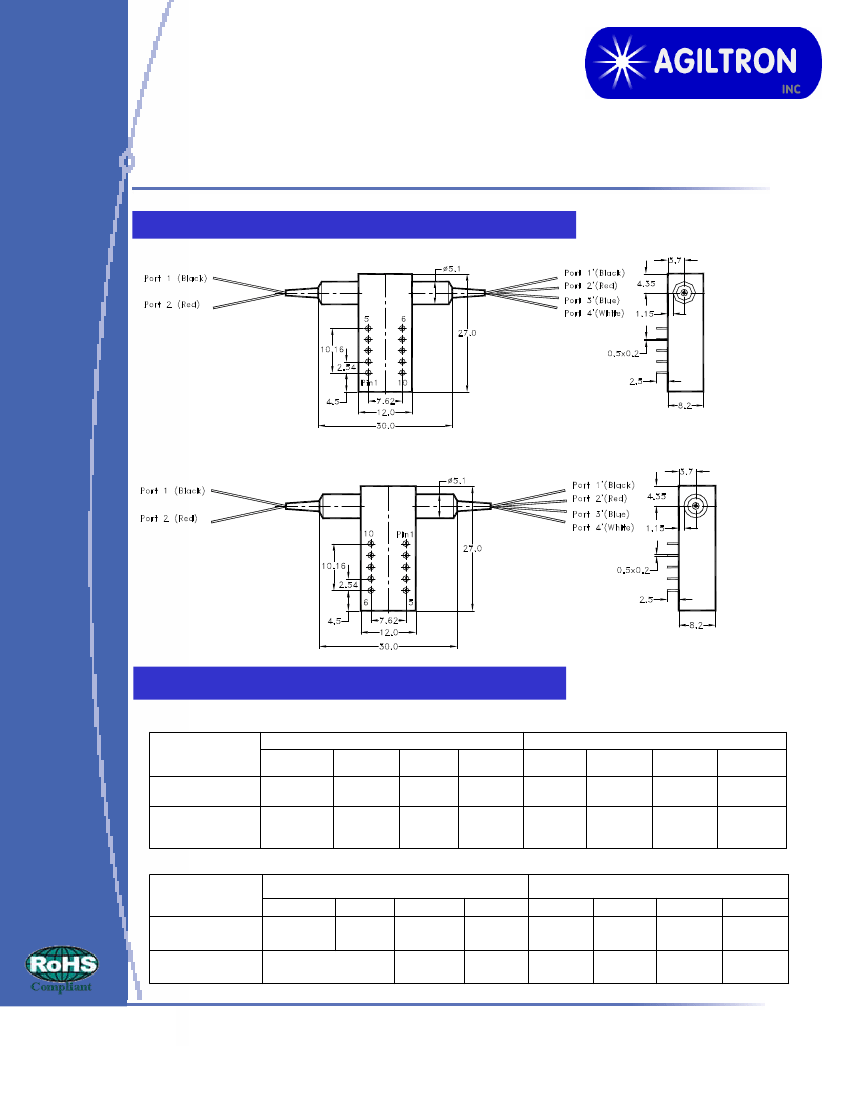

Mechanical Dimensions (Unit:mm)
Latching Type
Non-Latching Type
Electrical Connector Configurations
Latching Type – Single Coil
Electric Drive
Optic Path
Port 1
→
Port 1’
Port 2
→
Port 2’
Port 1—Port 3'
Port 2—Port 4'
Pin 1
GND
5V Pulse
Pin 10
5V Pulse
GND
Pin 5
N/A
N/A
Pin 6
N/A
N/A
Pin 2-3
Close
Open
Status Sensor
Pin 3-4
Open
Close
Pin 7-8
Open
Close
Pin 8-9
Close
Open
Non-Latching Type
Optic Path
Pin1
Port 1
→
Port 1’
Port 2
→
Port 2’
Port 1—Port 3'
Port 2—Port 4'
5V
Electric Drive
Pin10
GND
Pin5
N/A
N/A
Pin6
N/A
N/A
Pin2-3
Open
Close
Status Sensor
Pin 3-4
Close
Open
Pin 7-8
Close
Open
Pin 8-9
Open
Close
No Power
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
LightBend
TM
Dual 1x1,1x2
Single-Mode Fiberoptic Switch

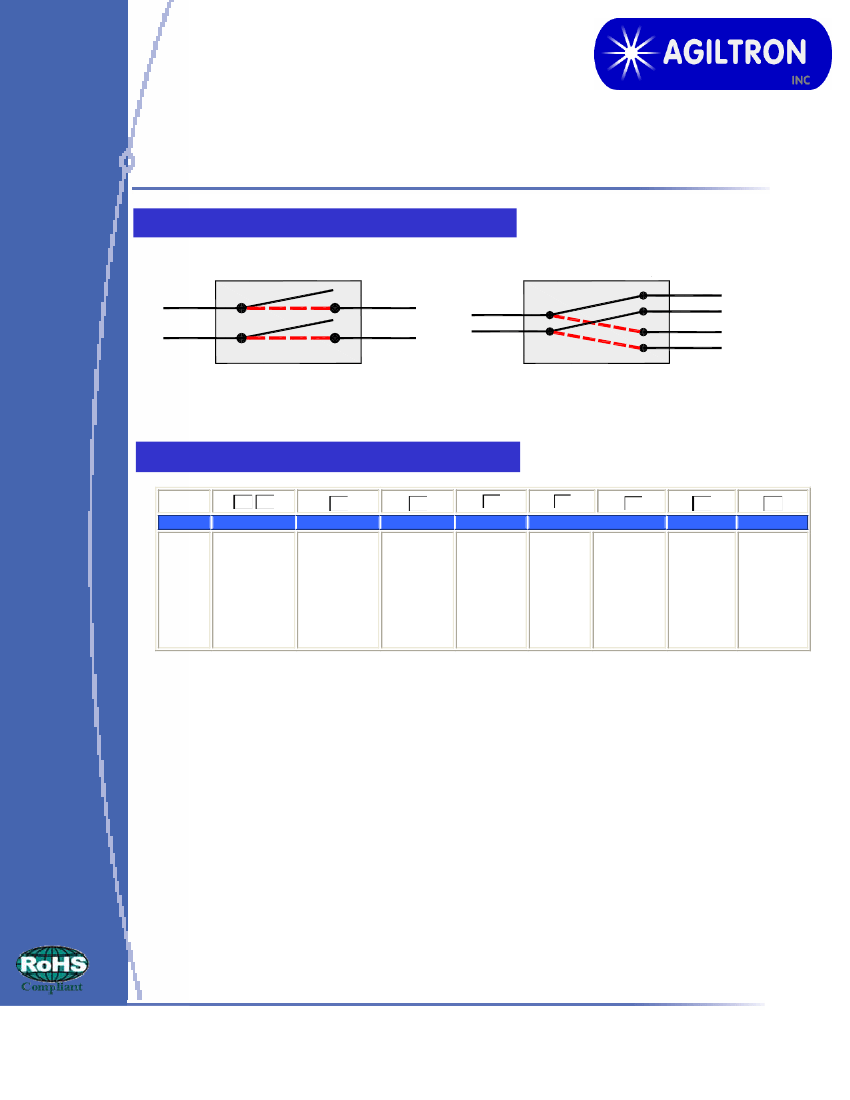

Functional Diagram
L B D u a l 1 x 1 S w it c h
L B D u a l 1 x 2 S w it c h
Ordering Information
LBDU-
Type
1x2=12
2x1=21
Special=00
Wavelength
1060=1
C+L=2
1310=3
1410=4
1550=5
650=6
780=7
850=8
1310
&
1550=9
Special=0
Switch
Package
Fiber Type
SMF-28=1
Special=0
Fiber Length Connector
Bare fiber=1
0.25m=1
900um tube=3 0.5m=2
Special=0
1.0m=3
Special=0
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Duplex LC=8
Special=0
Latching Type Standard=1
Single Coil=2
Special=0
Non-latch=3
Special=0
0 /0 / V1 /
/
/
.pdf
