LBMM-814215317

Description
Switch, 8X1 Port, LC Connector, ROHS COMPLIANT PACKAGE
CategoryWireless rf/communication    Optical fiber
File Size258KB，3 Pages
ManufacturerLaser Components USA Inc.
Environmental Compliance
Download Datasheet Parametric View All

LBMM-814215317 Overview

Switch, 8X1 Port, LC Connector, ROHS COMPLIANT PACKAGE

LBMM-814215317 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1334430106
Reach Compliance Codeunknown
Connection TypeLC CONNECTOR
Crosstalk45 dB
Fiber optic equipment typesSWITCH
Fiber type50/125, 900, MMF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating wavelength1410 nm
Port configuration8X1
minimum return loss35 dB
surface mountNO
Switch actionNON-LATCHING
switching speed3 ms

Preview

Download Datasheet
LightBend
TM
Mini 1x8 Multimode
OptoMechanical Fiberoptic Switch
(Protected
by U.S. patent 6823102 and pending patents)
Product Description
The LB Series Mini 1x8 Multimode fiber optic switch connects optical channels by
redirecting an incoming optical signal into a selected output fiber. This is achieved
by using a patent pending opto-mechanical configuration activated via an
electrical control signal. Latching operation preserves the selected optical path
after the drive signal has been removed. The switch has integrated electrical
position sensors, and the new material based advanced design significantly reduces
moving part position sensitivity, offering unprecedented high stability as well as
an unmatched low cost.
Features
•
•
•
•
•
Unmatched Low Cost
Low Optical Distortions
High Isolation
High Reliability
Epoxy-Free Optical Path
Performance Specifications
LB Series Mini 1x8 MM Switch
Operation Wavelength
Insertion Loss
1
Wavelength Dependent Loss
Polarization Dependent Loss
Return Loss
Cross Talk
Switching Time
Repeatability
Operating Voltage
Voltage Pulse Width
(Latching)
Switching Type
Operating Temperature
2
Optical Power Handling
Storage Temperature
Fiber Type

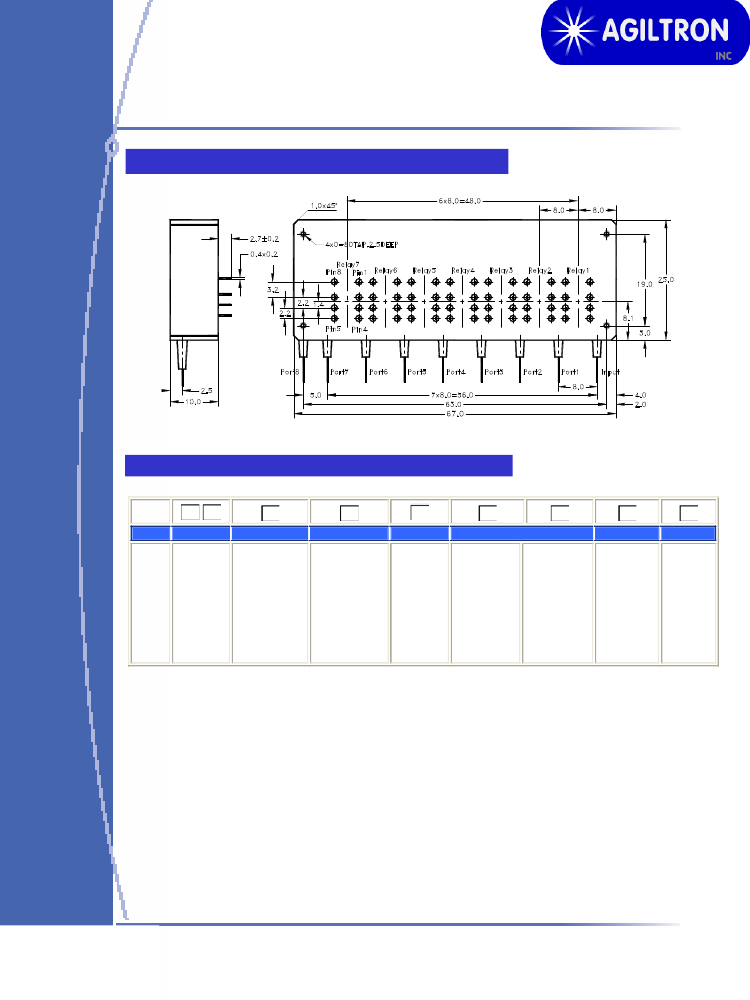

Package Dimension
Min
Typical
Max
820~880, 1260~1360, 1510~1610
0.6
1.2
0.15
0.3
0.1
0.15
35
45
3
10
±0.05
5
5
7
20
Latching / Non-Latching
-5
70
300
500
-40
85
MM50/125, MM62.5/125
67.0L x 25.0W x 10.0H
Unit
nm
dB
dB
dB
dB
dB
ms
dB
VDC
ms
C
mW
o
C
mm
o
Applications
•
•
•
•
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
Note:
1. Exclude connectors.
2. Measured using laser with coupled power ratio of categories 5 (CPR). Laser mode fill ratio need special
version.
3. -40°C to 85°C is available.
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
