M85049/20-13Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/20-13Z

M85049/20-13Z: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size96KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M85049/20-13Z Overview

Connector Accessory

M85049/20-13Z Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/20
Base Number Matches	1

Preview

Download Datasheet

View All

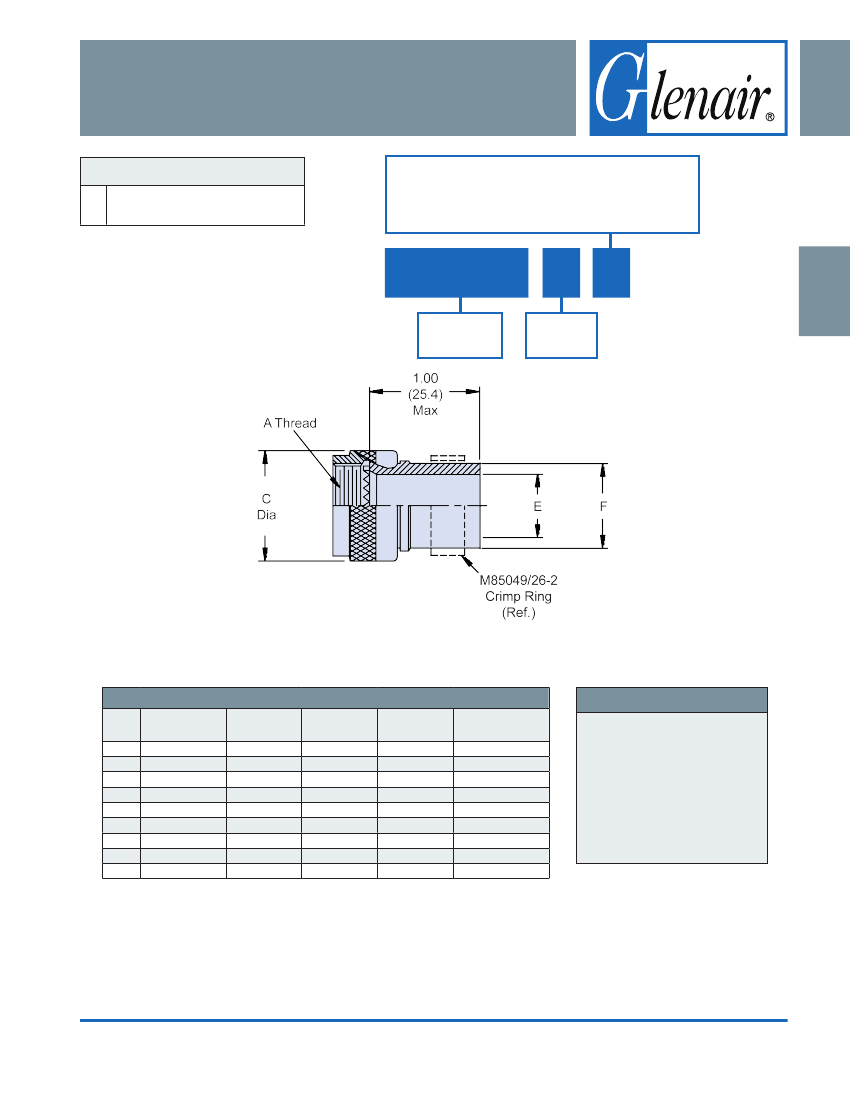

AS85049/20

Straight Crimp Ring Backshell and Crimp Ring

Finish

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel

= Aluminum, Nickel Fluorocarbon Polymer

= Aluminum, Zinc-Nickel, Black

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series III and IV

EN3645

M85049/20

Basic

Part Number

Shell Size

(Table I)

TABLE I: Shell Size, Thread, Cable Entry and Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

C Dia

Max

.750

.850

1.000

1.100

1.250

1.400

1.500

1.650

1.750

E Dia

± .015 (0.4)

F Dia

Max

M85049/26-2

Crimp Ring Ref

(19.1) .250 (6.4) .347 (8.8)

(21.6) .325 (8.3) .498 (12.6)

(25.4) .420 (10.7) .510 (13.0)

(27.9) .540 (13.7) .630 (16.0)

(31.8) .670 (17.0) .760 (19.3)

(35.6) .789 (20.0) .890 (22.6)

(38.1) .914 (23.2) 1.010 (25.7)

(41.9) 1.039 (26.4) 1.130 (28.7)

(44.5) 1.112 (28.2) 1.202 (30.5)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Entry is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-41

E-Mail: sales@glenair.com

AS85049

M85049/20-13Z Related Products

	M85049/20-13Z	M85049/20-11Z	M85049/20-11X	M85049/20-15Z	M85049/20-21Z	M85049/20-23X	M85049/20-23Z	M85049/20-25X	M85049/20-25Z
Description	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory
Maker	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/20	M85049/20	M85049/20	M85049/20	M85049/20	M85049/20	M85049/20	M85049/20	M85049/20
