LH79520N0Q000B0 datasheet, PDF

Datasheet> All Categories > semiconductor> The embedded processor and controller> LH79520N0Q000B0

LH79520N0Q000B0: DescriptionIC arm7 bluestreak mcu 176lqfp; Categorysemiconductor The embedded processor and controller; File Size145KB，2 Pages; ManufacturerSharp Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LH79520N0Q000B0 Overview

IC arm7 bluestreak mcu 176lqfp

LH79520N0Q000B0 Parametric

Parameter Name	Attribute value
Datasheets
LH79520 Brief
LH79520
Standard Package	60
Category	Integrated Circuits (ICs)
Family	Embedded - Microcontrollers
LH7
Packaging	Tray
Core Process	ARM7®
Core Size	32-Bi
Speed	77.4MHz
Connectivity	IrDA, Microwire, SPI, SSP, UART/USART
Peripherals	DMA, LCD, PWM, WDT
Number of I/O	64
Program Memory Size	-
Program Memory Type	ROMless
EEPROM Size	-
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.62 V ~ 3.6 V
Data Converters	-
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C
Package / Case	176-LQFP
Supplier Device Package	*

Preview

Download Datasheet

View All

RODUCT

NFORMATION

APPLICATIONS:

•

PDAs

•

GPS

•

Web Pads

•

Media Players

•

Test and Measurement

SHARP’s New Line

of MCUs and

System-on-Chips

LH79520 System-on-Chip

Solution for Color LCD Applications

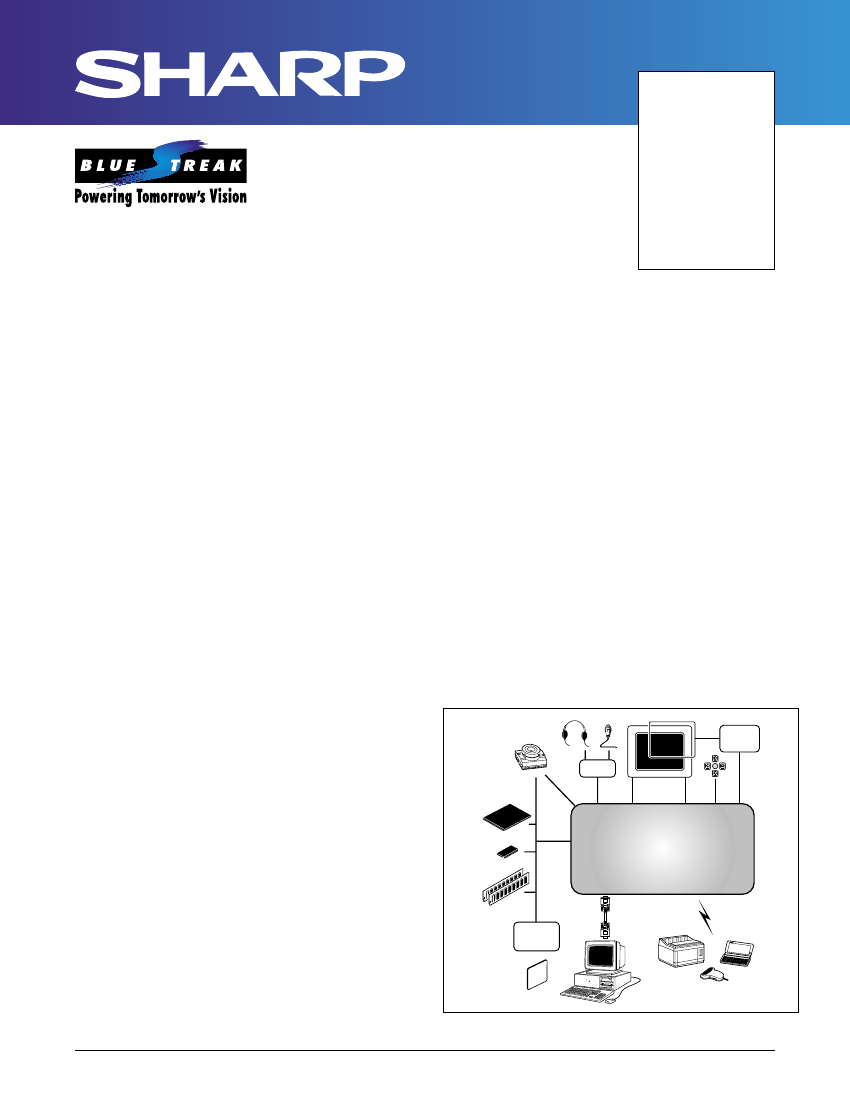

FEATURES

• ARM720T™ Core

– 32-bit ARM7TDMI™ RISC Core

– 8KB Cache

– MMU

• High Performance (77.4 MHz)

• 32KB On-Chip SRAM

• Clock and Power Management

– 32 kHz Oscillator for RTC

– 14.7 MHz Oscillator and PLL for System Clock

• Programmable Color LCD Controller

– Up to SVGA (800 × 600) 16-bit Resolution

– Up to XGA (1,024 × 768) 8-bit Resolution

– Supports STN, Color STN, AD-TFT, TFT

– Up to 64 k Colors

• Flexible External Memory Interface

– SDRAM support

– SRAM/Flash/ROM support

• DMA (four channels)

• Synchronous Serial Interface (SSI)

• Four Counter/Timers

• Two Pulse Width Modulators (PWM)

• Three UARTs with Classic IrDA

• Real Time Clock (RTC)

• Up to 64 General Purpose I/Os (5 V Tolerant)

• Programmable Vectored Interrupt Controller

• Watchdog Timer

• JTAG Debug Interface and Boundary Scan

• Low Power Modes

– Active Mode: 55 mA (MAX.)

– Standby Mode: 35 mA (MAX.)

– Sleep Mode: 5.5 mA (MAX.)

– Stop Mode: 18 µA

• Operating Voltage

– 1.8 V Core

– 3.3 V Input/Output

• Temperature

– -40°C to +85°C Industrial

• 176-pin 22 x 22 mm LQFP

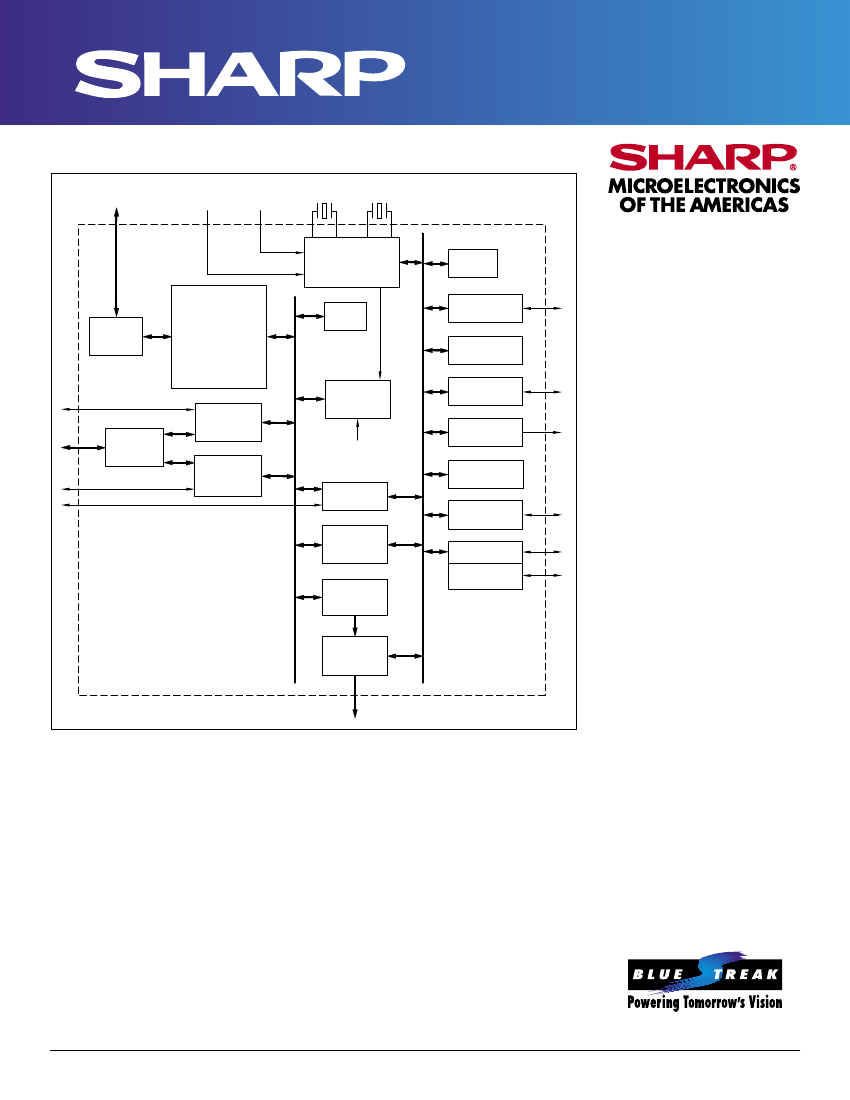

DESCRIPTION

The LH79520, powered by an ARM720T, is a complete System-

on-Chip that breaks the cost/performance barrier with a high level of

integration to satisfy a wide range of requirements and expectations. The

LH79520 combines a 32-bit ARM7TDMI RISC, 8KB Cache, MMU, color

LCD controller, and local SRAM. Also included are a number of essential

peripherals such as a DMA Controller, Serial and Parallel Interfaces, Infra-

red Support, Counter/Timers, Real Time Clock, Watchdog Timer, Pulse

Width Modulators, and an on-chip Phase Lock Loop.

This high level of integration lowers overall system cost, reduces

development cycle time and accelerates product introduction. Featuring

5 V tolerant inputs, the LH79520’s fully static design, power management

unit, low voltage operation (1.8 V Core, 3.3 V Input/Output), on-chip

PLL, and very low power RISC core provide high performance at a low

current draw.

HANDHELD PDA APPLICATION EXAMPLE

TOUCH

SCREEN

CONTR.

CODEC

IMAGER

SSP

STN/

TFT/AD-TFT

PWM

PIO

UART

DMA

FLASH/

SRAM/

SDRAM

LH79520

UART

MEMORY

CARD

INTERFACE

FLA D

CAR

79520-6
