FTX9.999MSS-10/20D datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FTX9.999MSS-10/20D

FTX9.999MSS-10/20D: DescriptionSeries - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size179KB，2 Pages; ManufacturerFronter Electronics Co., Ltd.

Download Datasheet Parametric View All

FTX9.999MSS-10/20D Overview

Series - Fundamental Quartz Crystal

FTX9.999MSS-10/20D Parametric

Parameter Name	Attribute value
Objectid	7019838907
package instruction	HC-49U/S, DIP-2
Reach Compliance Code	unknown
Other features	AT CUT; PACKAGE HEIGHT 2.5 TO 3.5 MM ALSO AVAILABLE; TR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	10 ppm
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	9.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.4XB4.8XH3.5 (mm)/L0.449XB0.189XH0.138 (inch)
Series resistance	60 Ω
surface mount	NO

Preview

Download Datasheet

View All

FRONTER ELECTRONICS CO., LTD.

深圳市福浪电子有限公司

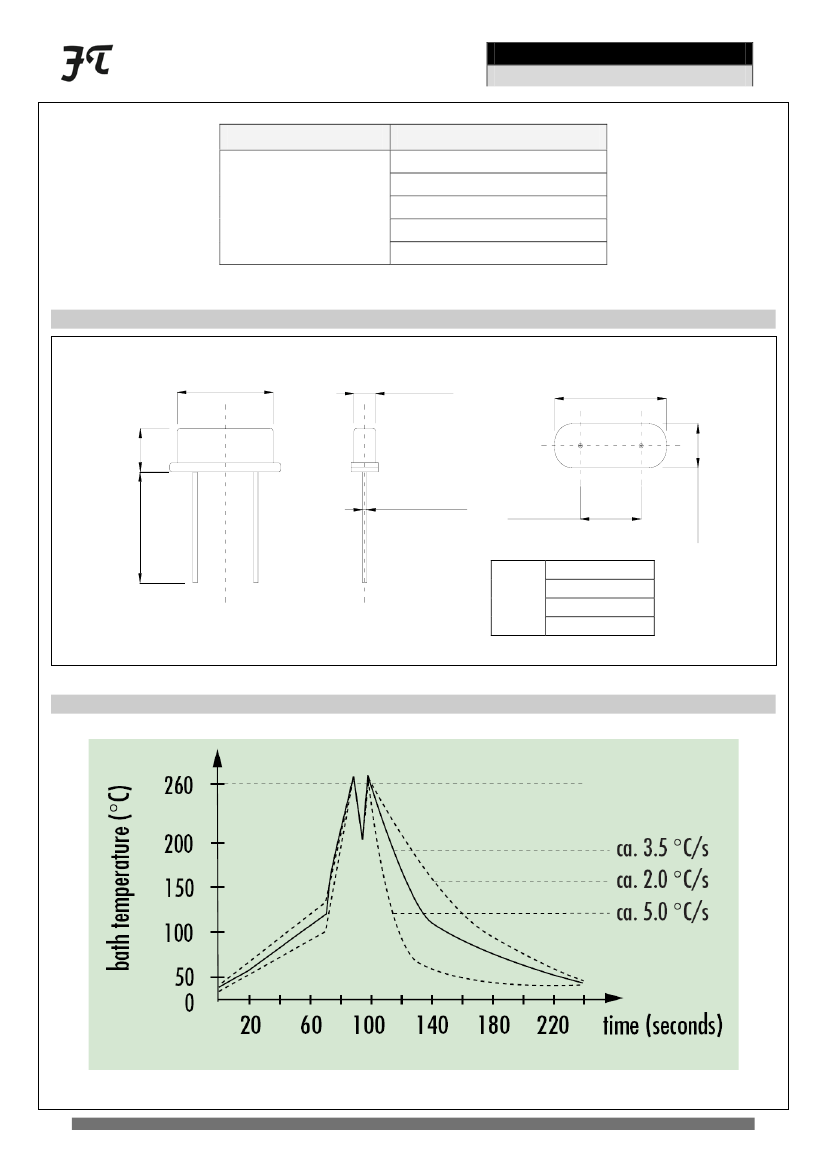

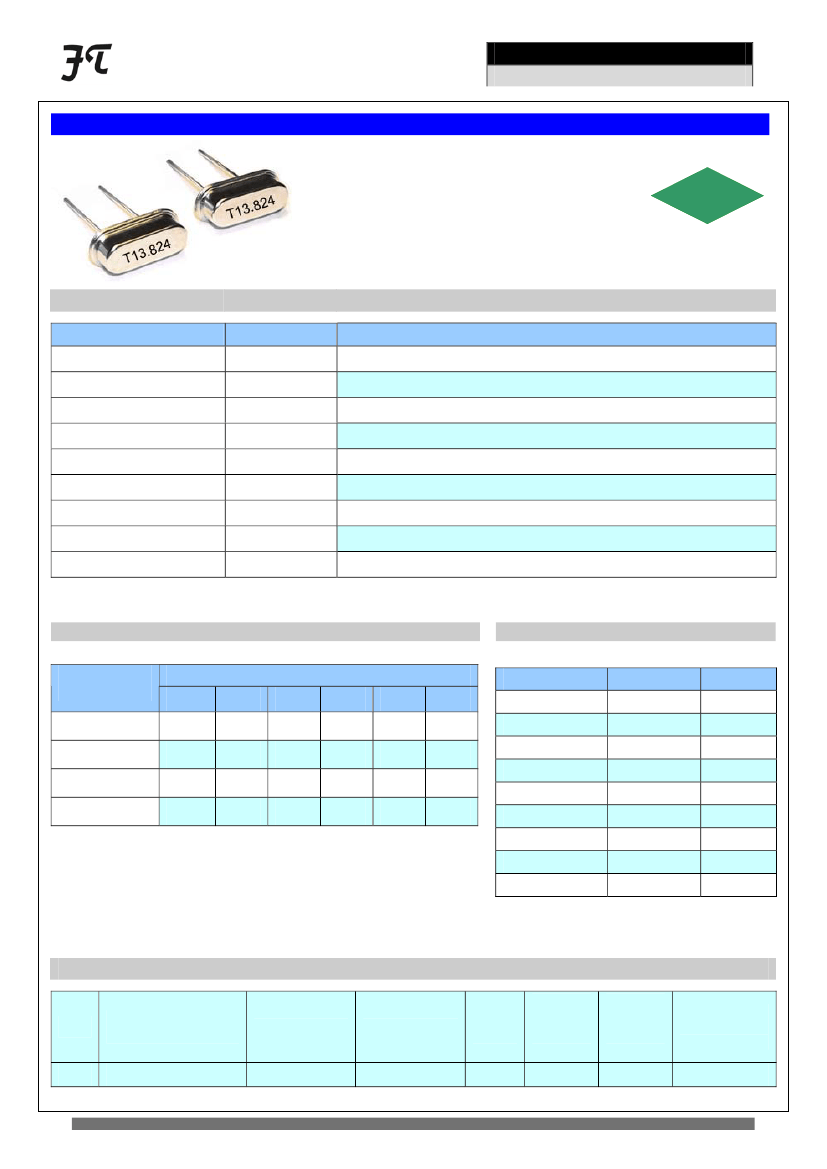

DIP QUARTZ CRYSTAL RESONATOR

Dip Crystal 11.4×4.8 mm

石英晶 ½ 谐振器

HC-49U/S

RoHS

2002/95/EC

RoHS compliant

Package Height 3.5 mm max, 2.5~3.5 mm available

Wave Soldering Temperature: 265℃ max

highly stable and reliable crystal unit with a metallic package

Taped Version Available

★

PARAMETERS

技术参数

参数

频率范围

振动模式

负½½电容

激励电平

频率偏差

谐振电阻

频率稳定性

工½温度范围

储存温度范围

SPECIFICATION

规格

3.5½100MHz

（3.5

~ 40MHz） Fundamental

（27

~ 100MHz）3rd Overtone

20pF Std.

8 to 33pF, Series available

PARAMETERS

Frequency Range

Operation Mode

Loading Capacitance

Drive Level

Frequency Tolerance

Equivalent Resistance

Frequency Stability

Operating Temp. Range:

Storage Temp. Range:

100μW（500μW max）

±10ppm

±30ppm（at 25℃）

See Below

±2.5ppm

±50ppm

+50℃ to -40

+85℃

-55

+125℃

☉All

specification subject change without notice.

规格变化，恕不另行通知

。

★

FREQUENCY STABILITY VS. TEMPERATURE

Operation

Temperature Range

0℃~+50℃

-10℃~+60℃

-20℃~+70℃

-40℃~+85℃

±2.5ppm

○

±5ppm

○

频率温度特性

★

ESR（SERIES RESISTANCE RS）

Frequency

Vibration Mode

AT CUT/FUND.

AT 3rd /OT

ESR

150Ω (max)

120Ω (max)

100Ω (max)

80Ω (max)

60Ω (max)

50Ω (max)

40Ω (max)

30Ω (max)

100Ω (max)

Frequency Stability

±10ppm

○

±20ppm

●

○

±30ppm

○

●

○

±50ppm

○

●

3.2-3.999MHz

4.000-4.499MHz

4.500-5.999MHz

6.000-7.999MHz

8.000-9.999MHz

10.000-11.999MHz

12.000-13.999MHz

14.000-40.000MHz

27.000-100MHz

●

standard

○

available

★

PART NUMBER GUIDE

部件号示例

Frequency

频率

16.000M

e.g. FTX16.000M20S-30/30B (*S=HC49/S TYPE)

Load Capacitance

负½½电容

Frequency

Tolerance

常温频差

ppm

Frequency

Stability

温度频差

ppm

Operating Temp.

Range

工½温度

Logo

Quartz Crystal Resonator

石英晶½谐振器

Package

盒型

Address:Rm 1112-1117., Xinian Center. NO. 6021, Shennan Rd. Shenzhen Gaungdong 518040, China Tel:(86)755-83458718 Fax: (86)755-83459818 E-mial: sales@chinafronter.com
