BXO9305

Description
VCO, 200 MHz - 400 MHz
CategoryPassive components    oscillator
File Size188KB,3 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric View All

BXO9305 Overview

VCO, 200 MHz - 400 MHz

BXO9305 Parametric

Parameter NameAttribute value
MakerSpectrum Microwave
Reach Compliance Codeunknown
Maximum control voltage20 V
Minimum control voltage
Modulation sensitivity16.5 MHz/V
Installation featuresCHASSIS MOUNT
offset frequency100 kHz
Maximum operating frequency400 MHz
Minimum operating frequency200 MHz
Oscillator typeVOLTAGE CONTROLLED OSCILLATOR
Output Power12.4 dBm
phase noise-120 dBc/Hz
physical size25.4mm x 20.828mm x 12.7mm
Nominal supply voltage15 V
surface mountNO
Base Number Matches1
BXO9305 / SXO9305 VCO Performance Datasheet
Cross Reference Guide
BXO9305 / SXO9305*
* Part number for additional environmental screening.
Performance Data
Frequency
P
1dB
Harmonics
Phase Noise @ 100 kHz
Power Supply
Tuning Voltage
200.0 - 400.0 MHz
12.5 dBm Typical
10.0 dBm Min
-30.0 dBC Typical
-17.0 dBC Max
-120.0 dBC/Hz Typical
15.0 Volts
14.0 mA
0.0 - 20.0 V

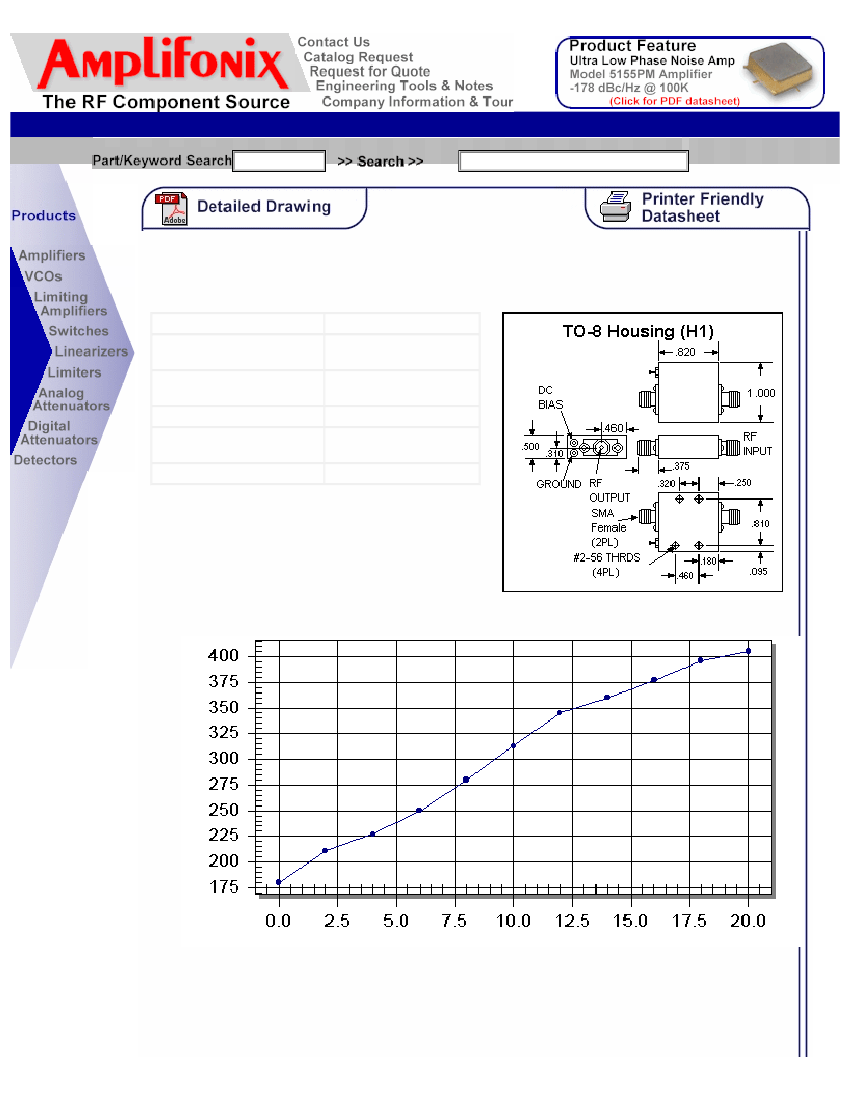

Package Drawing
Frequency
MHz
Tuning Voltage (V)
P
1dB
Compression Point
http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9305&Pack=H1 (1 of 2) [1/25/2005 10:16:14 AM]
