636246-9
-- 1 of 1 products
Superseded
Superseded
Click here for replacement part information
(Tyco Electronics P/N: 636246-9)
Sales
Information
Related Documents
Pricing
Step Search
Screen
General
Information
Product Availability
Please use the customer drawing for all design activity.
s
Customer Drawing: 636246,
Rev. E

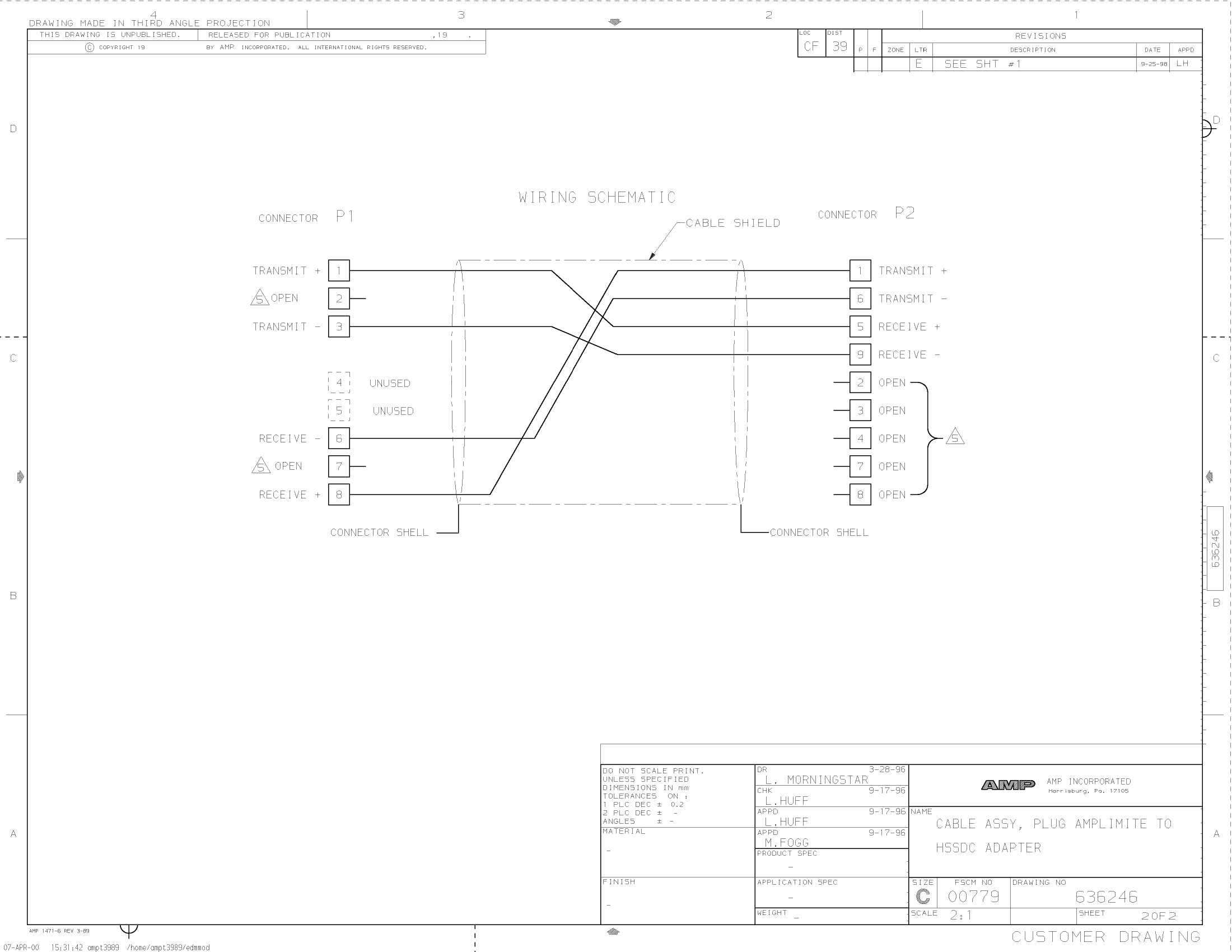

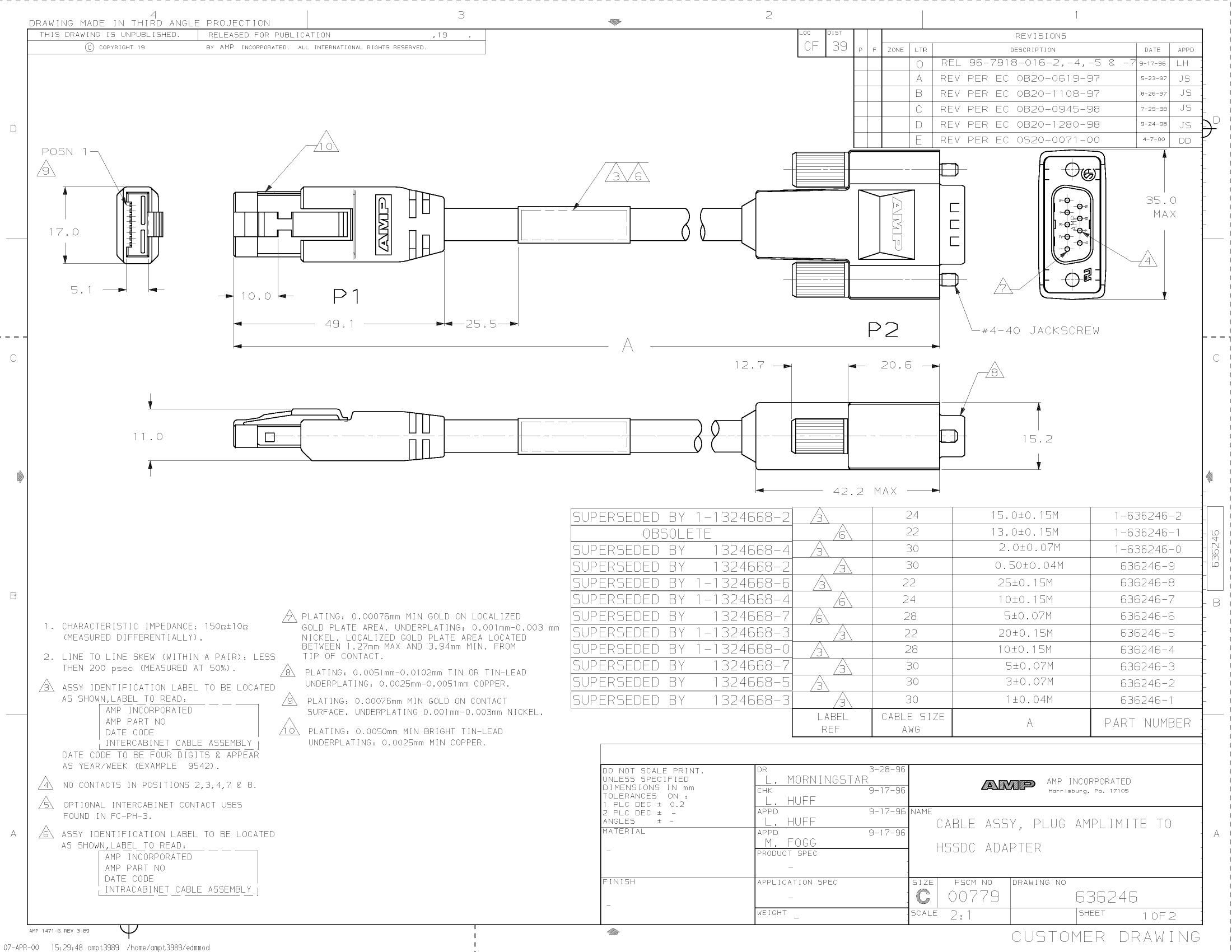

Document Title: CABLE ASSY, PLUG AMPLIMITE TO HSSDC ADAPTER
207446.pdf
207446.pdf
(103K)
The photographs and/or line drawings below are representative images of a product for
viewing purposes only.
Product Photo
Searchable Features:
Brand:
Cable Assembly Type:
Application:
Single Ended:
No. of Positions:
Length (M [ft]):
AMP
Adapter
Fibre Channel, High Speed
Serial Data
No
8 Position HSSDC to DB-9
With 4 Pins
0.50 [1.64]
Comment:
Other Properties:
Mounting Bracket(s):
Contact Mating Area
Plating:
Shielded:
Jackscrew:
Twisted Pairs:
Impedance (Ω):
Without
Gold (30) over Nickel
Yes
Yes
No
150
Cable assembly is
suitable for Inter- and
Intra-Cabinet applications.
Wire Size (mm² [AWG]):
30
Assembly Type:
Equalized:
Offset:
AMPLIMITE DB-9 Plug to
HSSDC
No
No
