EURO
QUARTZ
Low Power Precision CMOS
Features
Frequency Range 1.0 to 150MHz
Frequency Stability ±10, ±25 or ±50ppm
Operating Voltage: 1.7V to 3.6V
Operating Temperature Range
Commercial: 0° to +70°C
Ext. Commercial: -20 to +70°C
Industrial: -40° to +85°C
Ext. Industrial: -40° to +105°C
Low Operating and Standby Current
5mA operating (40MHz)
15µA Standby
Ultra-Miniature Footprint
2.5 x 2.0 x 0.85mm
3.2 x 2.5 x 0.85mm
5.0 x 3.2 x 0.85mm
7.0 x 5.0 x 0.85mm
MIL-STD 883 Shock & Vibration Resistant
Pb free, RoHS, REACH SVHC Compliant
ISO9001 (2008) Qualified
EMEM1001- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 1 of 5
Description
The Euroquartz EMEM1001 oscillator range are MEMS (Micro Electro-
Mechanical System) devices offering excellent jitter and stability
performance over a wide range of supply voltages and temperature
ranges (up to -40° to +105°C). EMEM1001 parts incorporate an all-
silicon resonator that is robust and perfoms well in high shock and
vibration environments.
EMEM1001 oscillators are available in four, industry-standard SMD
packages: 7 x 5mm, 5 x 3.2mm, 3.2 x 2.5mm and 2.5 x 2.0mm. The
part may be 'dropped in' to most PCB footprints as standard crystal
oscillators.
Electrical Specifications
VDD = 1.8V
Parameter
Supply Current
No load
Output Transition time
Rise Time
Fall Time
Jitter, max cyle to cycle
Symbol
Condition
C
L
= 0p
R
L
=
∞
T = 25°C
1MHz
27MHz
70MHz
150MHz
Min.
Typ.
6.0
6.5
7.2
8.3
1.0
0.9
60
Max.
6.3
6.9
7.5
9.1
3
3
Unit
I
DD
mA
t
R
t
F
J
CC
C
L
= 15pF; T = 25°C
20%/80%*V
DD
F = 100MHz
3
ns
ps
VDD = 2.5V
Parameter
Supply Current
No load
Symbol
Condition
C
L
= 0p
R
L
=
∞
T = 25°C
1MHz
27MHz
70MHz
150MHz
Min.
Typ.
6.0
6.7
7.7
9.6
1.0
0.9
50
Max.
6.3
7.0
8.0
10.6
2
2
Unit
I
DD
mA
Output Transition time
Rise Time
t
R
Fall Time
t
F
Jitter, max cyle to cycle
J
CC
C
L
= 15pF; T = 25°C
20%/80%*V
DD
F = 100MHz
3
ns
ps
VDD = 3.3V
Parameter
Supply Current
No load
Output Transition time
Rise Time
Fall Time
Jitter, max cyle to cycle
Symbol
Condition
C
L
= 0p
R
L
=
∞
T = 25°C
1MHz
27MHz
70MHz
150MHz
Min.
Typ.
6.0
6.8
8.2
10.8
1.0
0.9
50
Max.
6.3
7.2
8.7
12.0
2
2
Unit
Notes:
1. Absolute maximum ratings are those
values beyond which the safety of the
device cannot be guaranteed. The
device should not be operated beyond
these limits.
2. t
SU
is time to stable frequency output
after VDD is applied. t
SU
and t
EN
(after
EN is asserted) are identical values.
3. Measured over 50k clock cycles.
I
DD
mA
t
R
t
F
J
CC
C
L
= 15pF; T = 25°C
20%/80%*V
DD
F = 100MHz
3
ns
ps
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
Low Power Precision CMOS
A
EMEM1001- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 2 of 5
Specifications (VDD = 1.8 to 3.3V T = 85° unless otherwise specified)
Parameter
Frequency
Frequency Tolerance
Symbol
f0
∆f
Ageing
Supply Current, Standby
Output Logic Levels
Output Logic High
Output Logic Low
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input Logic High
Input Logic Low
∆f
I
DD
V
OH
V
OL
T
SU
T
DA
SYM
V
IH
V
IL
Condition
Single frequency
Includes frequency
variations due to initial
tolerance, temperature
and power supply voltage
1 year @25°C
T=25°C
-4mA
4mA
T=25°C
45
0.75*V
DD
Min.
1
Typ.
Max.
150
±10, ±25, ±50
±5
15
Unit
MHz
ppm
ppm
µA
Volts
ms
ns
%
Volts
0.25*V
DD
0.8*V
DD
1.0
20
0.2*V
DD
1.3
100
55
Absolute Maximum Ratings
Item
Input Voltage
Junction Temp.
Storage Temp.
Soldering
Temp.
ESD
HBM
MM
CDM
Min.
-0.3
-
-55
-
Max.
VDD+0.3
+150
+150
+260
4000
200
1500
Unit
V
°C
°C
°C
40 sec. max.
Condition
Standby Function
Standby#
(Pin 1)
High Level
Open
(not connected)
Low Level
Output
(Pin 3)
Output ON
Output ON
High Impedance
-
V
Ordering Code
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Option 4
Symbol
VDD
ZL
Range
1.7 ~3.6V
R>10kΩ,
C≤15pF
-40 to +105°C
-40 to +85°C
-20 to +70°C
0 to + 60°C
Example:
EMEM1001
Family
CE1
-
123.000
T
Package, Temp.,
& Stability
Output Freq.
1.0 to 150MHz
Blank = tubes
T = Tape & Reel
T
Ordering Information
Package
(Plastic QFN)
P=A: 7.0 x 5.0mm
P=B: 5.0 x 3.2mm
P=C: 3.2 x 2.5mm
P=D: 2.5 x 2.0mm
Temperature
T=C: 0° ~ +70°C
T=E:-20° ~ +70°C
T=I:-40° ~ +85°C
T=L:-40° ~ +105°C
Stability
S=1: ±50ppm
S=2: ±25ppm
S=3: ±10ppm
Frequency
Packing
Option
Blank: Tubes
T: Tape & Reel
XXX.XXX
Order in the form:
EMEM1001PTS-FREQUENCY-SUPPLY FORMAT
Example:
EMEM1001CE1-123.000T
This is an 123.000MHz Oscillator in a plastic 3.2 x 2.5mm package;
stability ±50ppm over -20° to +70°C, shipped in tape and reel.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
Low Power Precision CMOS

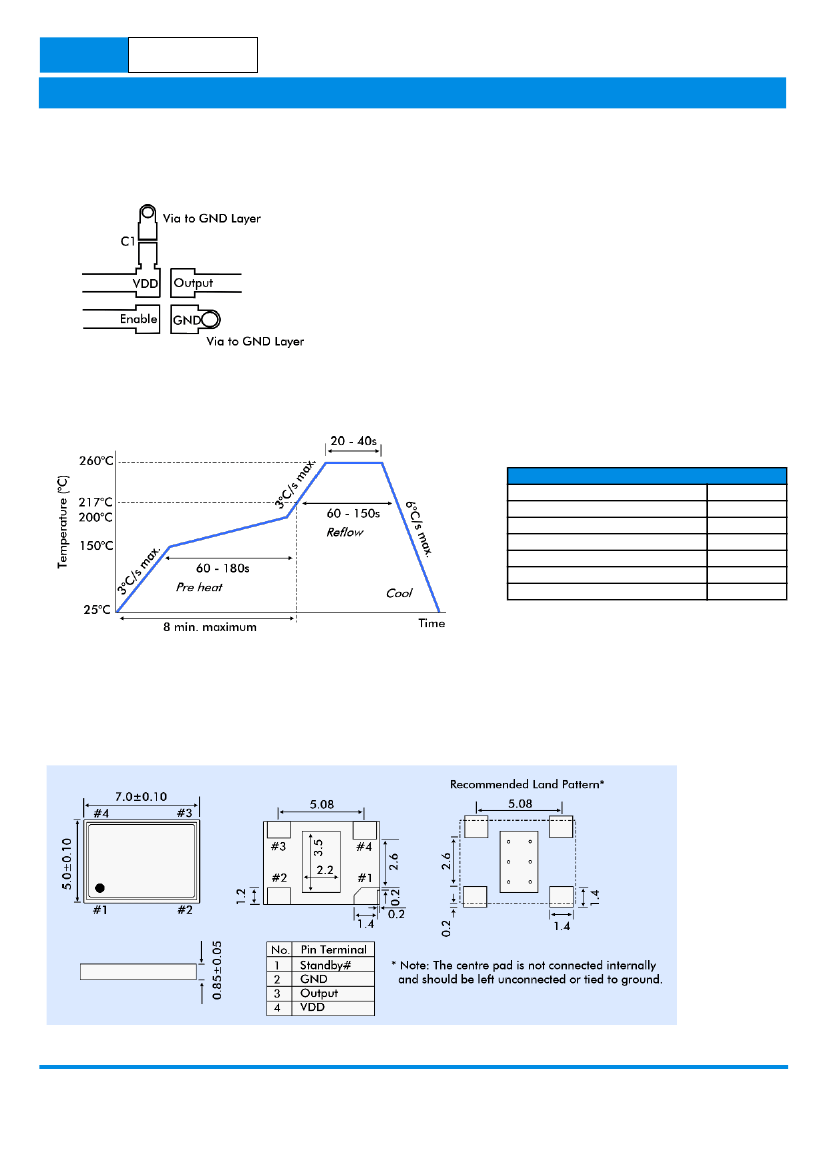

Board Layout (Recommended)
EMEM1001- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 4 of 5
Solder Reflow Profile
MSL1 @ 260°C refer to JSTD-020C
Ramp-up Rate (200°C to Peak Temp.) 3°C/s max.
Preheat Time 150°C to 200°C
60-180s
Time maintained above 217°C
60-150s
Peak Temperature
255-260°C
Time within 5°C of actual peak
20-40s
Ramp-Down Rate
6°C/s max.
Time 25°C to Peak Temperature
8 min max.
PACKAGE DIMENSIONS
7.0 x 5.0mm Plastic Package
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
Low Power Precision CMOS

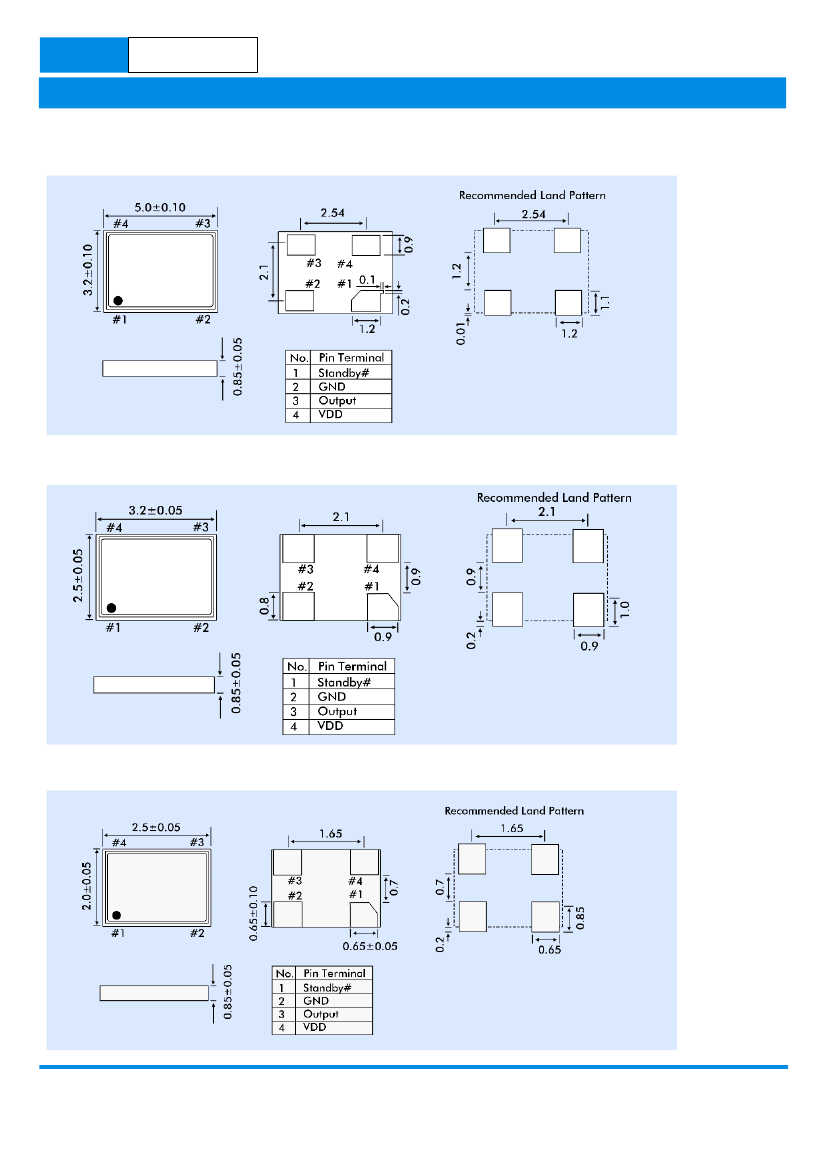

5.0 x 3.2mm Plastic Package
EMEM1001- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 5 of 5
3.2 x 2.5mm Plastic Package
2.5 x 2.0mm Plastic Package
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
