Features
Frequency Range 1.0MHz to 150MHz
Frequency Stability ±20, ±25 or ±50ppm
Operating Voltage: 1.71V to 3.60V
Operating Temperature Range
Ext. Commercial: -20 to +70°C
Industrial: -40° to +85°C
Ext. Industrial: -40° to +105°C
Operating and Standby Current
8mA operating (40MHz)
15µA Standby
Ultra-Miniature Footprint
2.5 x 2.0 x 0.85mm
3.2 x 2.5 x 0.85mm
5.0 x 3.2 x 0.85mm
7.0 x 5.0 x 0.85mm
Excellent Shock & Vibration Resistance
Pb free, RoHS, REACH SVHC Compliant
ISO9001 (2008) Qualified
EMEM8004 - MEMS OSCILLATOR
Page 1 of 5
Programmable Low Power Precision CMOS 1.0MHz to 150.0MHz
Description
The Euroquartz EMEM8004 oscillator range are programmable MEMS
(Micro Electro-Mechanical System) devices offering excellent jitter and
stability performance over a wide range of supply voltages and
temperature ranges (up to -40° to +105°C). EMEM8004 parts
incorporate an all-silicon resonator that is robust and perfoms well in
high shock and vibration environments.
EMEM8004 oscillators are available in four, industry-standard SMD
packages: 7 x 5mm, 5 x 3.2mm, 3.2 x 2.5mm and 2.5 x 2.0mm. The
part may be 'dropped in' to most PCB footprints as standard crystal
oscillators. THe EMEM8004 oscillators have the same functionality as
EMEM8001 parts but with a greater output drive (C
L
= 40pF)
The programmable EMEM8004 series are available on very short
leadtimes.
Electrical Specifications
Parameter
Frequency
Frequency Tolerance
Symbol
f
0
∆f
Condition
Single frequency
Includes frequency
variations due to initial
tolerance, temperature
and power supply voltage.
1 year @ 25°
T = 25°C
T = 25°C
45
0.75*V
DD
1.0
20
Min.
1
Typ.
Max.
150
±10, ±25 & ±50
Unit
MHz
ppm
Ageing
Supply Current, Standby
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input Logic High
Input Logic Low
∆f
I
DD
T
SU
T
DA
SYM
V
IH
V
IL
±5
15
1.3
100
55
ppm
µA
ms
ns
%
Volts
0.25*V
DD
1.
2.
3.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed.
The device should not be operated beyond these limits.
Output frequency to within 100ppm of final stable output frequency.
See typical cycle to cycle jitter graph for frequency dependence.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
Absolute Maximum Ratings
Item
Supply Voltage
Input Voltage
Junction Temp.
Storage Temp.
Soldering Temp.
ESD
HBM
MM
CDM
Min.
-0.3
-0.3
-
-55
-
-
Max.
+4.0
VDD+0.3
+150
+150
+260
4000
200
1500
Unit
V
V
°C
°C
°C
V
40 sec. max.
Condition
EMEM8004 - MEMS OSCILLATOR
Page 2 of 5
Standby Function
Standby#
(Pin 1)
High Level
Open
(not connected)
Low Level
Output
(Pin 3)
Output ON
Output ON
High Impedance
Programmable Low Power Precision CMOS 1.0MHz to 150.0MHz
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Symbol
V
DD
Z
L
Range
1.71 ~3.60V
R>10kΩ,
C≤40pF
-40 to +105°C
-40 to +85°C
-20 to +70°C
T
Ordering Information
Package
(Plastic QFN)
P=A: 7.0 x 5.0mm
P=B: 5.0 x 3.2mm
P=C: 3.2 x 2.5mm
P=D: 2.5 x 2.0mm
Temperature
T=E:-20° ~ +70°C
T=I:-40° ~ +85°C
T=L:-40° ~ +105°C
Stability
S=1: ±50ppm
S=2: ±25ppm
S=3: ±10ppm
Frequency
Packing
Option
Blank: Tubes
T: Tape & Reel
XXX.XXX
Order in the form:
EMEM8004PTS-FREQUENCY-SUPPLY FORMAT
Example:
EMEM8004CE1-123.000T
This is an 123.000MHz Oscillator in a plastic 3.2 x 2.5mm package;
stability ±50ppm over -20° to +70°C, shipped in tape and reel.
Ordering Code
Example:
EMEM8004
CE1
-
123.000
T
Family
Package, Temp.,
& Stability
Blank = tubes
T = Tape & Reel
Output Frequency
1.0 to 150MHz
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ

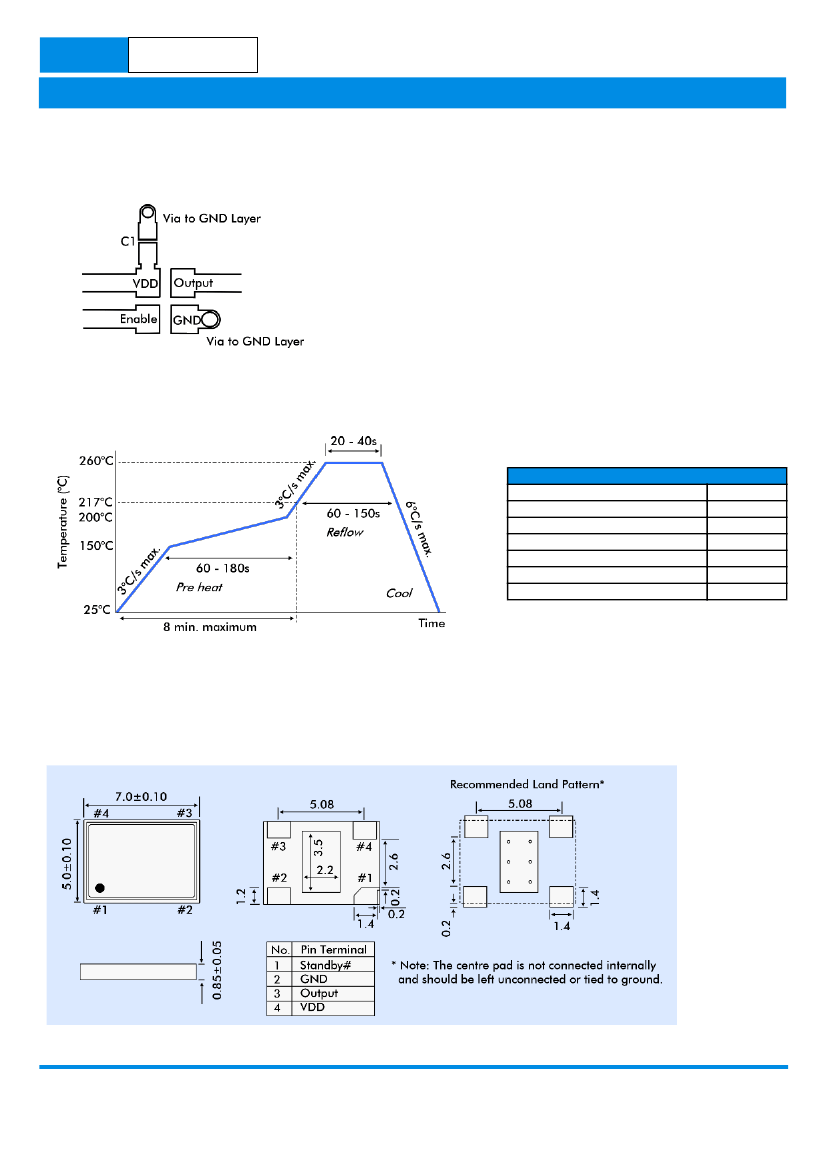

Board Layout (Recommended)
EMEM8004 - MEMS OSCILLATOR
Page 4 of 5
Programmable Low Power Precision CMOS 1.0MHz to 150.0MHz
Solder Reflow Profile
MSL1 @ 260°C refer to JSTD-020C
Ramp-up Rate (200°C to Peak Temp.) 3°C/s max.
Preheat Time 150°C to 200°C
60-180s
Time maintained above 217°C
60-150s
Peak Temperature
255-260°C
Time within 5°C of actual peak
20-40s
Ramp-Down Rate
6°C/s max.
Time 25°C to Peak Temperature
8 min max.
PACKAGE DIMENSIONS
7.0 x 5.0mm Plastic Package
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ

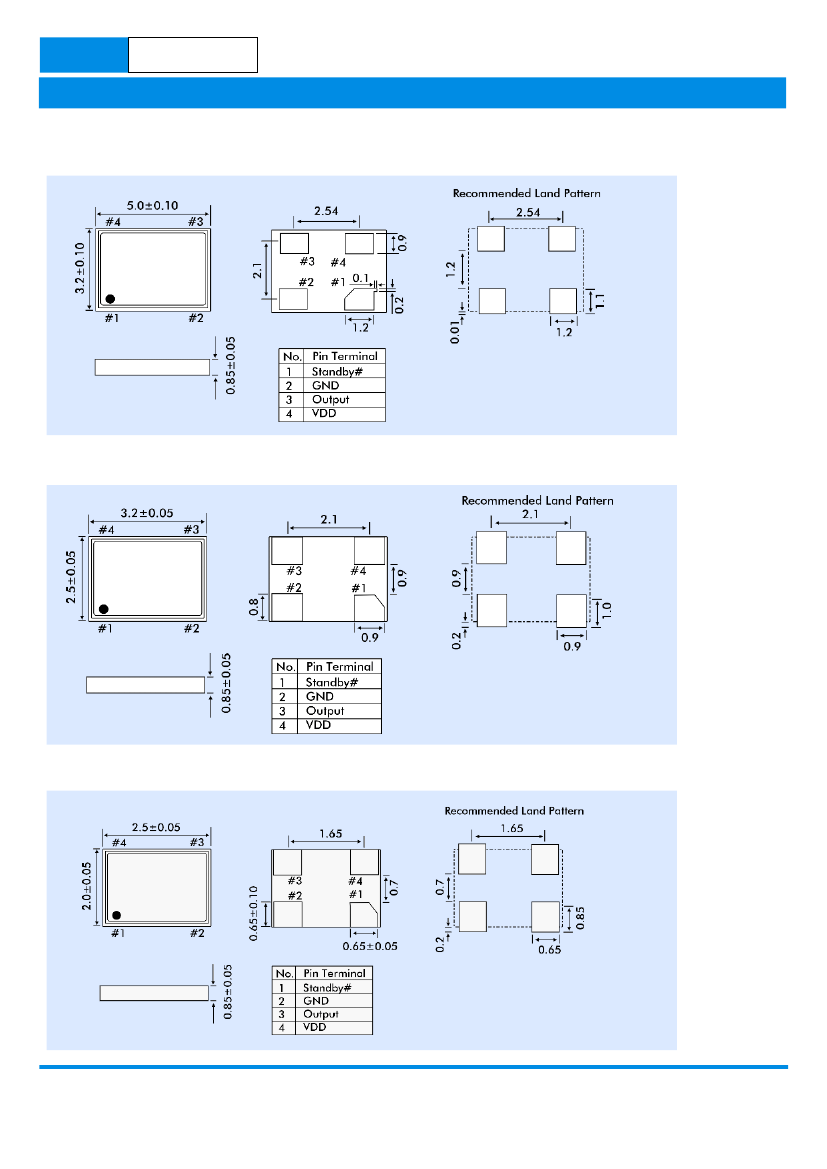

5.0 x 3.2mm Plastic Package
EMEM8004 - MEMS OSCILLATOR
Page 5 of 5
Programmable Low Power Precision CMOS 1.0MHz to 150.0MHz
3.2 x 2.5mm Plastic Package
2.5 x 2.0mm Plastic Package
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
