NRBX6R8M350V10X16F3F

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 6.8uF,
CategoryPassive components    capacitor
File Size125KB,5 Pages
ManufacturerNIC Components Corp
Environmental Compliance
Download Datasheet Parametric View All

NRBX6R8M350V10X16F3F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 6.8uF,

NRBX6R8M350V10X16F3F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid831338991
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance6.8 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter10 mm
dielectric materialsALUMINUM (WET)
ESR48790 mΩ
length16 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)350 V
ripple current220 mA
Terminal pitch7.5 mm

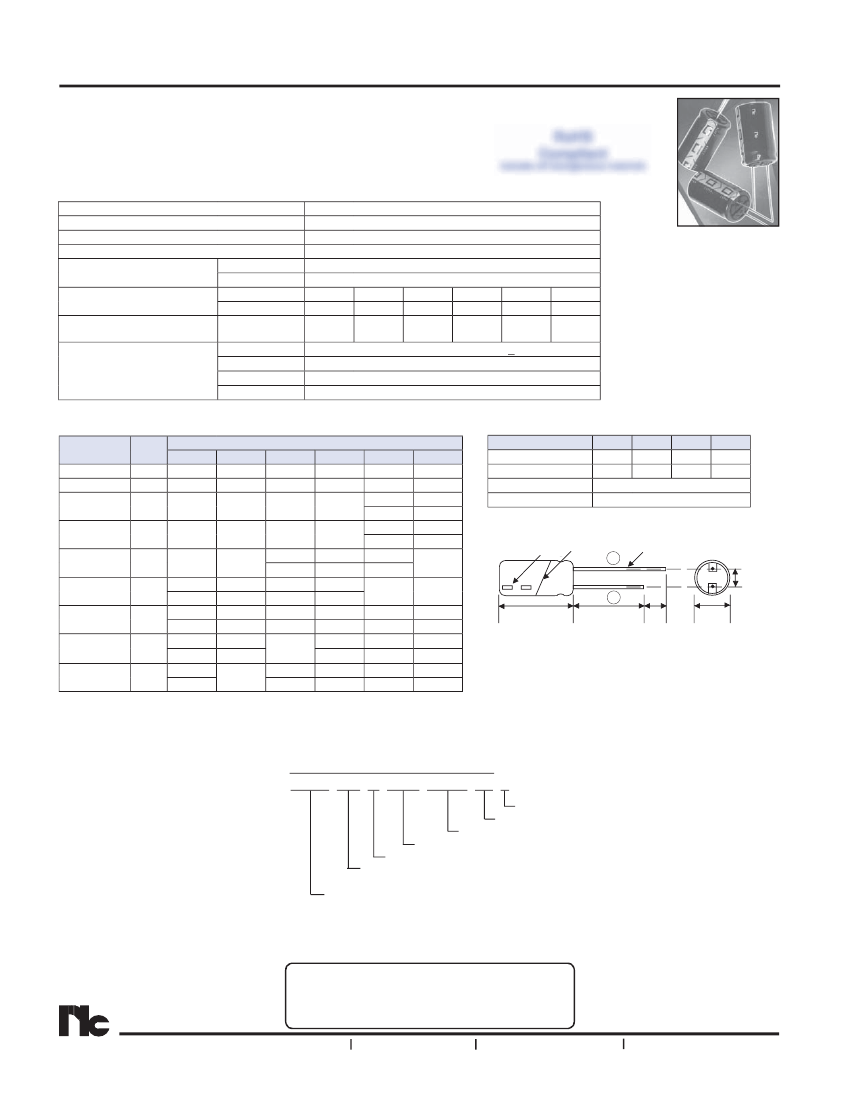

Miniature Aluminum Electrolytic Capacitors
HIGH TEMPERATURE, EXTENDED LOAD LIFE, RADIAL LEADS, POLARIZED
FEATURES
RoHS
• IMPROVED ENDURANCE AT HIGH TEMPERATURE
Compliant
(up to 12,000HRS @ 105°C)
includes all homogeneous materials
• IDEAL FOR HIGH VOLTAGE LIGHTING BALLAST
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
After 1 min.
Maximum Leakage Current
@ 20°C
After 5 min.
W.V. (Vdc)
Max. Tan
δ
@120Hz/20°C
Low Temperature Stability
Z-25°C/Z+20°C
Impedance Ratio @ 120Hz
Duration
Load Life Test at Rated Volt-
Δ
Capacitance
age
Δ
Tan
δ
@ 105°C
Δ
LC
160 ~ 450VDC
6.8 ~ 220μF
-25°C ~ +105°C
±20% (M)
0.04CV +100μA
0.02CV +25μA
250
350
0.15
0.20
3
6
NRBX Series
*See Part Number System for Details
P N b S
f D il
160
0.15
3
200
0.15
3
400
0.20
6
450
0.20
6
φ
D = 10mm: 10,000 hours,
φ
D = 12.5>: 12,000 hours
Within ±20% of initial measured value
Less than 200% of specified value
Less than specified value
STANDARD PRODUCT AND CASE SIZE TABLE Dφ x L (mm)
Capacitance
Code
(μF)
6.8
6R8
10
100
22
33
47
68
100
150
220
220
330
470
680
101
151
221
160
-
10x16
10x20
10x20
12.5x20
12.5x25
16x20
16x25
18x20
16x31.5
18x25
16x31.5
18x25
Working Voltage (Vdc)
200
250
350
400
450
-
-
10x16
10x16
10x20
10x16
10x20
10x20
10x20 12.5x20
12.5x25 16x25
10x20 12.5x20 12.5x20
16x20
18x20
16x25 16x31.5
12.5x20 12.5x20 16x20
18x20
18x25
12.5x25 16x25 16x31.5
18x31.5
12.5x20
16x20
18x20
18x25
12.5x25 16x25 16x31.5
18x31.5
-
16x20
18x20
18x25
16x25 16x31.5
-
-
-
18x20
18x25
-
-
-
16x31.5
-
-
-
18x31.5
18x25
-
-
-
-
-
-
-
18x31.5
-
-
-
-
LEAD SPACING AND DIAMETER (mm)
Case Dia. (Dφ)
Lead Dia. (dφ)
Lead Spacing (F)
Dim.
α
Dim.
β
10
0.6
5.0
12.5
0.6
5.0
0.5
2.0
16
0.8
7.5
18
0.8
7.5
DIMENSIONS (mm)
Polarity Marking
Insulation Sleeve
+
dφ ± 0.05
F ± 0.5
-
L +
β
max.
15mm Min.
4mm
Min.
Dφ ±
α
Drawing is representative of parts as supplied in bulk or
straight lead format, please see taping specification for details
on taped format packaging.
PART NUMBER SYSTEM
NRBX 100 M 200V 10X16 TB F
.
RoHS Compliant
TB = Tape & Box*
Case Size (Dφ x L)
Working Voltage (Vdc)
Tolerance Code (M=20%)
Capacitance Code: First 2 characters
significant, third character is multiplier
Series
*see taping specifications for details
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
154
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
