EURO
QUARTZ
Miniature 7.0 x 5.0 x 1.4mm hermetically-sealed package
Frequency Range 500kHz to 125MHz
Tristate (Enable/Disable) function as standard
Supply voltage range 1.8, 2.5, 3.3 or 5.0 Volts
XO91 Series Oscillators
7 x 5mm SMD HCMOS
Page 1 of 2

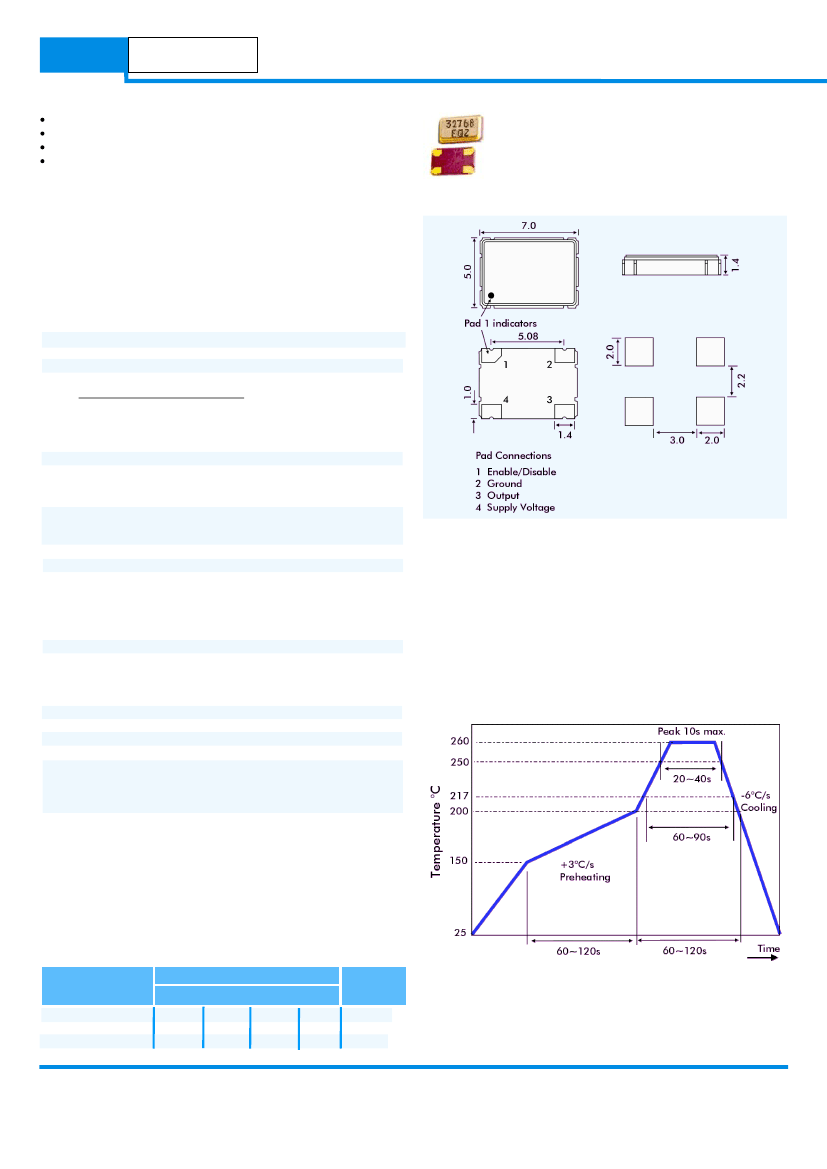

OUTLINE & DIMENSIONS
DESCRIPTION
XO91miniature oscillators consist of a TTL/CMOS-compatible hybrid
circuit together with a miniature quartz crystal packaged in a low-
profile, industry-standard ceramic package. The high quality design
and materials employed provide a highly reliable clock oscillator in a
miniature package while mass production methods ensure that the
XO91 provides a cost-effective oscillator solution.
SPECIFICATION
Frequency Range:
Supply Voltage:
Output Logic:
Frequency Stability*
Temperature Range
0° to +50°C:
-20° to +70°C:
-40 to +85°C:
-55° to +125°C:
Rise/Fall Time:
Output Voltage:
HIGH ‘1’:
LOW ‘0’:
Output Load
CMOS:
TTL:
Duty Cycle:
Supply Current:
Operating Temperature
500kHz to 125.0MHz
1.8, 2.5, 3.3 or 5.0 Volts ±10%
HCMOS/LSTTL
Stability
from ±10ppm
from ±15ppm
from ±25ppm
from ±100ppm
see table
90%Vdd minimum
10%Vdd maximum
15pF (50pF available)
10 LSTTL loads
50%±5% typical
See table
0~50°C (Light Commercial)
0~70°C (Commercial)
-40~+85 (Industrial)
-55~+105°C (Military)
-55~+125°C
5ms max.
10ms max.
(to reach 90% amplitude at 25±2°C)
±5ppm max. In first year
<1ps typical
100ms max.
100ns max.
Storage Temperature:
Startup Time
500kHz to 32MHz:
32MHz+ to 125MHz:
SOLDER TEMPERATURE PROFILE
Ageing:
Phase Jitter RMS:
Enable Time:
Disable Time:
Tristate Function (Pad 1):
Output (Pad 3) is active if Pad 1 is not connected or a
voltage to Pad 1 is 'HIGH'. Output is high impedance
when 'LOW' or GROUND is applied to Pad 1.
* Frequency stability is inclusive of calibration tolerance at 25°C,
frequency change due to shock & vibration, ±10 supply voltage
variation and stability over temperature range.
Note: Parameters are measured at ambient temperature of 25°C,
supply voltage as stated and a load of 15pF
CURRENT CONSUMPTION & RISE/FALL TIME
Frequency Range
500kHz to 32MHz
32MHz+ to 50MHz
40MHz+ to 125MHz
Supply Voltage (±10%)
+1.8V
8mA
10mA
25mA
+2.5V +3.3V +5.0V
10mA
14mA
30mA
15mA
25mA
16.5mA 35mA
35mA
40mA
Rise/Fall
Time
4ns max.
3ns max.
2ns max.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
XO91 Series Oscillators
7 x 5mm SMD HCMOS
Page 2 of 2
ENVIRONMENTAL PERFORMANCE SPECIFICATION
RoHS Status:
Storage Temperature Range:
Humidity:
Hermetic Seal:
Solderability:
Reflow:
Vibration:
Shock:
Compliant
-50° to +100°C
85% RH, 85°C for 48 hours
Leak rate 2x10
-8
ATM -cm
3
/s max.
MIL-STD-202F Method 208E
260°C for 10 sec (see diagram)
MIL-STD-202F Method 204, 35g,
50 to 2000Hz
MIL-STD-202F Method 213B, test
Condition E, 1000g ½ sinewave
PART NUMBERING
Example:
16.000MHz XO91050UCTA
Frequency
Series Designation XO91
Stability*
100 = ±100ppm
50 = ±50ppm
25 = ±25ppm
Output Universal
Operating Temp. Range
C = 0+70°C
D = -20~+70°C
I = -40~+85°C
M = -55~+125°C (±100ppm only)
Tristate Function
Supply Voltage
Blank = 5.0 Volts
A = 3.3 Volts
B = 2.5 Volts
C = 1.8 Volts
* For other stability requirements enter figure required.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
