HEF4720BPN: DescriptionIC 256 X 1 STANDARD SRAM, 580 ns, PDIP16, Static RAM; Categorystorage storage; File Size345KB，15 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

HEF4720BPN Overview

IC 256 X 1 STANDARD SRAM, 580 ns, PDIP16, Static RAM

HEF4720BPN Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	580 ns
JESD-30 code	R-PDIP-T16
length	21.6 mm
memory density	256 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	16
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X1
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.7 mm
Minimum standby current	3 V
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

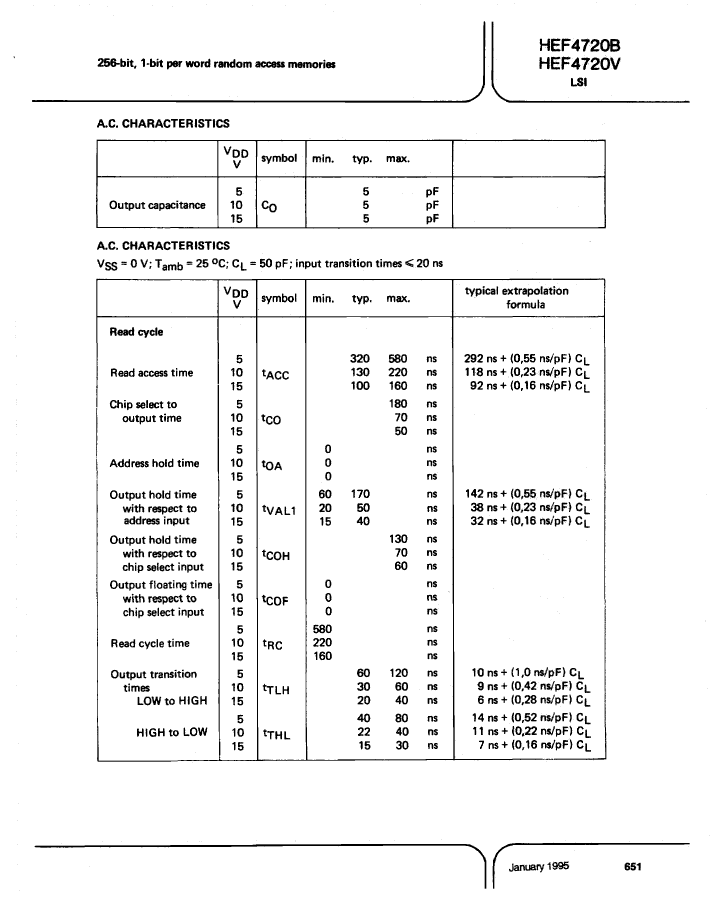

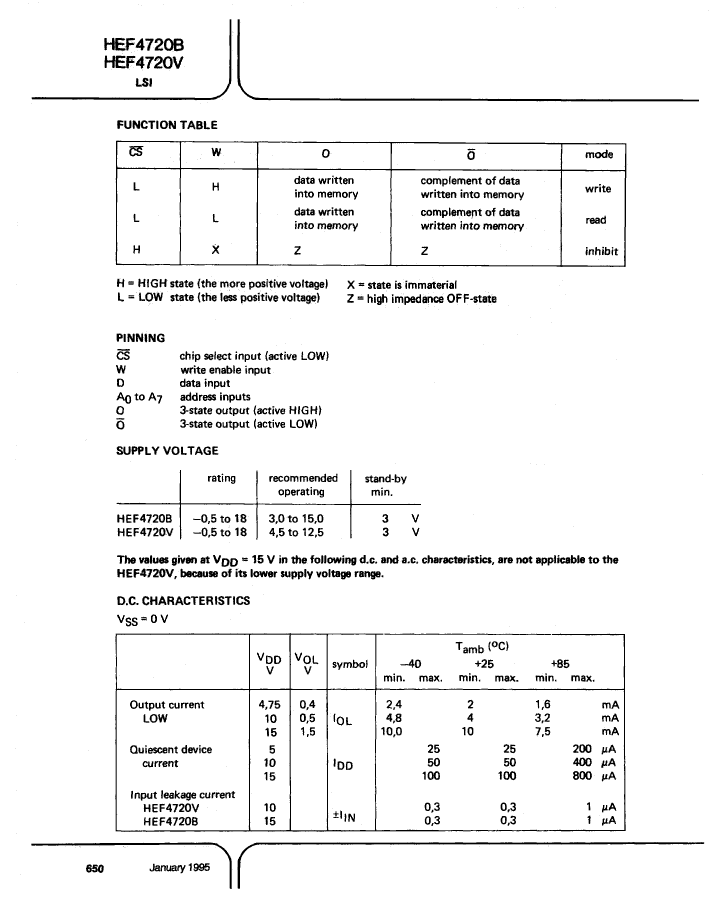

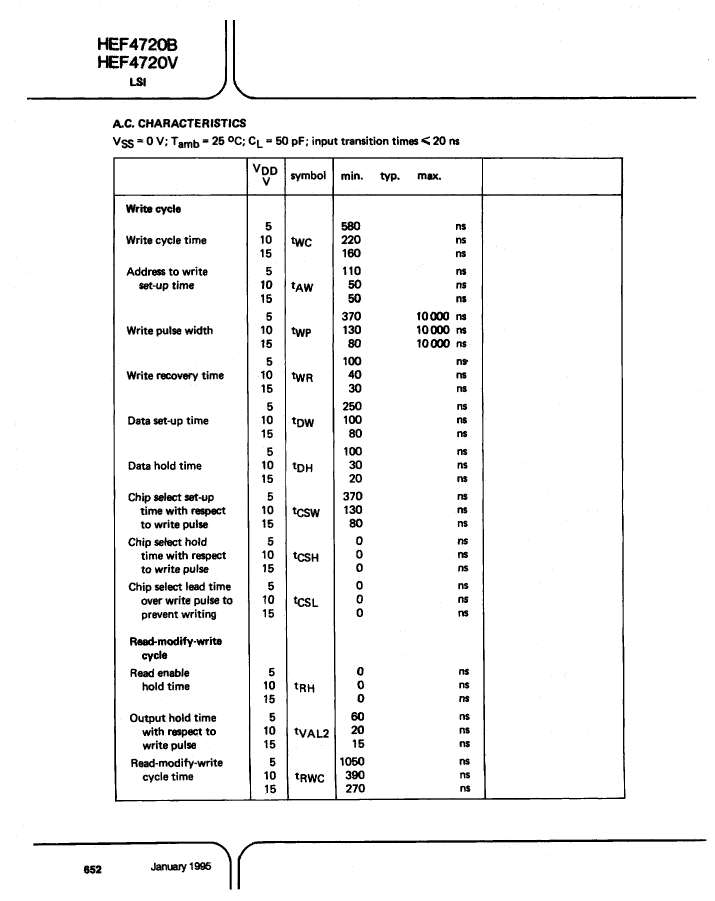

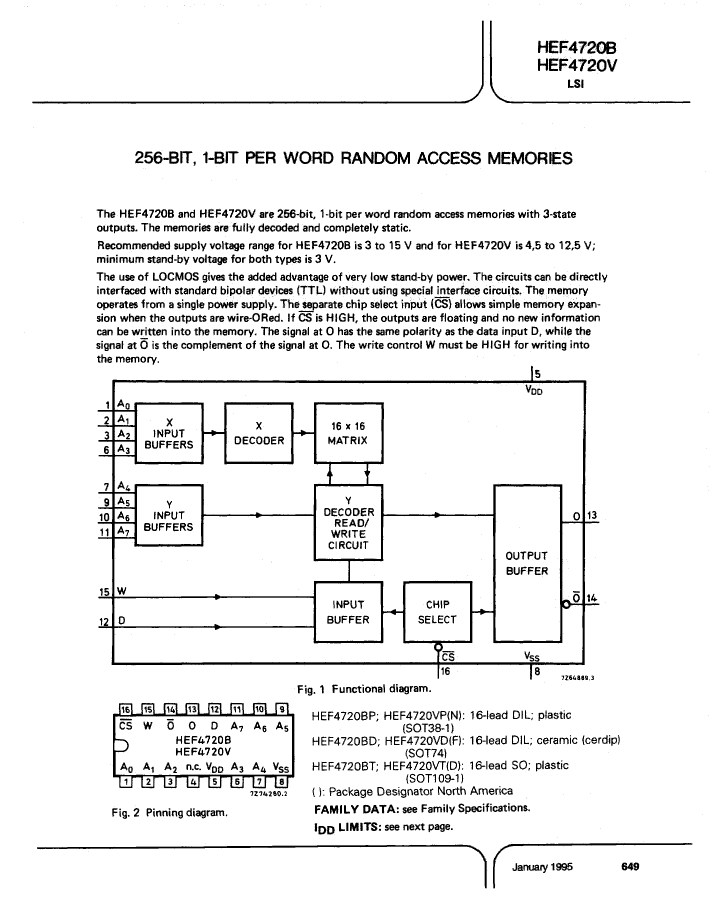

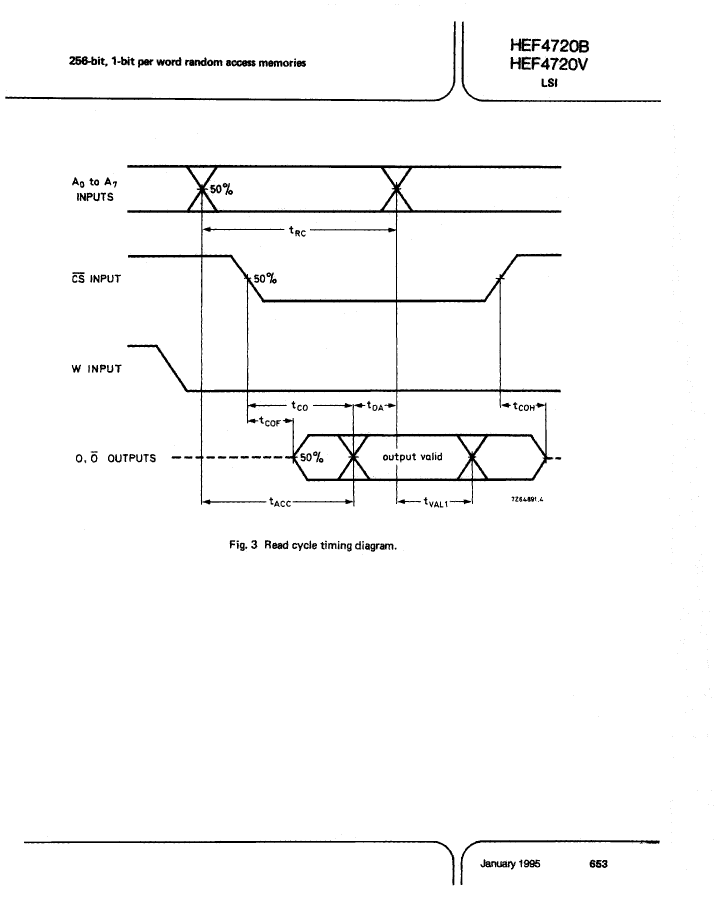

Preview

Download Datasheet

View All

HEF4720BPN Related Products

	HEF4720BPN	HEF4720BTD-T	HEF4720BTD	HEF4720BDF	HEF4720BT	HEF4720VTD	HEF4720VT	HEF4720VTD-T
Description	IC 256 X 1 STANDARD SRAM, 580 ns, PDIP16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, CDIP16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, PLASTIC, SO-16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, PLASTIC, SO-16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, PLASTIC, SO-16, Static RAM	IC 256 X 1 STANDARD SRAM, 580 ns, PDSO16, PLASTIC, SO-16, Static RAM
package instruction	DIP,	SOP,	SOP,	DIP,	PLASTIC, SO-16	SOP,	PLASTIC, SO-16	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	580 ns	580 ns	580 ns	580 ns	580 ns	580 ns	580 ns	580 ns
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
memory density	256 bit	256 bit	256 bit	256 bit	256 bit	256 bit	256 bit	256 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
word count	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256	256	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	256X1	256X1	256X1	256X1	256X1	256X1	256X1	256X1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.7 mm	1.75 mm	1.75 mm	5.08 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Minimum standby current	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	12.5 V	15 V	12.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	4.5 V	3 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Maker	NXP	NXP	NXP	NXP	NXP	-	-	NXP
length	21.6 mm	9.9 mm	9.9 mm	-	9.9 mm	9.9 mm	9.9 mm	9.9 mm
Base Number Matches	1	1	1	1	1	1	1	-
