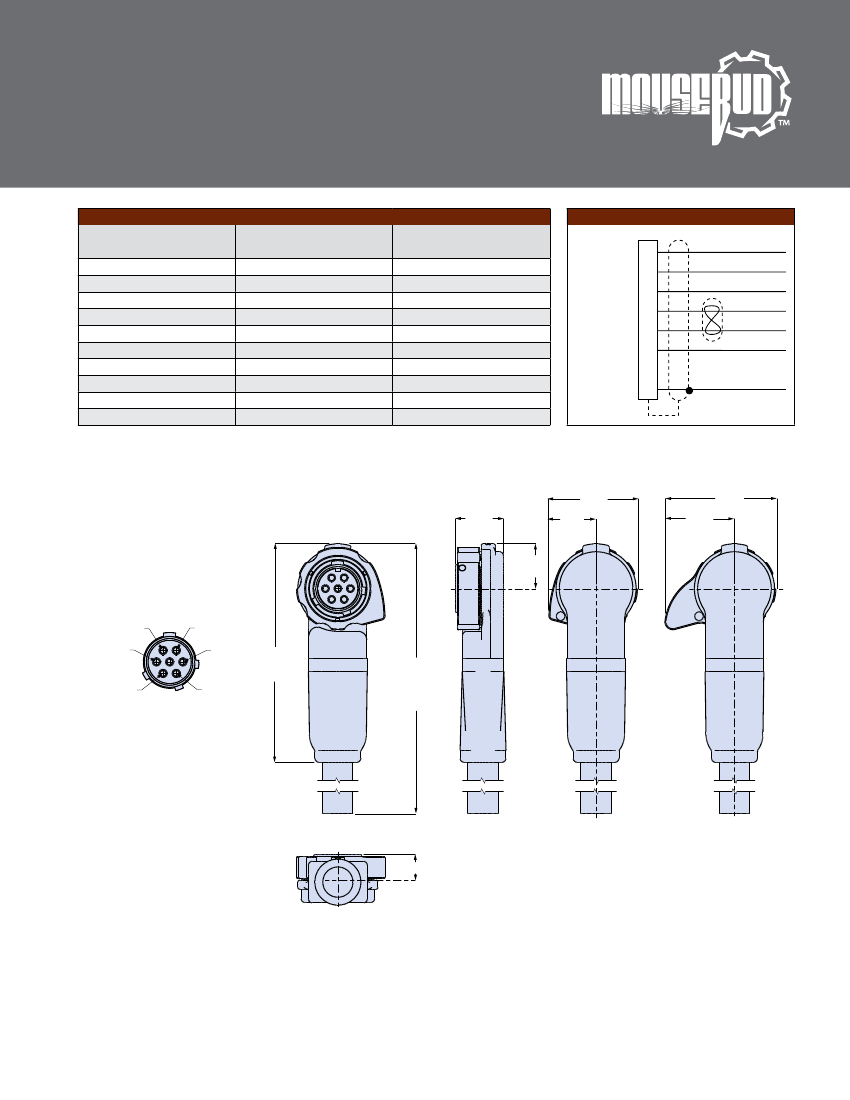

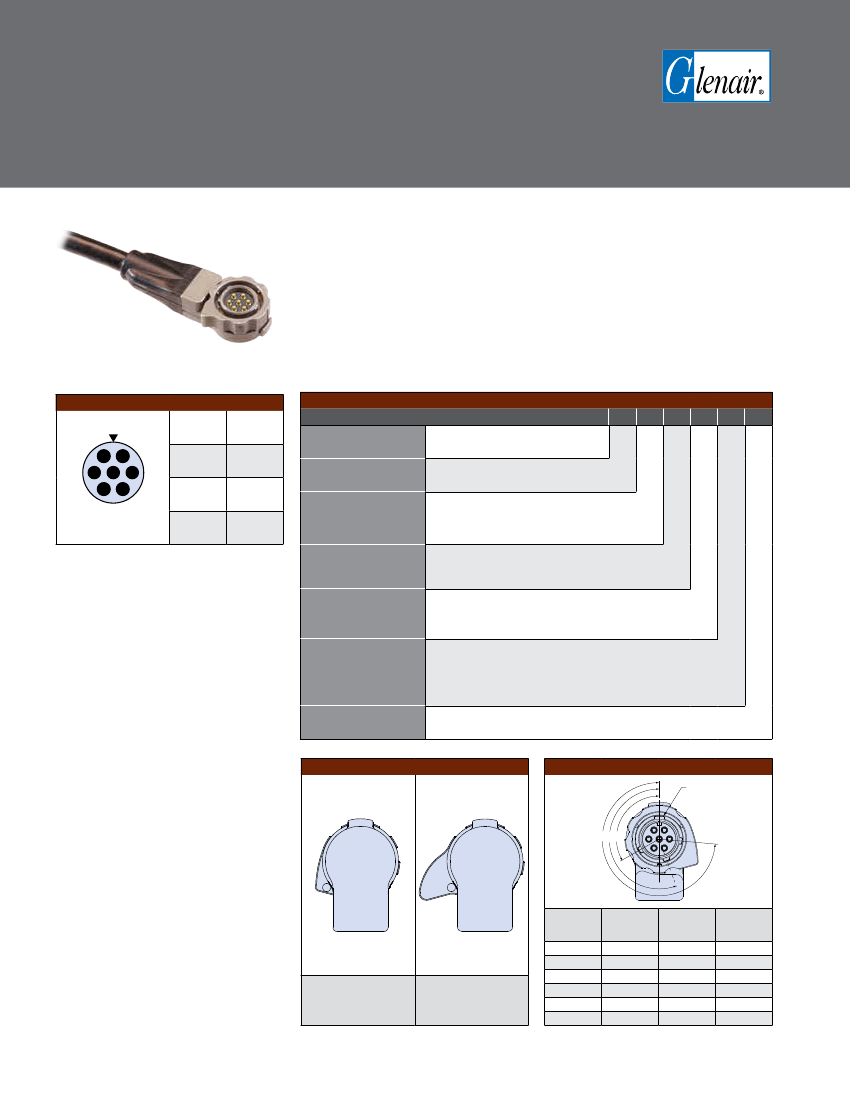

SERIES 860
MouseBud
™
The snap-lock, trigger-release connector
860-002P Plug Cordsets for USB+BAT
Lightweight 860-002P MouseBud™ harsh environment cordsets are shielded, overmolded and
100% tested. Wired per standard US Army Personal Area Network (PAN) protocol, these USB+BAT
cordsets have dual power wires to handle standard USB power plus up to 5 amp battery power.
Cable has an individually shielded 90 ohm data pair plus overall braided tinned copper shield
with 90% minimum optical coverage. Shield is terminated to the connector with a stainless steel
Band-Master® ATS strap. Water-resistant, meets MIL-STD-810G immersion requirement. Simply
push to mate and lock. To release, actuate thumb trigger on coupling ring. Style 2 cordset with
thermoplastic rubber jacket and overmold has excellent cold bend performance to -55° C.
Connectors feature spring-loaded gold plated contacts, stainless steel shells and self-actuating
bayonet coupling rings. 5A current rating, 500VAC dielectric withstanding voltage rating.
How To Order
860-002P- B7 ZR
Product
Contact Arrangement
.038
(0.96)
5A
Finish
860-002P
Contact Arrangement
Contact
Arr.
1
6
5
7
4
2
3
B7
7
1
A
2-
36
860-002P
= MouseBud cordset for
USB+BAT
# of
Contacts
Contact
Diameter
Current
Rating
B7
= seven contacts, size B shell
M
= electroless NI
MT
= Nickel-PTFE
ZR
= Black zinc-nickel
1
= Low-profile release trigger
2
= Extended release trigger
A
= position A
D
= position D
B
= position B
E
= position E
C
= position C
F
= position F
1
= polyurethane cable jacket with polyurethane
overmold
2
= polyurethane cable jacket with polyamide overmold
2
= rubber cable jacket and rubber overmold
Overall Length
in inches, 12 inch minimum
B7
Specifications
Release Trigger Style
(Table 1)
• Operating temperature:
-30°C to +105°C (cordset style 1)
-55°C to +125°C (cordset style 2)
• Dielectric withstanding voltage: 500 VAC
• Current rating: 5 A
• Contact resistance: 20 milliohms
• Water immersion: MIL-STD-810G Meth. 512.5
• Ingress protection: IP67
• Mechanical life: 2000 cycles
Key Position
(Table 2)
Cordset Style
(Table 3)
Connector Construction
• Shell: stainless steel
• Bayonet pins, retainer ring and torsion spring:
stainless steel
• Coupling ring: aluminum
• Lid: aluminum
• Contacts: copper alloy, gold plated
• Insert: glass-filled thermoplastic
• Ground spring: gold-plated stainless steel
• Gasket: fluorosilicone
• Potting compound: RTV silicone
Length
Table 1: Release Trigger Style
Table 2: Key Positions
MASTER
KEY
CB A
Cable Construction
• Data pair: 90 ohm shielded twisted pair,
#26 (19/38) AWG silver-coated copper, PFA
insulation
• Power wires: (2) #22 (19/34) AWG silver-coated
copper, TFE insulation
• Overmold: polyamide or thermoplastic
elastomer
• shield: tin-coated copper microfilament, 900
minimum optical coverage
• Jacket: thermoplastic polyurethane (TPU) or
thermoplastic elastomer (TPV)
Code
A°
1200
800
950
950
950
1200
B°
2000
1500
1500
2000
2250
2250
C°
2650
2650
2350
3200
2650
3200
Low-profile release
trigger
Extended release
trigger
A
B
C
D
E
F
5
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324. Dimensions in inches (mm).
SERIES 860
MouseBud
™
The snap-lock, trigger-release connector
860-002P Plug Cordsets for USB+BAT
Table 4: Cordset Style
Property
Style 1
Style 2
BAT +
GND
DC +
USB +
USB -
USB DETECT
NOT WIRED
1
2
3
4
5
6
7
DRAIN WIRE
Schematic
RED 22 AWG
BLK 22 AWG
YEL 26 AWG
GRN 28 AWG
WHT 28 AWG
BLU 28 AWG
Cable jacket
Thermoplastic polyurethane (TPU) Thermoplastic elastomer (TPV)
Overmold
Polyamide
Thermoplastic elastomer (TPV)
Operating temperature
-30° C to +105° C
-55° C to +125° C
Flexibility
Good
Excellent
Water Resistance
Waterproof
Waterproof
Solvent Resistance, Cable Jacket
Excellent
Good
Solvent Resistance, Overmold
Fair
Good
Weatherability
Excellent
Excellent
Abrasion Resistance
Excellent
Good
Flammability
Flame retardant UL 94 V-0
Flame retardant UL 94 HB
.36
(9.1)
.34
(8.6)
.67
(17.0)
.36
(9.1)
.53
(13.5)
.84
(21.3)
PIN 1
PIN 6
PIN 5
PIN 2
PIN 3
PIN 4
2.00
(50.8)
MAX
OAL IN
INCHES
-.00/+1.00
(-0.0/+25.4)
B7 Contact Arrangement
.21(5.3)
LOW-PROFILE
RELEASE
TRIGGER
EXTENDED
RELEASE
TRIGGER
6
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324. Dimensions in inches (mm).
