M22-078050W1605 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M22-078050W1605

M22-078050W1605: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size3MB，14 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M22-078050W1605 Overview

Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

M22-078050W1605 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1748918954
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.059 inch
body length	1.264 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.197 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	32

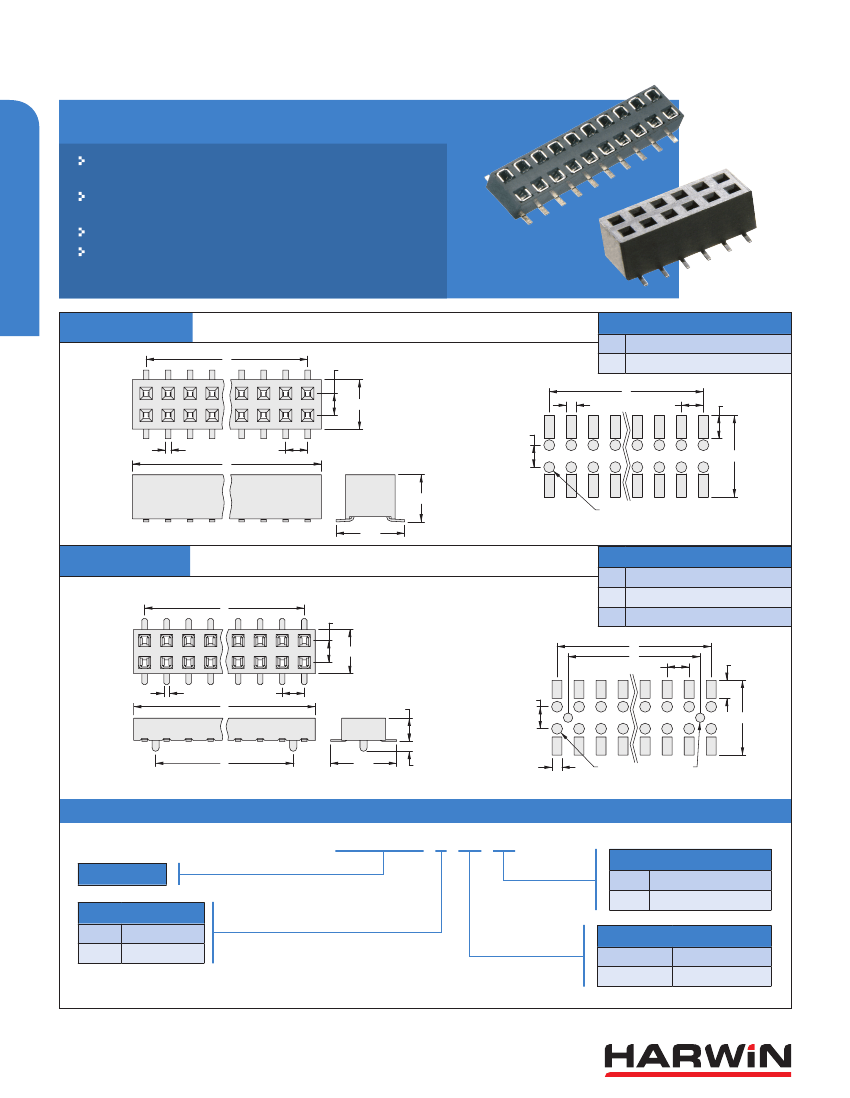

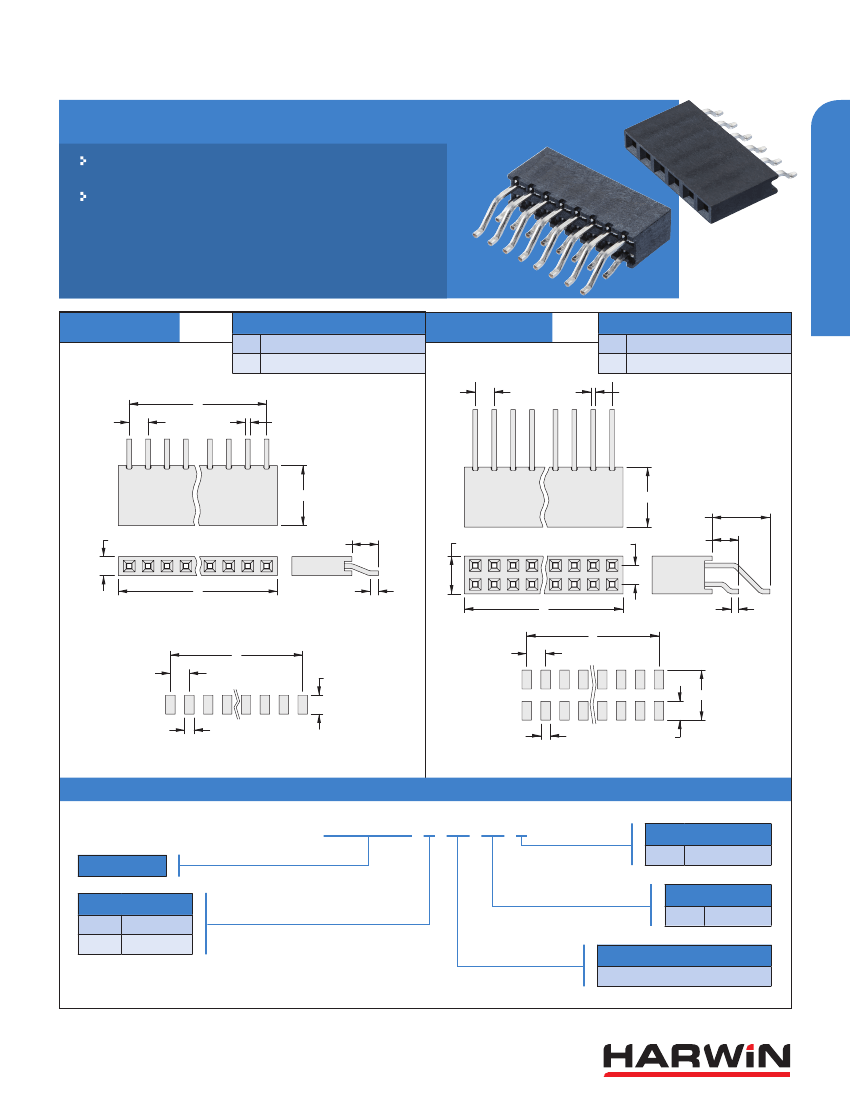

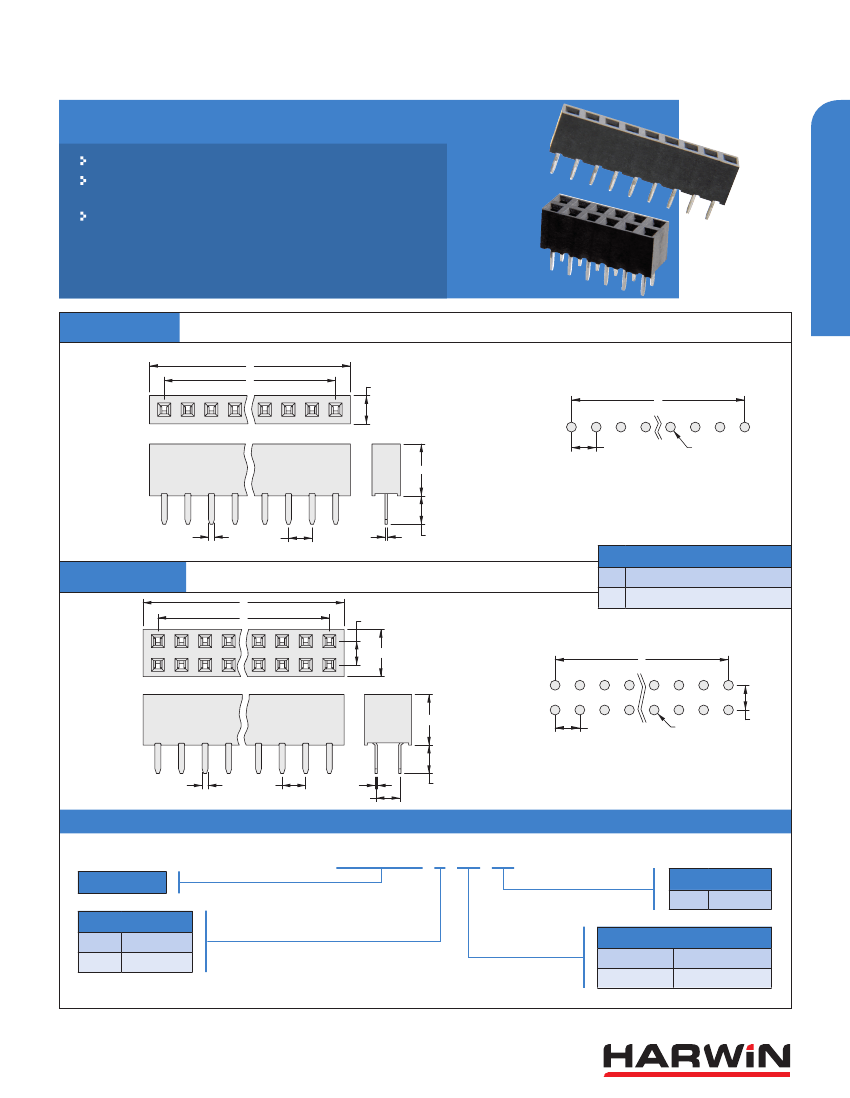

Preview

Download Datasheet

View All

M22 Connectors Specification

2mm pitch, with 0.5mm square male pin connection system.

Materials

Mouldings:

Contacts

Female:

Jumper socket:

Male:

Finish:

Standard or High Temperature

Plastic, UL94V-0

Phosphor Bronze

Beryllium Copper

Copper Alloy

See individual pages

Mechanical

Durability

M22-30X:

Others:

Insertion force (max)

Jumper sockets:

M22-30X:

Others:

Withdrawal force (min)

Jumper sockets:

M22-30X:

Others:

Vibration sensitivity

M22-654, 655:

Others:

Shock severity:

25 operations

300 operations

10N total

2.9N per contact

2.0N per contact

1N total

1.0N per contact

0.2N per contact

50 – 2,000Hz, 3.13G,

45 minutes duration

10 – 55Hz, 1.5mm,

6 hours duration

294m/s

(30G) for 11ms

Electrical

Current:

Voltage proof:

Contact resistance:

Insulation resistance:

Up to 2A per contact

(see individual drawings)

500V AC for 1 minute

30mΩ max

500MΩ min

Environmental

Operating temperature

M22-30X:

Others:

Solderability

M22-636, 713, 714:

Others:

Soldering heat resistance:

-25°C to +85°C

-40°C to +105°C

250°C for 3 seconds

245°C for 5 seconds

260°C for 10 seconds

All dimensions in mm.

www.harwin.com

206

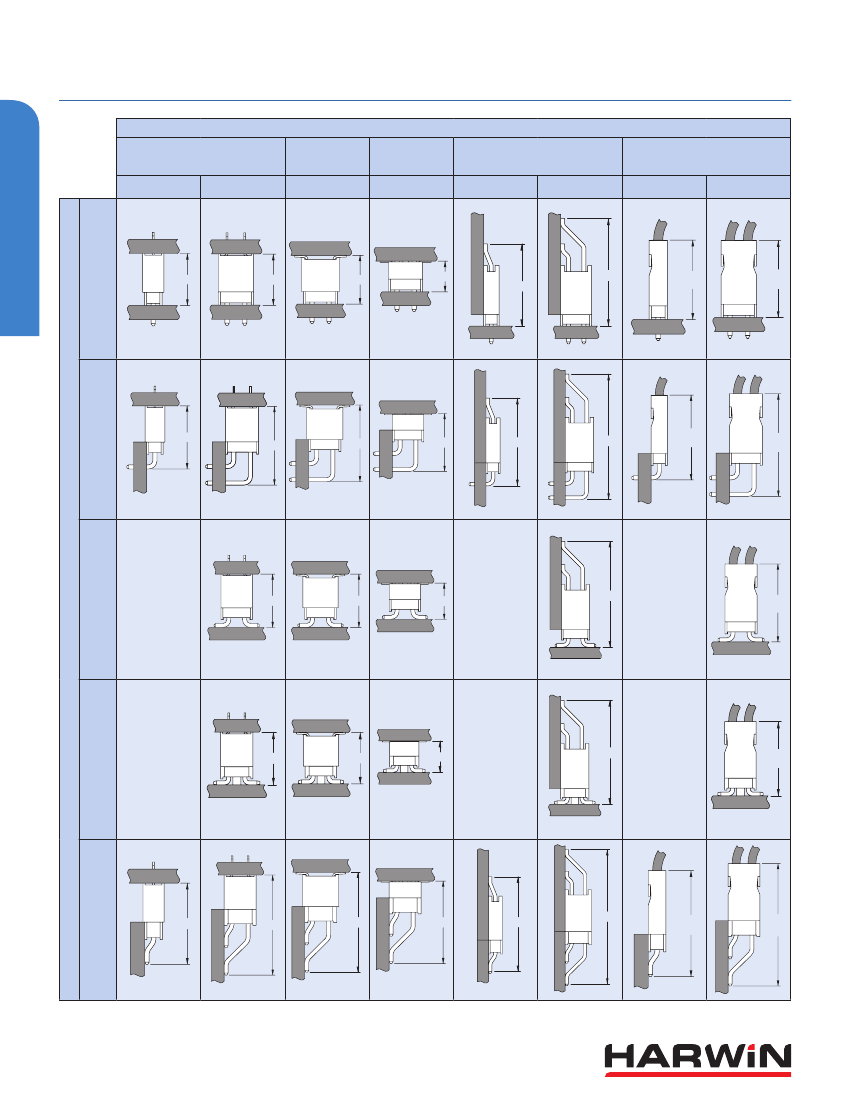

2mm (.079") PITCH

Board-to-Board and Cable-to-Board application options.
