24_BNC-50-2-14/133_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 24_BNC-50-2-14/133_NE

24_BNC-50-2-14/133_NE: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size3MB，18 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

24_BNC-50-2-14/133_NE Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack

24_BNC-50-2-14/133_NE Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BNC
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES BNC 50

DESCRIPTION

COAXIAL MINIATURE CONNECTORS

CONTENTS

PAGE

HUBER+SUHNER BNC is still one of the most popular

connector series, featuring a two stud bayonet coupling

mechanism, which is particularly useful for frequently

coupled and uncoupled RF connections with frequencies

up to 4 GHz.

Compatibility

50 BNC connectors and 75 BNC connectors are

intermateable without any restrictions.

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Interface dimensions . . . . . . . . . . . . . . . . . . . . . 199

Interface dimensions in mm /

inches

. . . . . . . . . . 199

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . 200

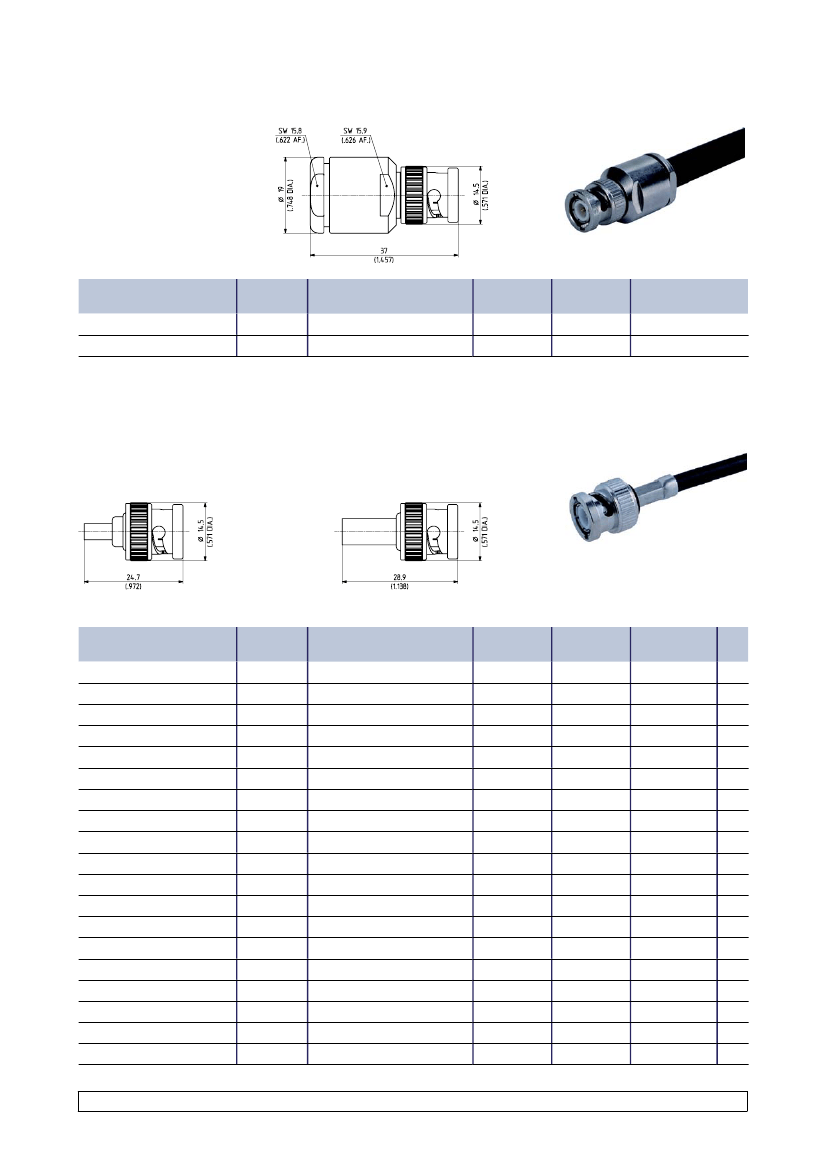

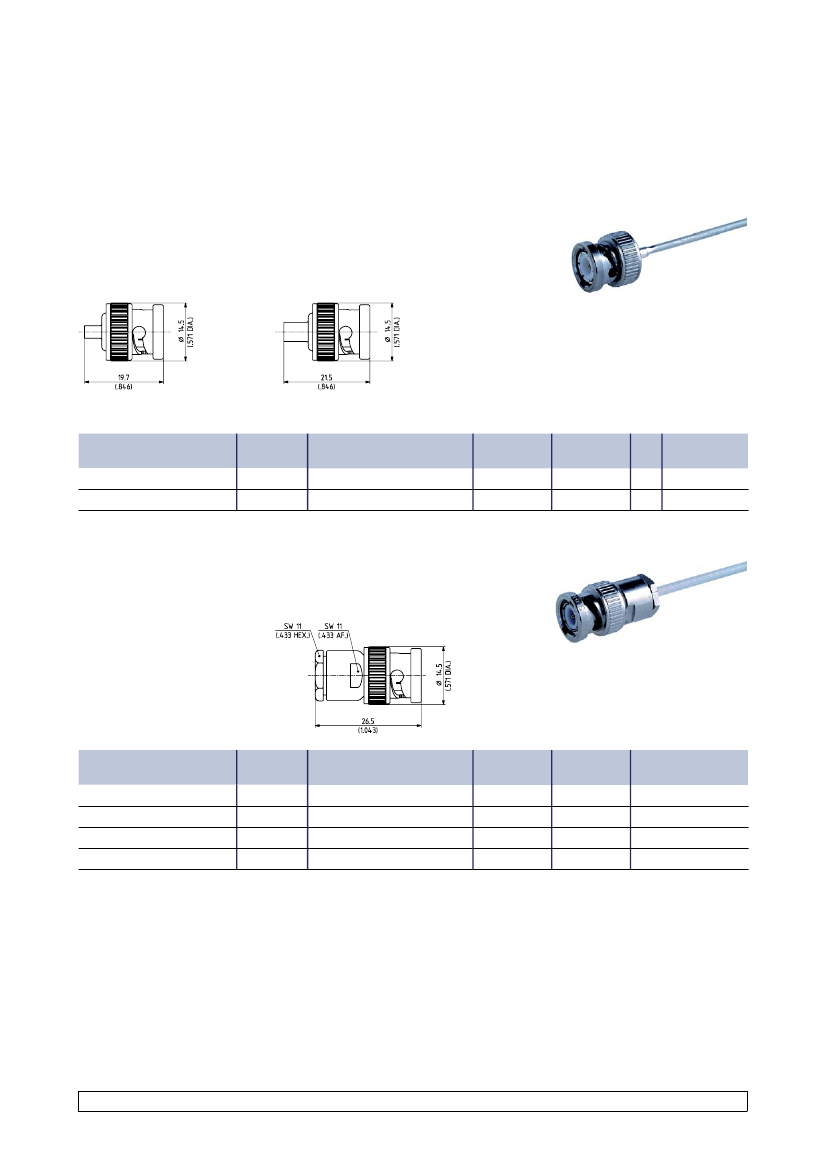

Cable connectors . . . . . . . . . . . . . . . . . . . . . . . 202

Receptacles with solder end . . . . . . . . . . . . . . . . 211

PCB connectors . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Protective caps and shorts . . . . . . . . . . . . . . . . . . 216

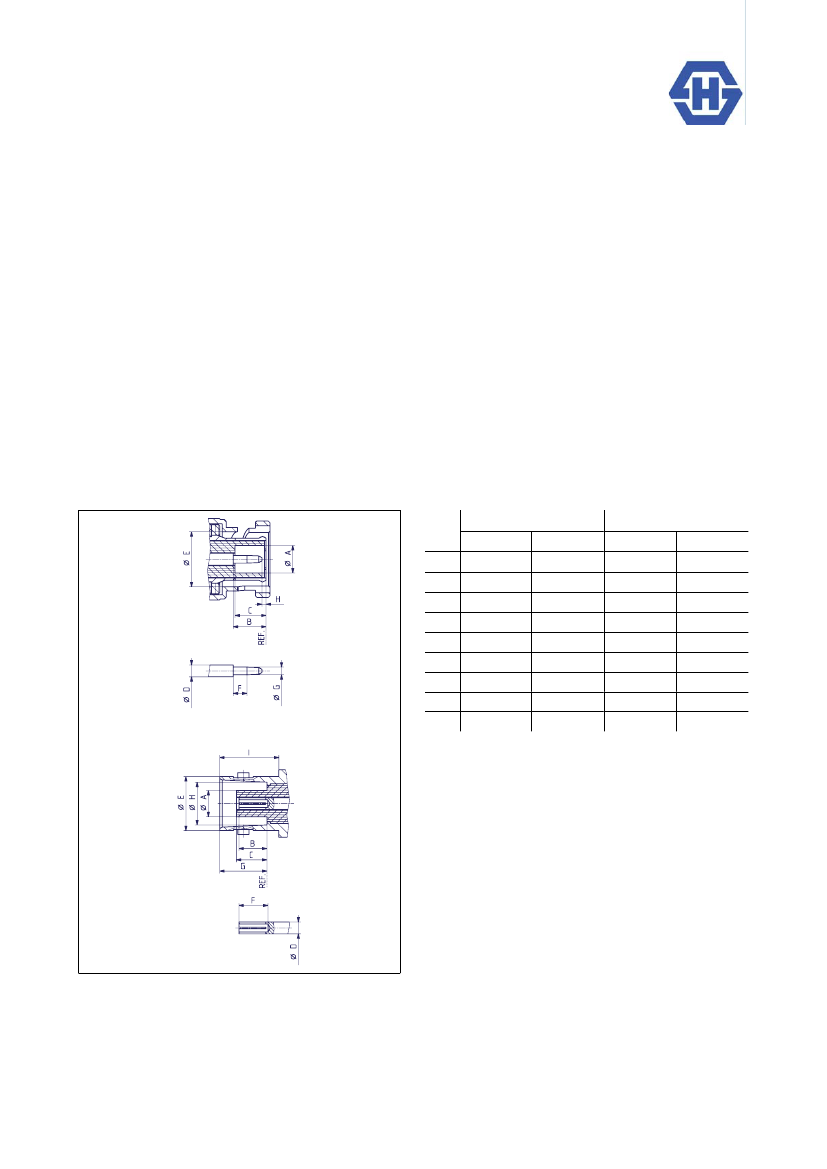

INTERFACE DIMENSIONS

Plug (male)

INTERFACE DIMENSIONS (MM /

INCHES)

Plug

min.

4.83/.190

5.33/.210

5.28/.208

2.06/.081

9.78/.385

1.98/.078

1.32/.052

0.08/.003

---

max.

---

5.84/.230

5.79/.228

2.21/.087

9.91/.390

---

1.37/.054

---

min.

---

4.72/.186

4.78/.188

2.06/.081

9.60/.378

4.95/.195

8.31/.327

8.10/.319

10.52/.414

Jack

max.

4.72/.186

5.23/.206

5.28/.208

2.21/.087

9.70/.382

8.51/.335

8.15/.321

---

Jack (female)

Interface dimensions conformable to

the Standards:

International:

Europe:

USA:

Great Britain:

IEC 61169-8

CECC 22120

MIL-C- 39012,

BNC Interface MIL-STD-348A/301

BS 9210 N 004

IP rating (interface, mated) IP64

HUBER+SUHNER BNC 50

199
