C1206C821K4RACAUTO

Description
Ceramic Capacitor, Ceramic,
CategoryPassive components    capacitor
File Size2MB,23 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

C1206C821K4RACAUTO Overview

Ceramic Capacitor, Ceramic,

C1206C821K4RACAUTO Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8059538052
package instruction, 1206
Reach Compliance Codecompliant
Country Of OriginMexico
YTEOL7.48
capacitance0.00082 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.78 mm
JESD-609 codee3
length3.2 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, PUNCHED PAPER, 13 INCH
positive tolerance10%
Rated (DC) voltage (URdc)16 V
size code1206
surface mountYES
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
Terminal surfaceMATTE TIN OVER NICKEL
Terminal shapeWRAPAROUND
width1.6 mm

C1206C821K4RACAUTO Preview

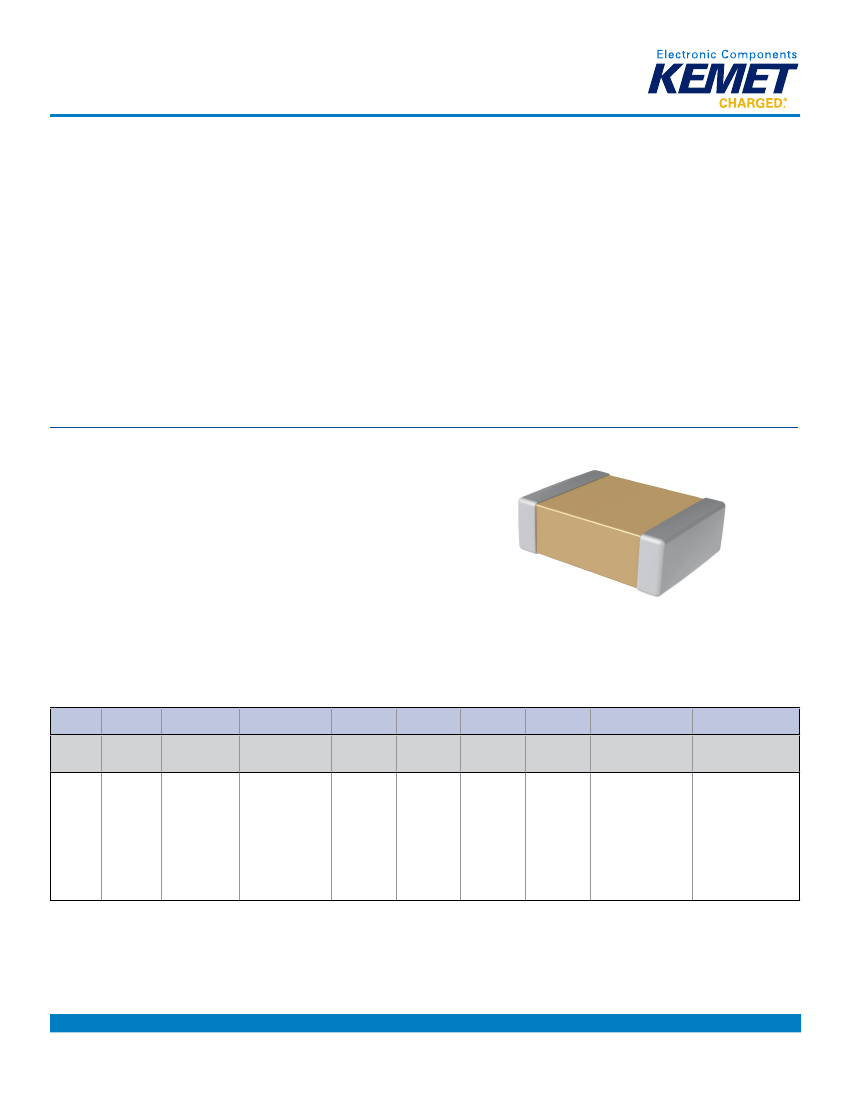

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Overview
KEMET’s Automotive Grade Series surface mount capacitors in
X7R dielectric are suited for a variety of applications requiring
proven, reliable performance in harsh environments. Whether
under-hood or in-cabin, these devices emphasize the vital and
robust nature of capacitors required for mission and safety critical
automotive circuits. Stricter testing protocol and inspection
criteria have been established for automotive grade products
in recognition of potentially harsh environmental conditions .
KEMET automotive grade series capacitors meet the demanding
Automotive Electronics Council's AEC–Q200 qualification
requirements
X7R dielectric features a 125°C maximum operating temperature
and is considered “temperature stable,” The Electronics
Industries Alliance (EIA) characterizes X7R dielectric as a
Class II material. Components of this classification are fixed,
ceramic dielectric capacitors suited for bypass and decoupling
applications or for frequency discriminating circuits where Q
and stability of capacitance characteristics are not critical. X7R
exhibits a predictable change in capacitance with respect to time
and voltage and boasts a minimal change in capacitance with
reference to ambient temperature. Capacitance change is limited
to ±15% from -55°C to +125°C.
Benefits
AEC–Q200 automotive qualified
-55°C to +125°C operating temperature range
Lead (Pb)-Free, RoHS and REACH compliant
Temperature stable dielectric
EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220, case sizes
DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V,
200 V, and 250 V
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
0805
C
225
Capacitance
Code (pF)
M
Capacitance
Tolerance
4
Voltage
9 = 6.3 V
8 = 10 V
4 = 16 V
3 = 25 V
5 = 50 V
1 = 100 V
2 = 200 V
A = 250 V
R
Dielectric
R = X7R
A
C
AUTO
Packaging/Grade
(C-Spec)
3
Case Size Specification/
(L" x W")
Series
0402
0603
0805
1206
1210
1812
2220
C = Standard
Failure Rate/
Termination Finish
1
Design
A = N/A
2 significant digits
J = ±5%
+ number of zeros
K = ±10%
M = ±20%
C = 100% Matte Sn AUTO = 7" Reel
AUTO 7411 = 13"
Reel / Punched
Paper
AUTO 7210 = 13"
Reel / Embossed
Plastic
Additional termination finish options may be available. Contact KEMET for details
Additional reeling or packaging options may be available. Contact KEMET for details.
3
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L"x W") and thickness dimension. See "Chip Thickness/Packaging Quantities" and
"Tape & Reel Packaging Information" sections of this document.
3
For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information" section of this document.
3
All Automotive packaging C-Specs listed exclude packaging of laser mark components. Please contact KEMET if you require a laser marked option.
1
2
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1023_X7R_AUTO_SMD • 12/9/2014
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Automotive C-Spec Information
KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding
test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. These
products are supported by a Product Change Notification (PCN) and Production Part Approval Process warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, "AUTO". This
C-Spec was developed in order to better serve small and medium sized companies that prefer an automotive grade component without
the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a KEMET engineering specialist.
This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are not granted the same “privileges” as
other automotive C-Specs. Customer PCN approval and PPAP request levels are limited (see details below).
Product Change Notification (PCN)
The KEMET Product Change Notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit , function, and /or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification due to:
Process/Product change
Yes (with approval and
sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days prior to
implementation
180 days Minimum
90 days Minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design record and specification requirements are properly understood and
fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part
KEMET
Automotive
C-Spec
KEMET
assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
2
3
4
5
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
● Part Number specific PPAP available
○ Product family PPAP only
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1023_X7R_AUTO_SMD • 12/9/2014
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA
Size
Code
0402
0603
0805
1206
1210
1
1812
2220
1
Metric
Size
Code
1005
1608
2012
3216
3225
4532
5650
L
Length
W
Width
T
Thickness
B
Bandwidth
0.30 (.012) ± 0.10 (.004)
0.35 (.014) ± 0.15 (.006)
0.50 (0.02) ± 0.25 (.010)
S
Separation
Minimum
0.30 (.012)
0.70 (.028)
0.75 (.030)
Mounting
Technique
Solder Reflow Only
Solder Wave or
Solder Reflow
1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002)
1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006)
2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)
3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008)
See Table 2 for
0.50 (0.02) ± 0.25 (.010)
Thickness
3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008)
0.50 (0.02) ± 0.25 (.010)
4.50 (.177) ± 0.30 (.012)
3.20 (.126) ± 0.30 (.012)
0.60 (.024) ± 0.35 (.014)
0.60 (.024) ± 0.35 (.014)
N/A
Solder Reflow Only
5.70 (.224) ± 0.40 (.016) 5.00 (.197) ± 0.40 (.016)
For capacitance values ≥ 12 µF add 0.02 (0.001) to the width tolerance dimension
Benefits cont'd
Capacitance offerings ranging from 10 pF to 22 μF
Available capacitance tolerances of ±5%, ±10%, and ±20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for excellent solderability
Applications
Typical applications include decoupling, bypass, filtering and transient voltage suppression.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1023_X7R_AUTO_SMD • 12/9/2014
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Qualification/Certification
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-Free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±15%
3.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
5% (6.3 and 10 V), 3.5% (16 and 25 V) and 2.5% (50 to 250 V)
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance >10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X7R
16/25
< 16
All
Capacitance
Value
Dissipation Factor
(Maximum %)
3.0
5.0
7.5
C1023_X7R_AUTO_SMD • 12/9/2014
4
±20%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Insulation Resistance Limit Table
EIA Case Size
0201
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
1,000 Megohm
Microfarads or 100 GΩ
N/A
< 0.012 µF
< 0.047 µF
< 0.15 µF
< 0.47 µF
< 0.39 µF
ALL
< 2.2 µF
ALL
< 10 µF
ALL
500 Megohm
Microfarads or 10 GΩ
ALL
≥ 0.012 µF
≥ 0.047 µF
≥ 0.15 µF
≥ 0.47 µF
≥ 0.39 µF
N/A
≥ 2.2 µF
N/A
≥ 10 µF
N/A
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1023_X7R_AUTO_SMD • 12/9/2014
5
Design of Closed-Loop Hall Current Sensor
Has anyone made a closed-loop (magnetic balance) Hall sensor system for measuring small currents? Which material is better for the iron core? I have some other questions for you....
张志飞 Analog electronics
Popular Science Sharing - Detailed Explanation of the Working Principles of Starlink Satellites (Part 2)
[i=s]This post was last edited by zzzy11 on 2022-9-15 15:07[/i]About the internal structure of the Starlink satellite antenna and how to use the principle of electromagnetic waves to transmit signals....
zzzy11 RF/Wirelessly
WINCE6.0 Multi-language
[code] //VirtualAlloc+VirtualCopy or VirtualAllocEx+VirtualCopyEx seems to be disabled in Wince 6.0, //so what other methods can be used to read it? [/code]...
momo86 Embedded System
I also want information
Email: ji271102@163.com, thanks....
ji271102 MCU
I don't understand MPLAB IDE at all, and I want my friends to write some good suggestions or videos.
Books and videos are fine... Looking for an expert...
l290683153 Microchip MCU
What are the differences between DK251 CA251 A251 on KEIL website, with pictures
What is the difference between DK251 CA251 A251 on the KEIL website, as shown in the red box in the figure below...
深圳小花 MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2541  2720  2357  1675  689  52  55  48  34  14
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
