SocketModem
Embedded Analog Modem
®
The Multi-Tech SocketModem
®
embedded modem creates
communication-ready devices by integrating data/fax modem
functionality into a single, universal socket design. It utilizes
a space-efficient (1" x 2.5"), design that allows OEMs to
integrate a wide range of modem functions and speeds into
any product platform. The SocketModem embedded
modem complies with telecom requirements
globally and can be shipped worldwide.
Features
·
Complete data/fax modem solution including the
controller, data pump, and DAA
·
Universal Socket connectivity
·
Telecom approved in more than 50 countries
·
V.92/56K, V.34/33.6K and V.22bis/2400 bps data rate options
·
High speed models backward compatible with lower speeds
·
V.34/33.6K or V.17/14.4K fax
·
V.44 and V.42bis data compression
·
V.42 error correction
·
Intelligent DAA technology detects line status
·
U.S. Caller ID reporting
·
Low power/sleep mode
·
Flash memory for easy updates
·
FastPOS (V.29) and V.22bis Fast Connect
·
V.80 Synchronous Access
·
2-wire leased line operation
·
10 or 11-bit modes
·
3.3V or 5V power input options
·
Serial or parallel interfaces
·
Two-year warranty
Ethernet
Cellular
Future
Network
Universal Socket Benefits
• Interchangeable
communications devices
• Quick-to-market
• Global approvals
• Easy migration to future
networks
PSTN
Bluetooth
®
M2M Simplified.
™
Innovative Designs, Innovative Solutions.
Specifications
Data Modem
Highlights
Applications
With connect rates from 300 to 56,000 bits per
second (bps), the SocketModem embedded modem
is targeted at applications that periodically need to
send or receive data over a standard telephone line.
It is ideal for:
·
Appliances
·
Point-of-sale terminals
·
Remote diagnostics
·
Remote metering
·
Security systems
·
Television set-top
boxes
·
Ticketing machines
·
Vending/gaming
machine
·
ATM terminals
·
Credit card and check
verification systems
·
Data collection
·
Gas pumps
·
Industrial and medical
remote monitoring
systems
Fax Modem

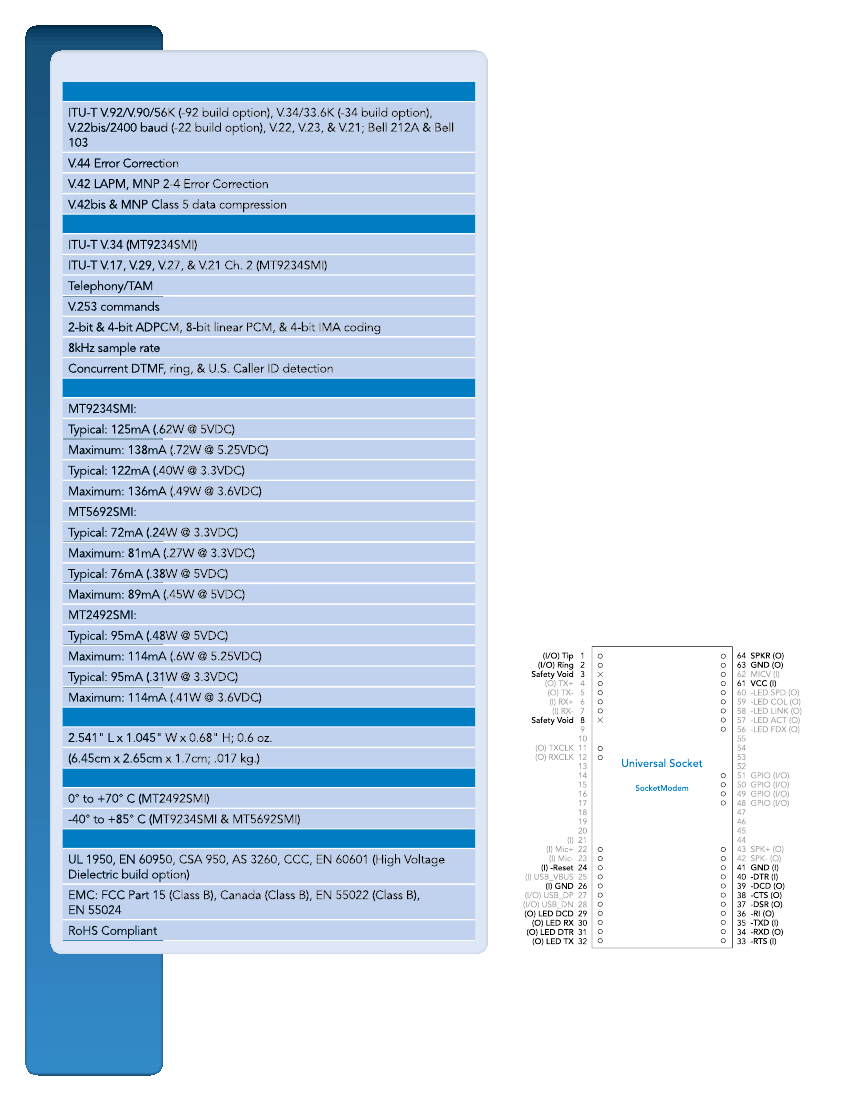

SocketModem Pin-Out
Power Requirements
The SocketModem embedded modem interfaces
easily with existing products through a standard
serial or parallel communication channel. The
complete on-board DAA interfaces with an RJ-11
jack for direct connection to the public switched
telephone network. The SocketModem embedded
modem provides audio circuit outputs for audio
call-progress monitoring, and LED driver outputs for
visual monitoring of Carrier Detect, Transmit Data,
Receive Data and DTR signals. The SocketModem
embedded modem is a Data Terminal Equipment
(DTE) device with a serial or parallel interface. The
serial DTE channel is capable of transfer speeds to
230.4K bps and can be interfaced directly to a UART
or microcontroller.
Physical Description
Operating Environment
Certifications & Approvals
Universal Socket Connectivity
Multi-Tech’s Universal Socket is a flexible, comm-
port architecture that provides cellular, Ethernet,
PSTN or Wi-Fi
®
network access with interchangeable
communications devices. This means you can
utilize one system design and populate it with
your connectivity device of choice accommodating
multiple connectivity requirements. In addition,
you are assured a seamless migration to future
technologies.

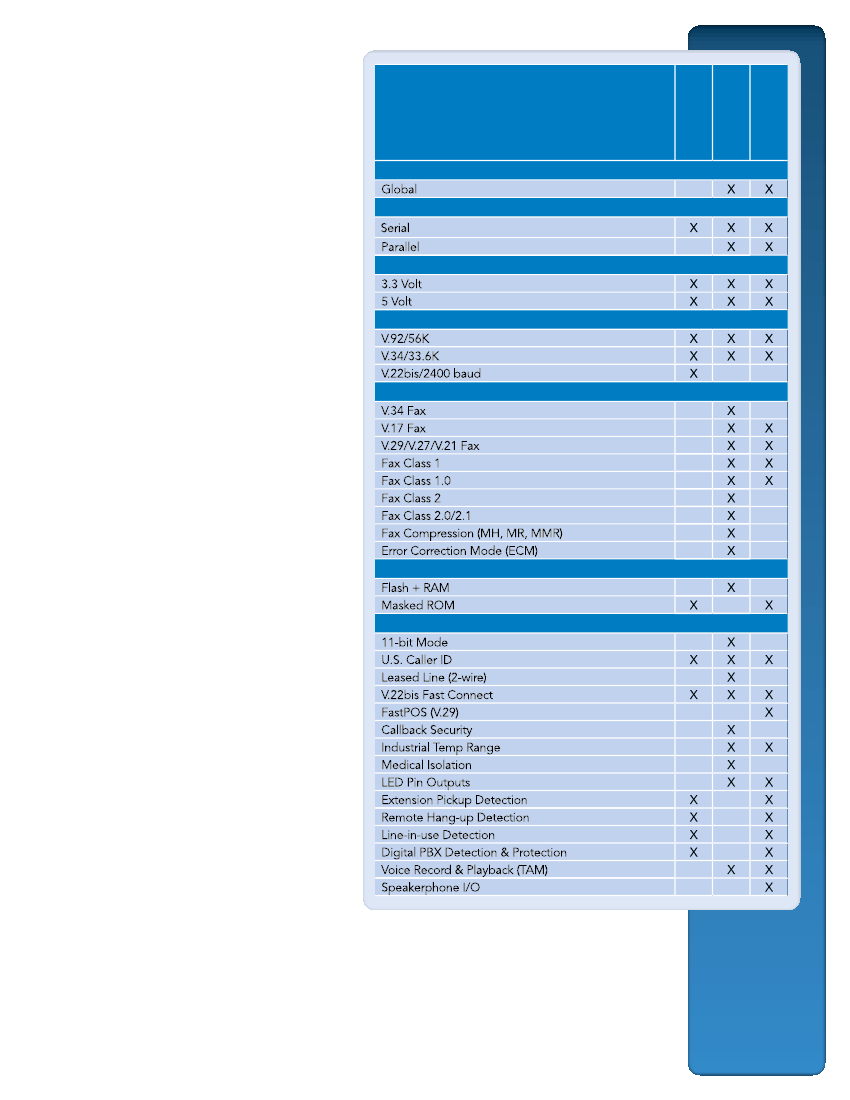

MT2492SMI-xx
MT9234SMI-xx
MT5692SMI-xx
SocketModem Models
Telecom Approvals
Interface
Developer’s Kit
The Developer’s Kit allows you to plug in the
communications device and use it for testing,
programming and evaluation. See www.multitech.
com/pdf/devkit.go for more details.
Power
Maximum Data Rate
Telecom Certifications:
Argentina
Australia
Austria
Belgium
Bosnia
Brazil
Bulgaria
Canada
Chile
China*
Cyprus
Czech Republic
Denmark
Estonia
Finland
France
Germany
Greece
Herzegovina
Hong Kong
Hungary
Iceland
Indonesia
Ireland
Israel
Italy
Japan
Korea
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Mexico
Netherlands
New Zealand
Norway
Philippines
Poland
Portugal
Romania
Russia
Singapore
Slovak Republic
Slovenia
South Africa
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
United Kingdom
United States
Fax Capability
Memory Type
Features
The above list is our target set of countries in which the global
SocketModem embedded modems are approved. Many of the
approvals are completed at the time the product is released
to market; whereas others may take additional months to
complete. Furthermore, some models may have additional
approvals.
* MT9234SMI only.
Ordering Information
Product
MT9234SMI-92
MT9234SMI-P-92
MT9234SMI-L-92
MT9234SMI-P-L-92
MT9234SMI-HV-92
MT9234SMI-P-HV-92
MT5692SMI-92
MT5692SMI-L-92
MT5692SMI-X-L-92
MT5692SMI-P-92
MT5692SMI-P-L-92
MT5692SMI-V-92
MT5692SMI-34
MT5692SMI-L-34
MT5692SMI-P-34
MT5692SMI-P-L-34
MT5692SMI-V-34
MT2492SMI-92
MT2492SMI-34
MT2492SMI-22
MT2492SMI-L-92
MT2492SMI-L-34
MT2492SMI-L-22
MTSMI-UDK
MTSMI-P-DK
Description
V.92 Serial Data V.34 Fax
V.92 Parallel Data V.34 Fax
V.92 Serial Data V.34 Fax
V.92 Parallel Data V.34 Fax
V.92 Serial Data V.34 Fax
V.92 Parallel Data V.34 Fax
V.92 Serial Data/Fax
V.92 Serial Data/Fax
V.92 Serial Data/Fax (no LED pins)
V.92 Parallel Data/Fax
V.92 Parallel Data/Fax
V.92 Serial Data/Fax
V.34 Serial Data/Fax
V.34 Serial Data/Fax
V.34 Parallel Data/Fax
V.34 Parallel Data/Fax
V.34 Serial Data/Fax
V.92 Serial Data Only
V.34 Serial Data Only
V.22bis Serial Data Only
V.92 Serial Data Only
V.34 Serial Data Only
V.22bis Serial Data Only
SocketModem Serial Developer Kit
SocketModem Parallel Developer Kit
V.92/56K data rate
V.34/33.6K data rate
V.22bis/2400 baud data rate
Parallel interface (default is serial)
Exclude LED pin outputs
(Legacy MT5600SMI and MT3400SMI support)
3.3 Volt power input (default is 5V)
High Voltage dielectric isolation (EN60601)
Speakerphone I/O
Developer kit
Universal Developer kit
Region
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
Global
US/Can/Euro
US/Can/Euro
US/Can/Euro
US/Can/Euro
US/Can/Euro
US/Can/Euro
Global
Global
Services & Warranty
Multi-Tech’s comprehensive Support
Services programs offer a full array of
options to suit your specific needs.
These services are aimed at protecting
your investment, extending the life of
your solution or product, and reducing
total cost of ownership. Our seasoned
technical experts, with an average
tenure of more than 10 years, can
walk you through smooth installations,
troubleshoot issues and help you with
configurations. Products include a 2-year
warranty.
Installation Support
Multi-Tech’s Installation Support Service
delivers priority service with the ability
to work one-on-one with an experienced
Multi-Tech technical support engineer,
to guide you through the installation
process for our products.
Technical Support Services
At Multi-Tech, we’re committed to
providing you personalized attention
and quality service while providing you a
quick response to your product support
needs. We have several options of
support for you to choose from.
For additional information on Support
Services as well as other service
offerings, please contact your Multi-Tech
representative or visit
www.multitech.com/support.go.
Ordering codes
-92
-34
-22
-P
-X
-L
-HV
-V
-DK
-UDK
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112 U.S.A.
Tel: 763-785-3500
Toll-Free: 800-328-9717
Email: sales@multitech.com
www.multitech.com
EMEA Headquarters
Multi-Tech Systems (EMEA)
Unit 1, Thames Court
2 Richfield Avenue
Reading, Berkshire RG1 8EQ
United Kingdom
Tel: +(44) 118 959 7774
Email: sales@multitech.co.uk
