TC75S57F(TE85L,F) datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> TC75S57F(TE85L,F)

TC75S57F(TE85L,F): Descriptioncmos type OP amp smv; CategoryAnalog mixed-signal IC Amplifier circuit; File Size197KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TC75S57F(TE85L,F) Overview

cmos type OP amp smv

TC75S57F(TE85L,F) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	0.95 MM PITCH, PLASTIC, SSOP-5
Contacts	5
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G5
length	2.9 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	PUSH-PULL
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
power supply	3/5 V
Certification status	Not Qualified
Nominal response time	7 ns
Maximum seat height	1.4 mm
Maximum slew rate	0.22 mA
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

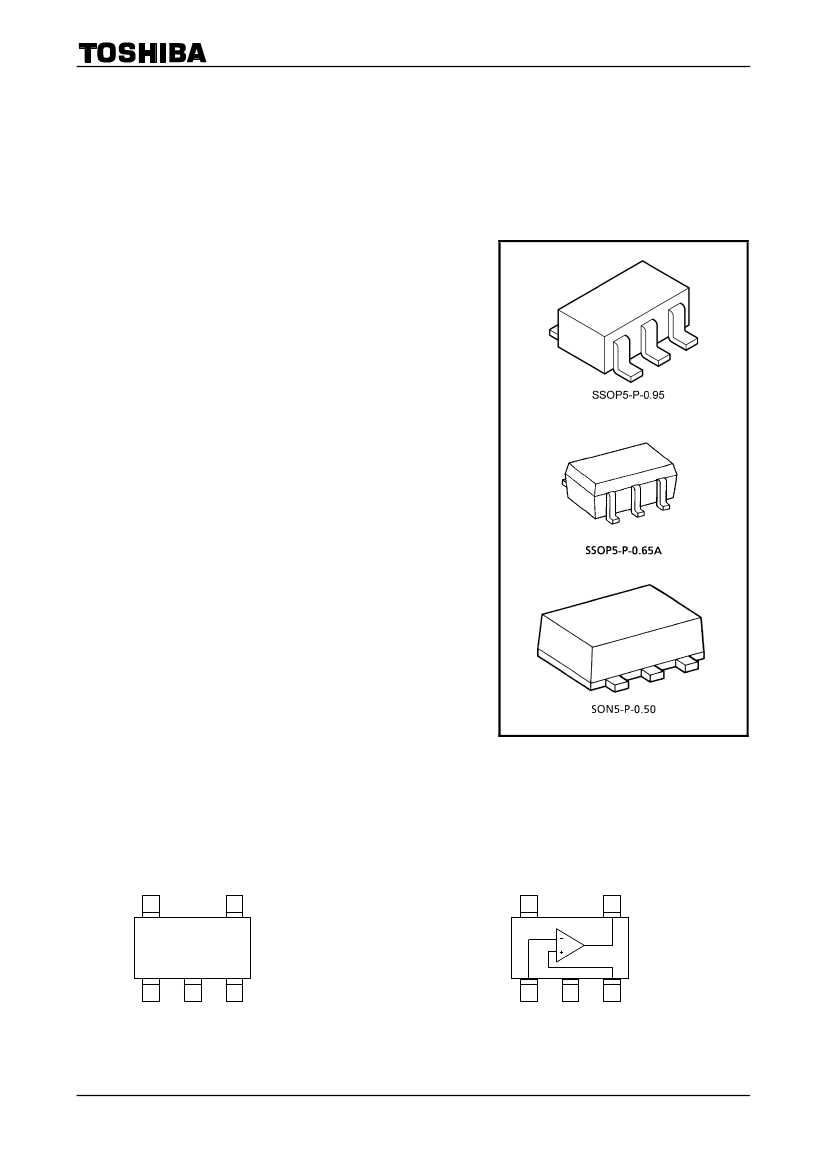

TC75S57F/FU/FE

TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic

TC75S57F, TC75S57FU, TC75S57FE

Single Comparator

The TC75S57F/TC75S57FU/TC75S57FE is a CMOS general-

purpose single comparator. The device can operate off a single

power supply and draws a lower supply current than a

conventional bipolar general-purpose comparator. This device’s

push-pull output stage can be directly connected to TTL or CMOS

logic ICs, among others.

TC75S57F

Features

•

Low-current power supply

Single power supply operation

Wide common mode input voltage range : V

to V

−

0.9 V

Push-pull output circuit

Low input bias current

Small package

: I

= 100

μA

(typ.)

TC75S57FU

TC75S57FE

Weight

SSOP5-P-0.95 : 0.014 g (typ.)

SSOP5-P-0.65A : 0.006 g (typ.)

SON5-P-0.50

: 0.003 g (typ.)

Marking

(top view)

Pin Connection

(top view)

OUT

IN (−)

IN (+)

Start of commercial production

1997-02

2014-03-01

TC75S57F(TE85L,F) Related Products

	TC75S57F(TE85L,F)	TC75S57F,LF	TC75S57FU(TE85L,F)	TC75S57FLF(T
Description	cmos type OP amp smv	IC C0MP GP CMOS PUSH-PULL SMV	IC C0MP GP CMOS PUSH-PULL USV	Comparator
Reach Compliance Code	unknow	-	unknown	unknown
Is Samacsys	N	-	N	N
Amplifier type	COMPARATOR	-	COMPARATOR	COMPARATOR
Base Number Matches	1	-	1	1
