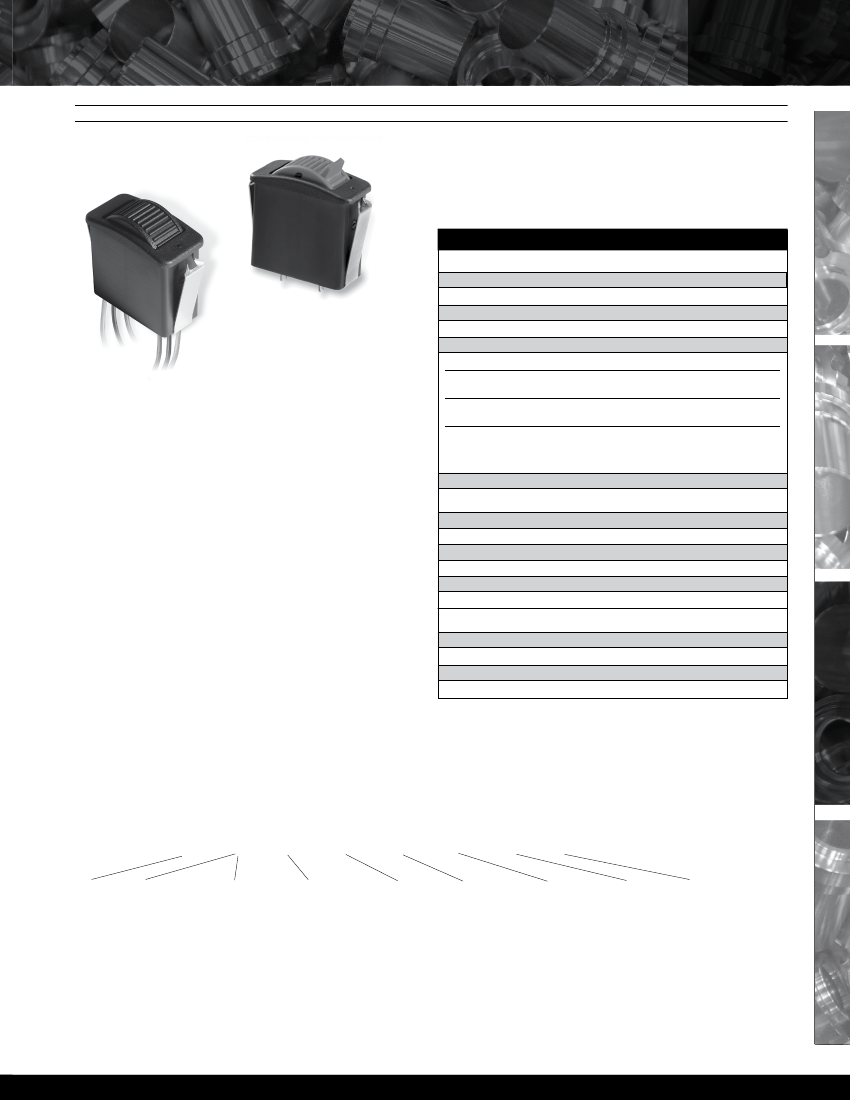

PROPORTIONAL OUTPUT THUMBWHEEL
FRICTION HOLD ACTUATION STYLE THUMBWHEEL
HALL EFFECT
THUMBWHEEL
HTWF
Standard Characteristics/Ratings:
MECHANICAL:
Mechanical Life:
250,000 full forward to full back with center detent
Initial Operating Force at Top of Roller:
2 oz min to 6 oz max @ 25°C
Max Allowable Radial Load:
30.0 lbs.
Knurled
Wheel Style
(with Wires)
Paddle
Wheel Style
(with Pins)
ELECTRICAL RATINGS: Rated at Vcc = 5V @ 25°C
Load = 1mA (4.7KΩ)
Electrical
Supply Voltage
Output Voltage Tolerance
at Center

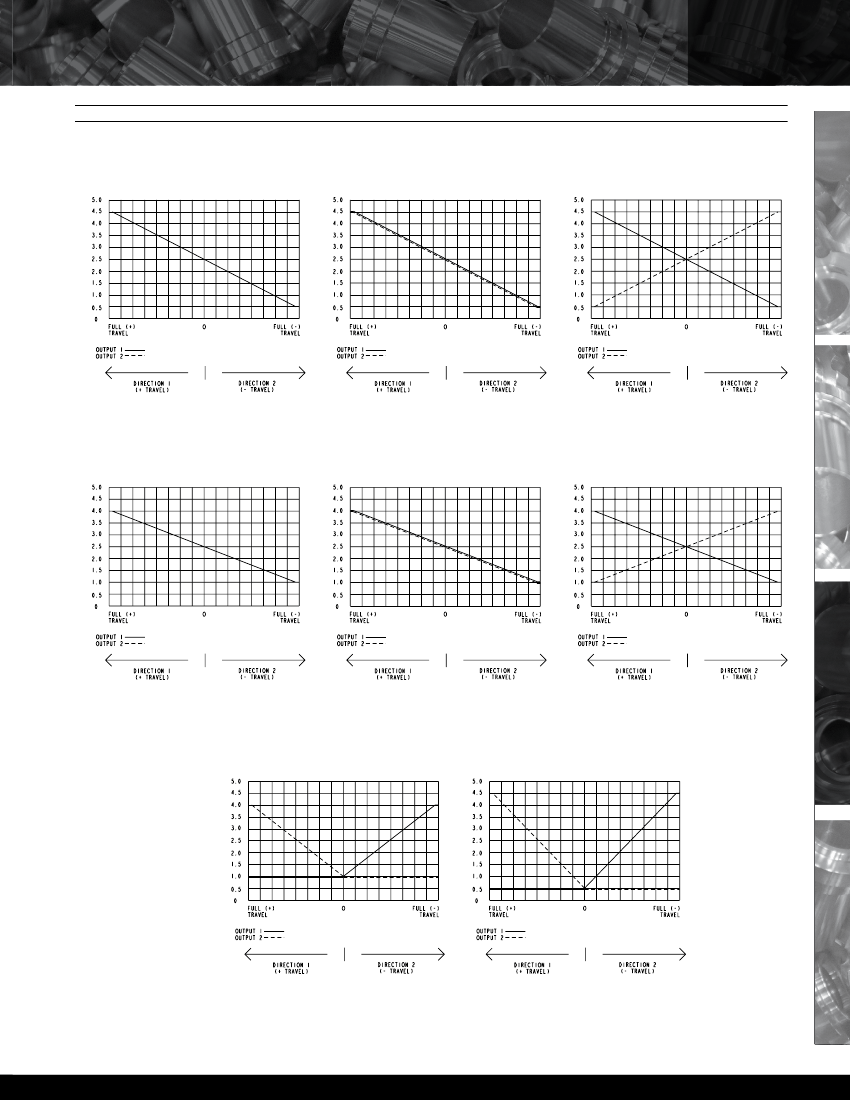

(see graph for output values)
Output Voltage Tolerance
Full Travel
(see graph for output values)
Supply Current Per Sensor
Units
VDC
VDC
@ 5V Vcc
VDC
@ 5V Vcc
mA
Min
4.5
-0.15
-0.25
N/A
Typ
5
N/A
N/A
N/A
Max
5.5
+0.15
+0.25
10
The HTWF Friction Hold Thumbwheel offers a maintained
position, single axis thumbwheel actuator that provides a linear
change in voltage output in either direction from center. Options
include increasing or decreasing voltage output from the center
position to the full travel position, and single or dual (redundant)
outputs per axis. The HTWF Thumbwheel has a rocker style
snap-in mounting feature to accommodate a 1.47” x 0.710” panel
opening. The HTWF provides 250,000 cycle life, full forward/
full backward, is sealed to IP68S and offers excellent EMI/RFI
immunity and a flow through design. Ideal for heavy equipment,
industrial machines or remote control applications.
ELECTRONICS:
Seal Integrity:
Electronics watertight per IP68S, 1 meter
ENVIRONMENTAL:
Operating Temp Range:
-40°C to +85°C
Humidity:
Vibration:
Sand/Dust:
EMI:
RFI:
96% RH, 70°C, 96 hours
Per MIL-810F minimum integrity
Per SAE J1455
Withstand per MIL-STD-461D/SAE J1113-22
Withstand 100V/M 14Hz to 1GHz
Features:
• 250,000 cycle life, full forward/full backward with
center detent
• Maintained control positioning, no return to center
• Hall effect contactless sensing technology
• Number of output options
• Choice of bezel & button colors
• Snaps into 1.47” x 0.710” panel opening
• Electronics sealed to IP68S
• Excellent EMI/RFI immunity
• RoHS/WEEE/Reach compliant

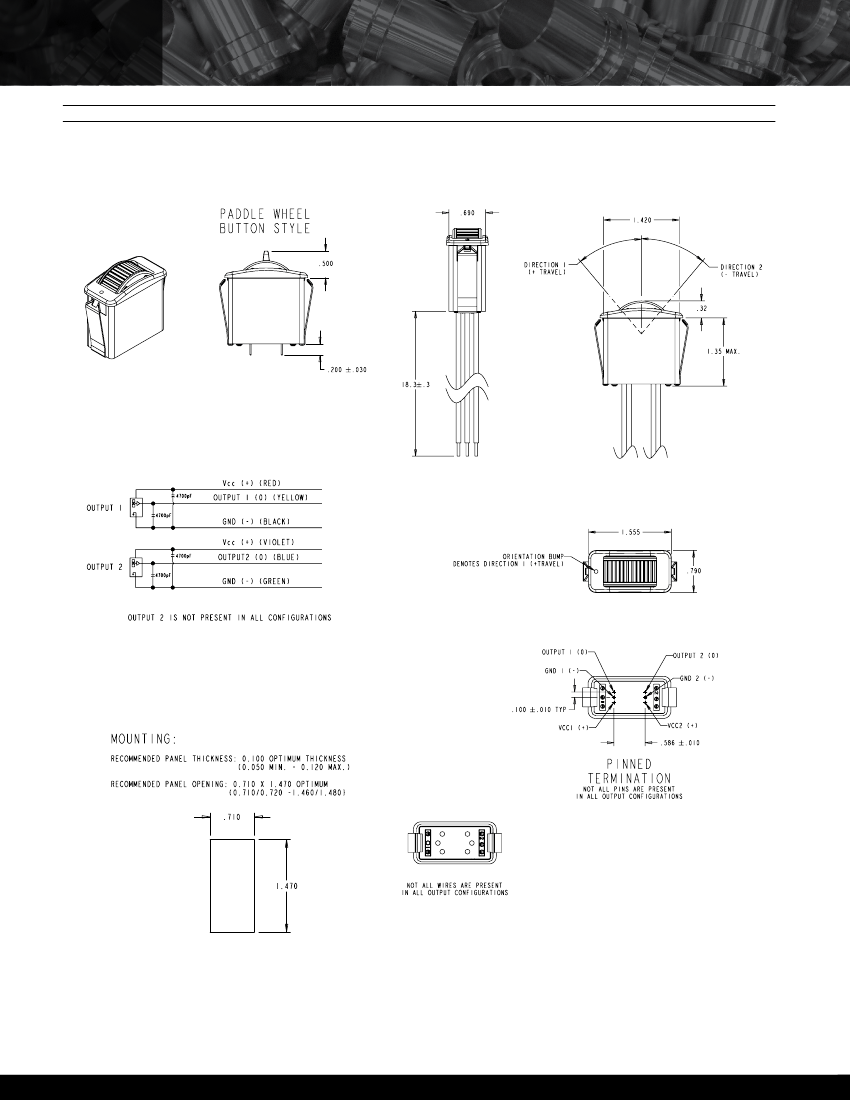

HTWF
Travel
1.
+/- 30°
MATERIALS:
Button:
Bezel:
Snap Arms:
Wires:
Thermoplastic
Thermoplastic
Stainless steel
18 AWG
HALL EFFECT
–
X
X
Output 2
NONE
2.5 +/- 2.0VDC
2.5 -/+ 2.0VDC
NONE
2.5 +/- 1.5VDC
2.5 -/+ 1.5VDC
1.0 - 4.0VDC
0.5 - 4.5VDC
HTWF PART NUMBER CODE
X
X
X
X
X
X
Bezel Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Violet
8.
Gray
9.
White
Output 1
A.
2.5 +/- 2.0VDC
B.
2.5 +/- 2.0VDC
C.
2.5 +/- 2.0VDC
D.
2.5 +/- 1.5VDC
E.
2.5 +/- 1.5VDC
F.
2.5 +/- 1.5VDC
G.
1.0 - 4.0VDC
H.
0.5 - 4.5VDC
Operating Force
1.
4.0 oz.
Button Style
1.
Knurled Wheel
2.
Paddle Wheel
Termination
A.
18 AWG Wires,
18.3” Long,
Stripped Ends
B.
0.025” SQ. Pins
Button Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Violet
8.
Gray
9.
White
Detent (if required)
A.
Detent 2 oz increase
out of center in
both directions*
* Output options A–F do not
have a tolerance on the
center outputs unless
a center detent is selected.
Output options G and H
are only available with
center detent.
