12.0000MHZEQXO-1050BMH: DescriptionCMOS/TTL Output Clock Oscillator, 12MHz Nom, RESIATANCE WELDED, CERAMIC, DIP-14/4; CategoryPassive components oscillator; File Size141KB，2 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

12.0000MHZEQXO-1050BMH Overview

CMOS/TTL Output Clock Oscillator, 12MHz Nom, RESIATANCE WELDED, CERAMIC, DIP-14/4

12.0000MHZEQXO-1050BMH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	20.4mm x 12.8mm x 5.3mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrie
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

FEATURES

EQXO-1000BM and 3000BM OSCILLATORS

14 pin Dual-in-Line MIL SPECIFICATION

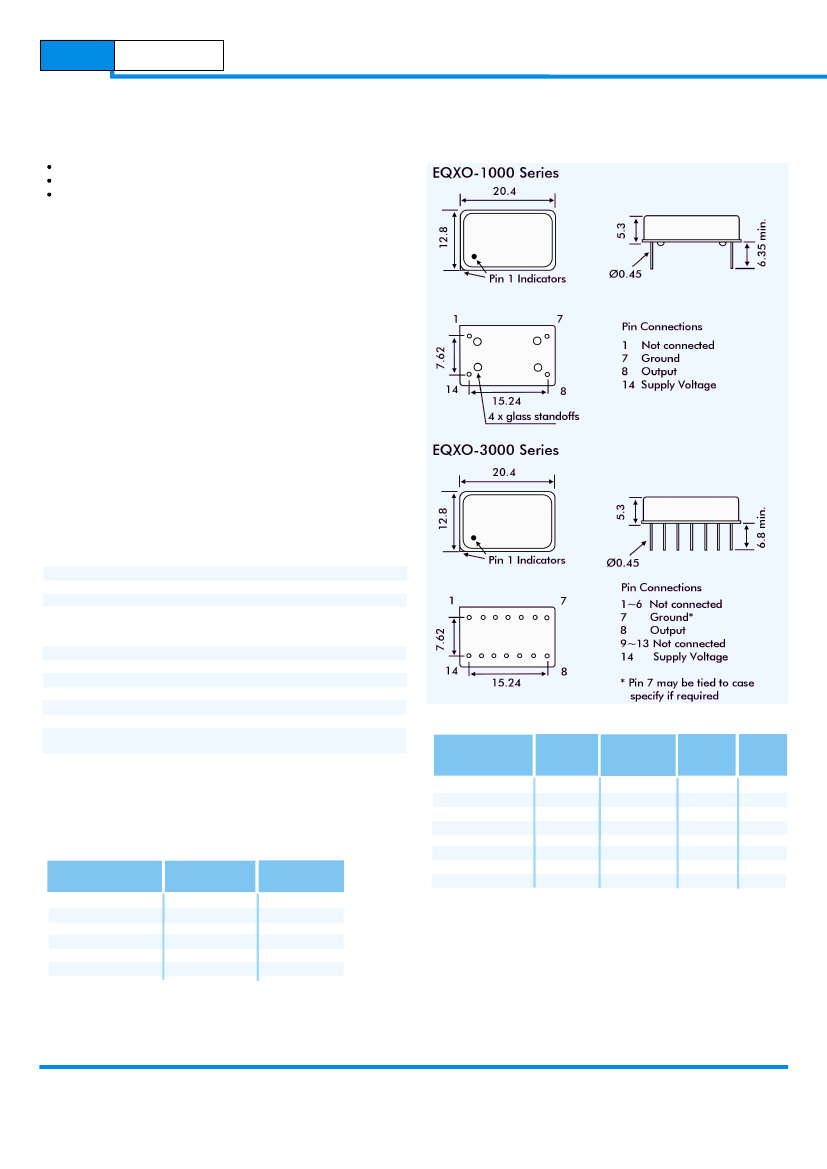

OUTLINE & DIMENSIONS

Page 1 of 2

Ceramic substrate and ruggedized mounts for high reliability

Industry-standard 14 pin DIL package, 4 pin or 14 pin

Full screening to MIL-O-55310C, Class B available

Radiation tolerant version favailable for space applications

DESCRIPTION

EQXO-1000BM and 3000BM series oscillators are designed and

manufactured by Euroquartz Ltd for aerospace, defence and similar

applications where high-reliability clock oscillators are required. The

oscillator is produced in the industry-standard 14 pin DIL oscillator

package. EQXO-1000BM series oscillators incorporates a custom

designed, all-ceramic oscillator substrate and a ruggedized three-

point crystal mounting system inside a hermetically-sealed metal

package. The specification ensures that the oscillators provide an

accurate and reliable source of clock signals regardless of the severity

of the environment in which it operates. EQXO-3000BM series

oscillators are identical to EQXO-1000BM series but have 14 pins for

extra mechanical security.

RADIATION TOLERANCE

For equipment to be used in space or the upper atmosphere the

EQXO-1000BM and 3000BM series oscillators may be produced in a

radiation tolerant version. Designated EQXO-x000BMH, this variant of

the oscillator will withstand ionizing radiation to resist electrical

failures for a total radiation dose of 40krad(SI).

SPECIFICATION

Model No:

Frequency Range:

Calibration Tolerance at 25°C:

Frequency Stability*

EQXO-1100BM:

EQXO-1050BM:

Supply Voltage:

Output:

Ageing:

Symmetry:

Operating Temperature Range:

Storage Temperature Range:

Construction:

EQXO-1000BM or 3000BM

30kHz to 70.0MHz

±10ppm to ±25ppm

±100ppm over -55° to +125°C

±50ppm over -55° to +125°C

+5.0 Volts DC±10%

CMOS, 50pF/10 TTL loads

±3pm max in first year

45%/55%

-55° to +125°C

Ceramic substrate, resistance

welded can.

MODEL NUMBERS

Model Number

* Frequency stability is inclusive of frequency adjustment at 25°C and

any variations due to load change, ageing, supply voltage change

(±10%) and variations attributable to shock and vibration, (see

Qualification Approval and Environmental Specification.)

Frequency

Calibration

Radiation

Stability

Tolerance

Tolerant

-55° to +125°C

at 25°C

No. of

Pins

CURRENT CONSUMPTION /RISE & FALL TIMES

Frequency Range

30kHz ~ 1.0MHz

1.0MHz ~ 4.0MHz

4.0MHz ~ 20MHz

20MHz ~ 35MHz

35MHz ~ 50MHz

50MHz ~ 65MHz

Supply Current Rise/Fall Time

(ns max.)

(mA max.)

EQXO-1050BM

EQXO-1100BM

EQXO-1050BMH

EQXO-1100BMH

EQXO-3050BM

EQXO-3100BM

EQXO-3050BMH

EQXO-3100BMH

±10ppm

±25ppm

±10ppm

±25ppm

±10ppm

±25ppm

±10ppm

±25ppm

±50ppm

±100ppm

±50ppm

±100ppm

±50ppm

±100ppm

±50ppm

±100ppm

Yes

PART NUMBER GENERATION

Frequency / Model Number / Screening (if

required)

Example:

10.000MHz EQXO-1100BMH Screened

MIL SCREENING

EQXO-1000BM series oscillators may be ordered screened i.a.w. the

schedules detailed in 'Qualification Approval and Environmental

Specification' on page 2 of this specification.

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
