CL21C3R3CBAGNNP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL21C3R3CBAGNNP

CL21C3R3CBAGNNP: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 7.5758% +Tol, 7.5758% -Tol, C0G, -/+30ppm/Cel TC, 0.0000033uF, 0805,; CategoryPassive components capacitor; File Size244KB，17 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL21C3R3CBAGNNP Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 7.5758% +Tol, 7.5758% -Tol, C0G, -/+30ppm/Cel TC, 0.0000033uF, 0805,

CL21C3R3CBAGNNP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	817636104
package instruction	, 0805
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Philippines, South Korea
ECCN code	EAR99
YTEOL	2
capacitance	0.0000033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.65 mm
JESD-609 code	e3
length	2 mm
multi-layer	Yes
negative tolerance	7.5758%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	7.5758%
Rated (DC) voltage (URdc)	50 V
series	CL(GENERAL)
size code	0805
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm

Preview

Download Datasheet

View All

General Capacitors

Feature

•Wide

selection of size : from 0402 to 2220

•Highly

reliable tolerance and high speed automatic chip placement on PCBs

•Wide

capacitance range

•Wide

temperature compensation and voltage range

: from C0G to Y5V and from 6.3V to 50V

•Highly

reliable performance

•Highly

resistant termination metal

•Tape

& reel for surface mount assembly

Application

•HHP,

DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine

•Tuner

(Product code C is suitable.)

Medical, Aviation, Automobile device should be following a special specification.

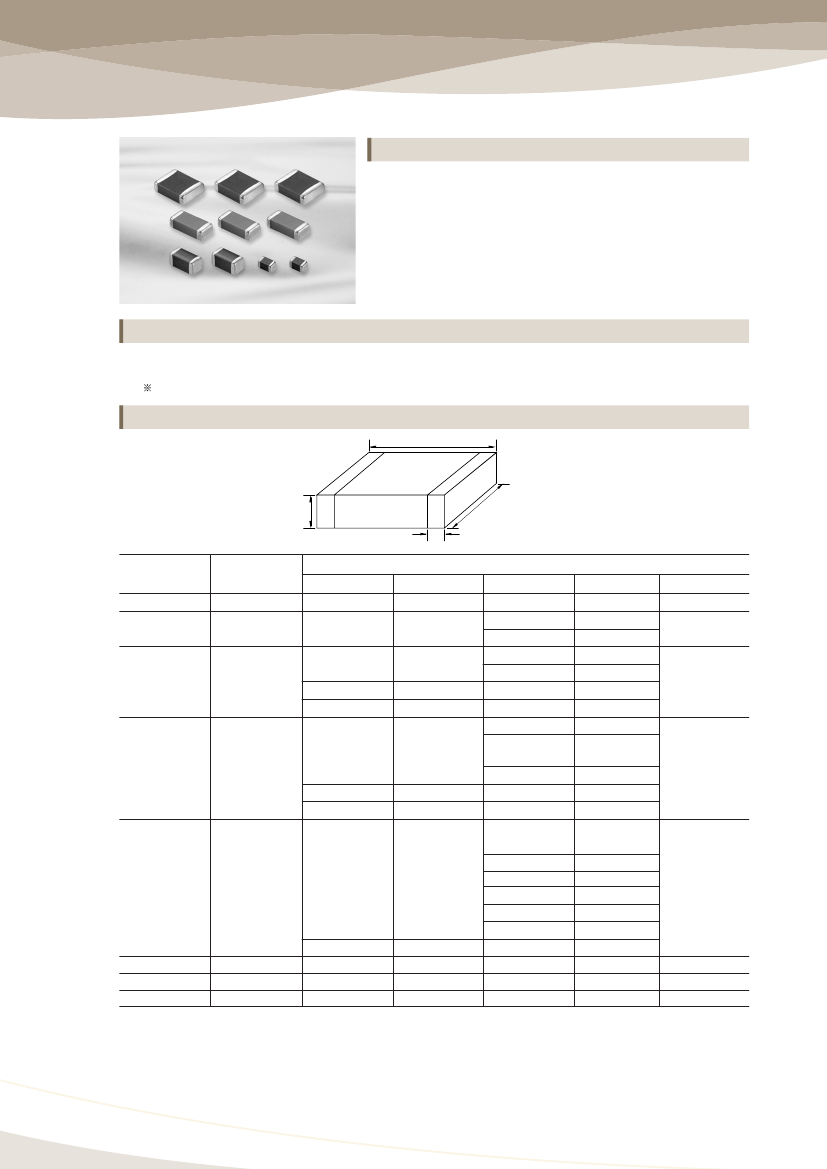

Structure and Dimensions

Size Code

EIA Code

0402

0603

Dimension(mm)

1.00±0.05

1.60±0.10

2.00±0.10

0.50±0.05

0.80±0.10

1.25±0.10

1.25±0.15

1.25±0.20

1.60±0.20

0.50±0.05

0.50+0.0/-0.1(*)

0.80±0.10

0.85±0.10

1.25±0.10

1.25±0.15

1.25±0.20

0.60±0.10

0.85±0.15

0.85±0.10(*)

1.15±0.10(*)

1.25±0.15

1.60±0.20

0.85±0.15

0.85±0.10(*)

0.90±0.10(*)

1.60±0.20

1.80±0.20(*)

2.00±0.20

2.50±0.20

2.50±0.30

2.00±0.20

3.20±0.30

Thickness Code

0.50±0.30

0.2+0.15/-0.1

0.30±0.20

0805

2.00±0.15

2.00±0.20

3.20±0.20

0.5+0.2/-0.3

1206

3.20±0.15

3.20±0.20

1.60±0.15

1.60±0.20

1210

3.20±0.30

2.50±0.20

0.60±0.30

1808

1812

2220

3.20±0.40

4.50±0.40

5.70±0.40

2.50±0.30

2.00±0.20

3.20±0.30

5.00±0.40

0.80±0.30

1.00±0.30

■

* Mark is only applicable to “L” code , 12

code in part number.
