DM74125N datasheet, PDF - EEWORLD Datasheet

DM74125N: DescriptionIC buff tri-ST QD N-inv 14-dip; Categorylogic logic; File Size199KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

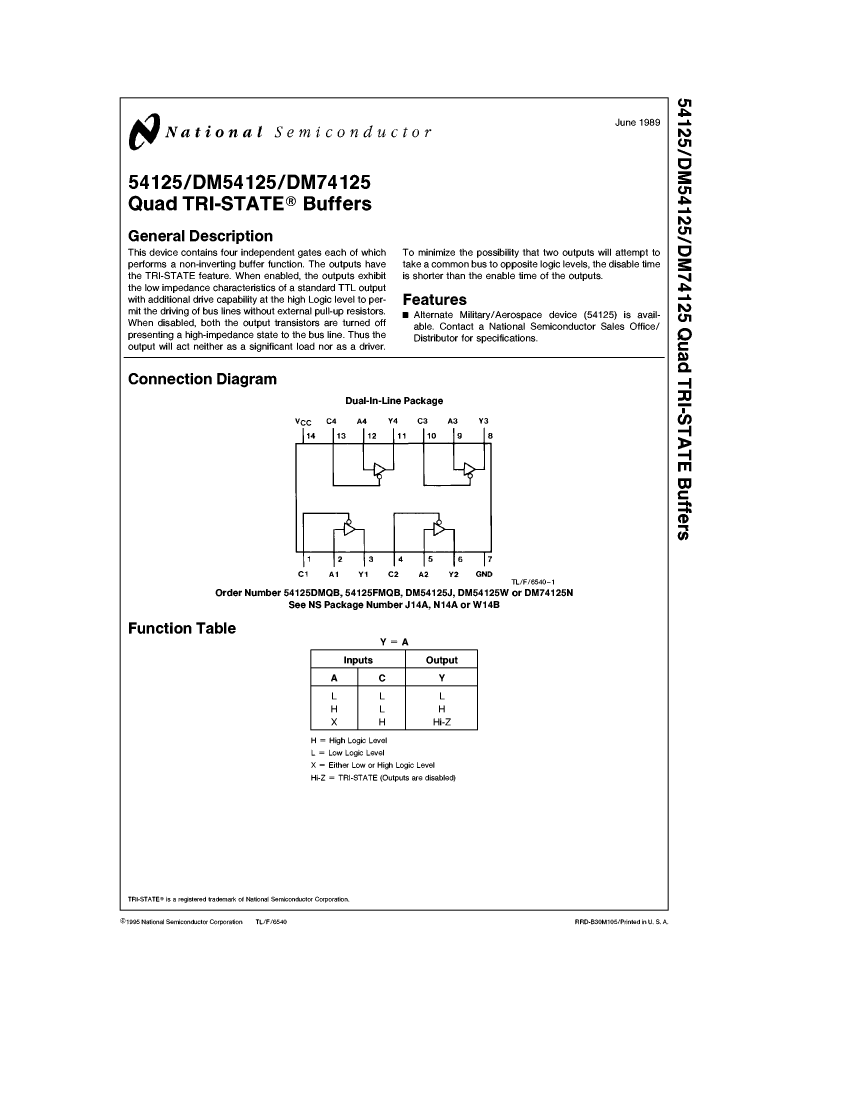

DM74125N Overview

IC buff tri-ST QD N-inv 14-dip

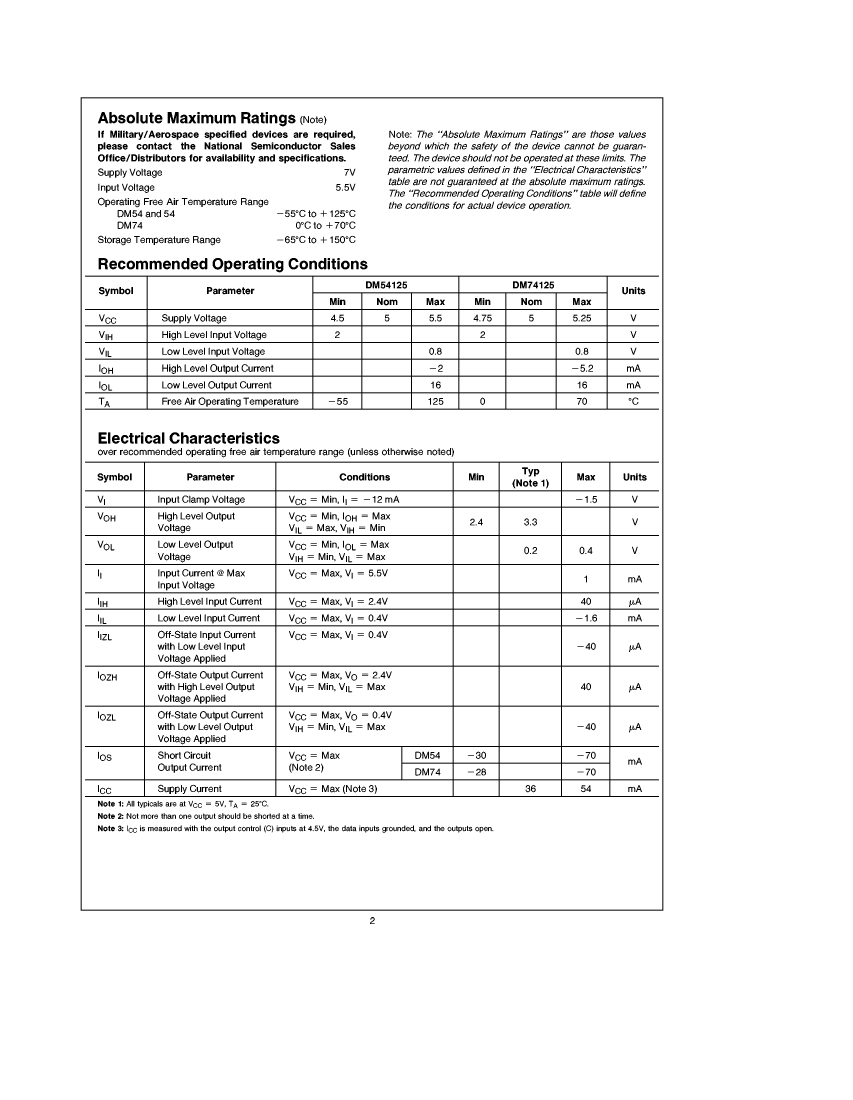

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.016 A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE

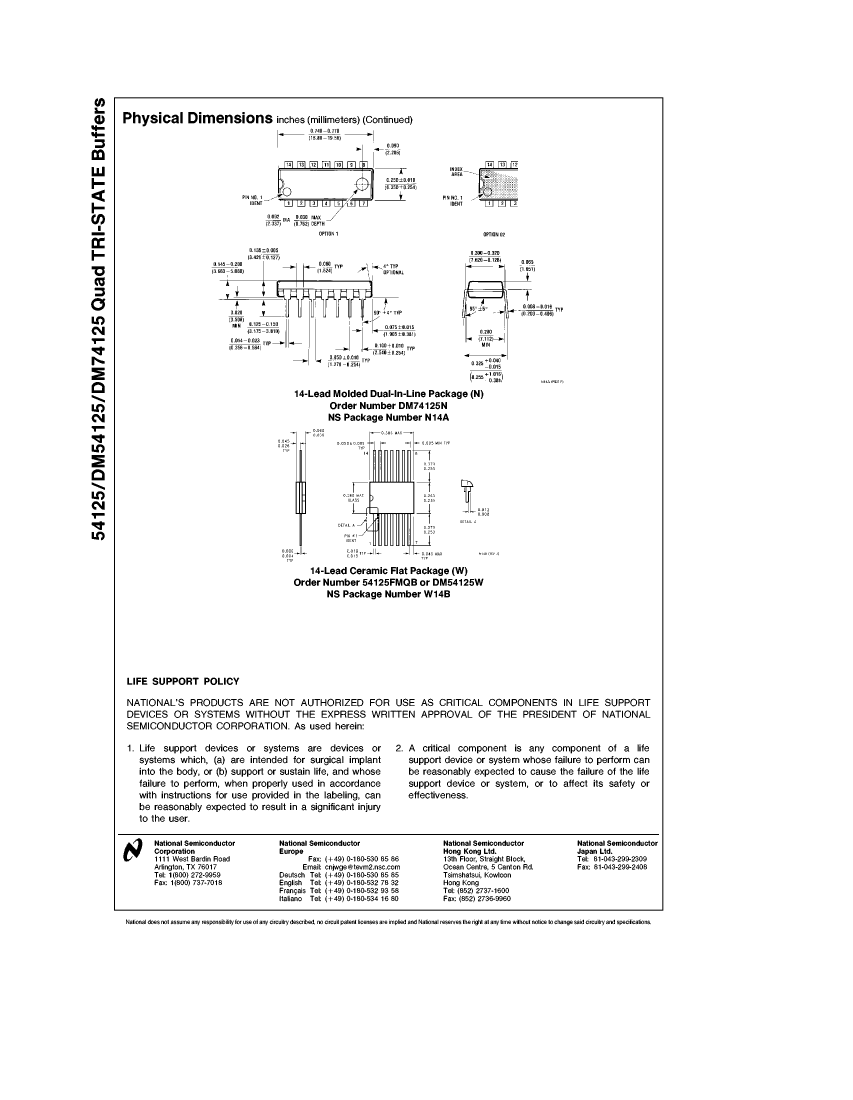

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	54 mA

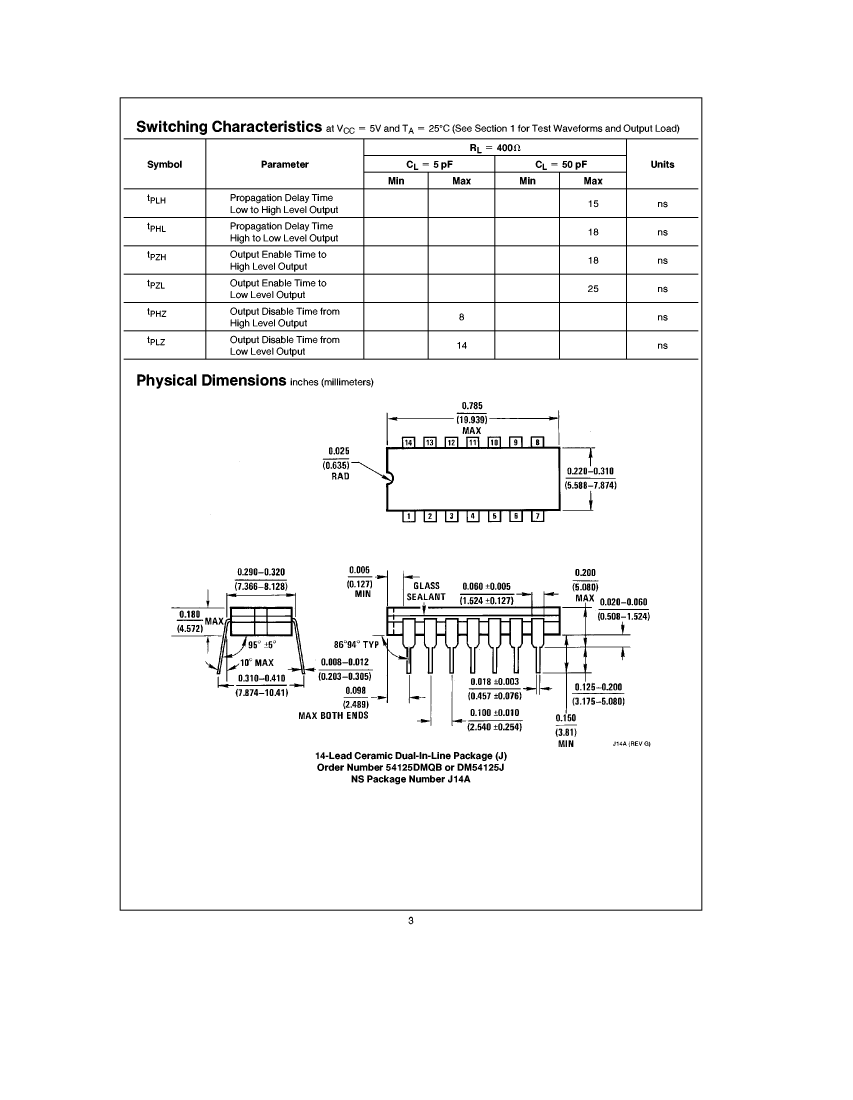

Prop。Delay @ Nom-Su	18 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	DM74125N
Description	IC buff tri-ST QD N-inv 14-dip
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.016 A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	54 mA
Prop。Delay @ Nom-Su	18 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
