5962R9663901VXC datasheet, PDF

5962R9663901VXC: Description4000/14000/40000 SERIES, DUAL 4-INPUT AND-OR-INVERT GATE, CDFP14; Categorylogic logic; File Size275KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

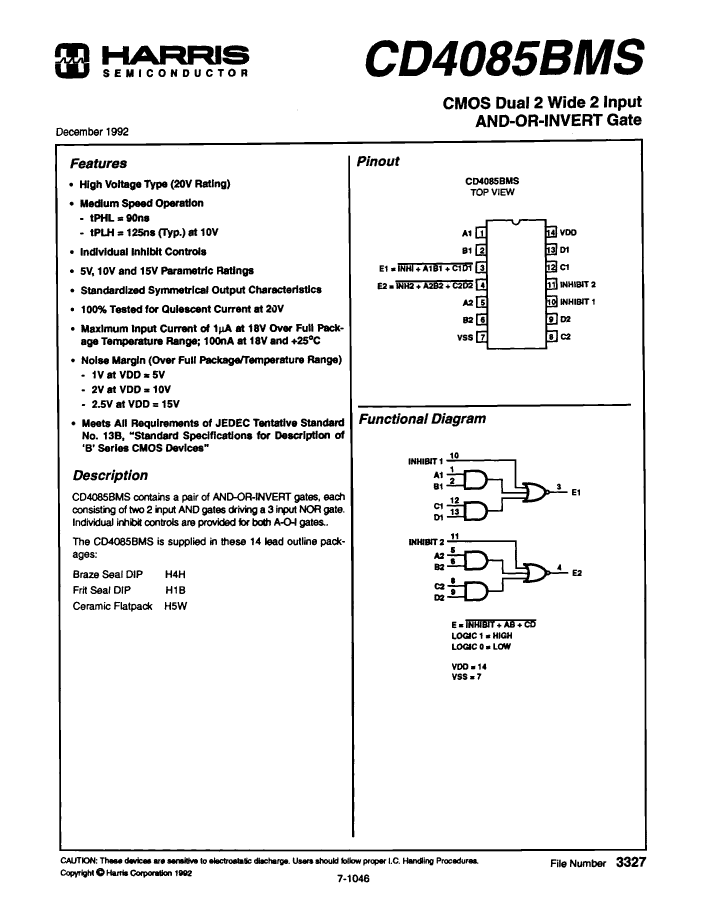

5962R9663901VXC Overview

4000/14000/40000 SERIES, DUAL 4-INPUT AND-OR-INVERT GATE, CDFP14

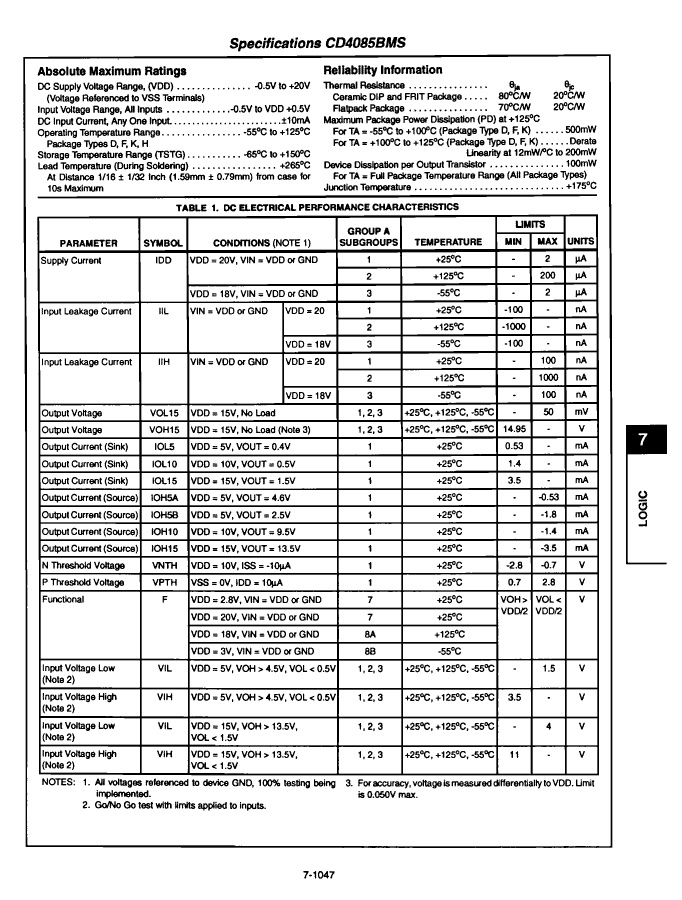

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknow
Other features	RADIATION HARDENED; 2-2 INPUT; WITH EXPAND INPUT
series	4000/14000/40000
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
length	9.525 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE
MaximumI(ol)	0.00064 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5/15 V

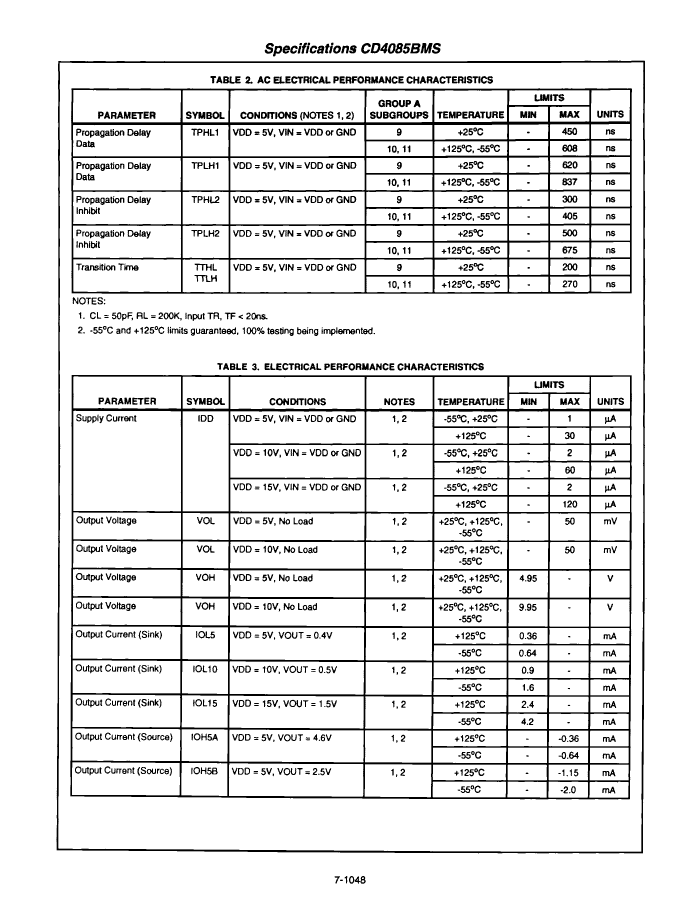

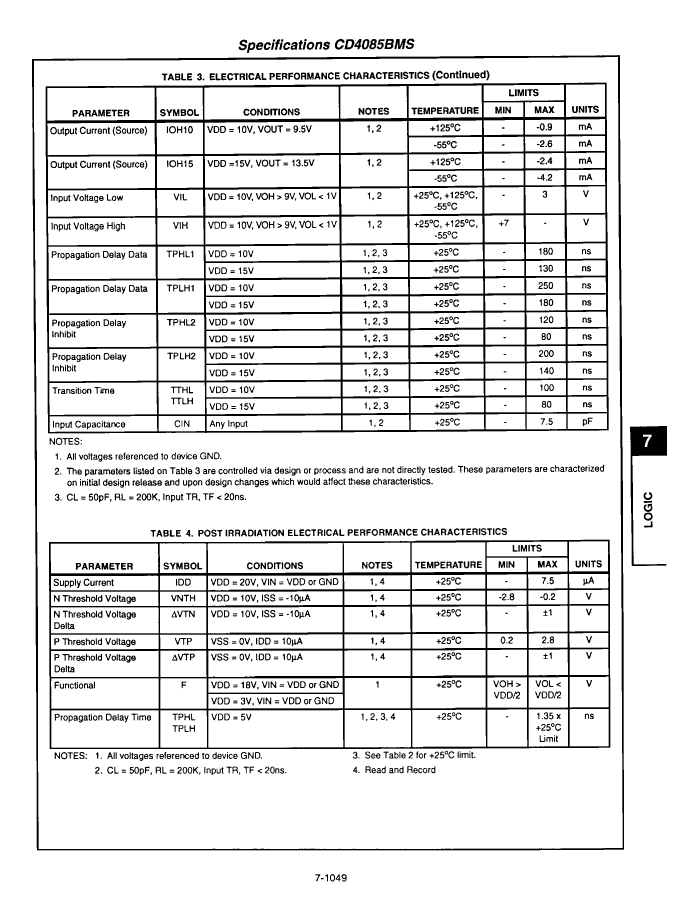

Prop。Delay @ Nom-Su	837 ns
propagation delay (tpd)	837 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

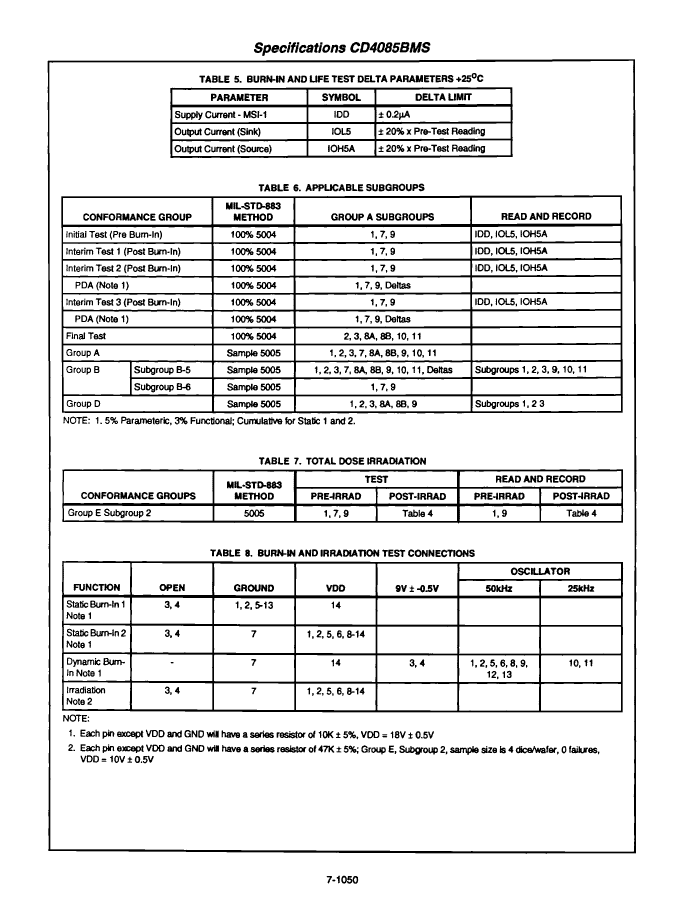

total dose	100k Rad(Si) V
width	6.285 mm
Base Number Matches	1
