Rakon Product Proposal
CFPT9050
-------
SMD Temperature Compensated Voltage Controlled Crystal Oscillator (PLUTO)
-------
-------
A highly versatile series of surface mountable 14.7 x 9.2 x 6.2 mm Temperature
Compensated Voltage Controlled Crystal Oscillators (TCVCXOs) for applications where
small size and high performance are prerequisites.
-------
Product description
-------
This CFPT9050 uses Rakon's proprietary ASIC 'Pluto™', a single chip oscillator and analogue
compensation circuit, capable of sub 0.3ppm performance. Its wide frequency range,
operating temperature range, drive capability, coupled with its high stability and linear
frequency pulling, make it the ideal reference oscillator. Its ability to function down to a
supply voltage of 2.4 volts and low power consumption makes it particulary suitable for
mobile applications.
-------
Applications
• Communications
• Other
-------
Features
• Low power consumption
• Sub 0.3ppm stability over extended temperature range
• Wide frequency range
-------
Specifications
-----
1.0
Line
1.1
1.2
1.3
-----
SPECIFICATION REFERENCES
Parameter
Model Description
RoHS compliant
Package size available
Description
CFPT9050
Yes, part numbers with suffix 'LF' (non-RoHS version available upon request)
14.7mm x 9.2mm
2.0
Line
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
-----
FREQUENCY CHARACTERISTICS
Parameter
Frequency range
Frequency calibration
Reflow shift
Frequency stability
over temperature
Temperature range
Supply voltage
stability
Load sensitivity
Long term stability
Long term stability
Long tem stability
Long term stability
Test Condition
Frequency range available dependent on output type: refer to
note 1
Initial calibration @ 25°C
Measured
≥
60 minutes after reflow
Stability reference to (Fmax + Fmin)/2
Operating temperature range over which temperature stability is
measured.
Supply voltage varied
±10%
at 25°C (dependent on frequency and
output type). Typical:
15pF±5pF (dependent on frequency and output type). Typical:
first year,
≤
20MHz
first year, > 20MHz
10 years,
≤
20MHz
10 years, > 20MHz
Value
1 to 80
±0.5 max
±1 max
±0.3 to 2.5
-55 to 105
±0.2
±0.2
±1 max
±2 max
±3 max
±5 max
Unit
MHz
ppm
ppm
ppm
°C
ppm
ppm
ppm
ppm
ppm
ppm
Page 1
Rakon Product Proposal
3.0
Line
3.1
3.2
3.3
3.4
3.5
POWER SUPPLY
Parameter
Supply voltage
Current Sinewave
Current HCMOS
Current ACMOS
Current Clipped
Sinewave
Test Condition
Nominal supply voltage range
dependent on frequency
typically: 1+frequency(MHz)*supply(V)*{load(pF)+15}*10⁻³mA
e.g 20MHz, 5V, 15pF = 4mA
typically: 1+frequency(MHz)*supply(V)*{load(pF)+23}*10⁻³mA
typically: 1+frequency(MHz)*1.2*{load(pF) +30}*10⁻³mA
Value
2.4 to 6
6 to 12
Unit
V
mA
mA
mA
mA
-----
4.0
Line
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
-----
CONTROL VOLTAGE
Parameter
Control voltage range
Control voltage range
Control voltage range
Frequency tuning
Port input impedance
Linearity
Slope
Modulation bandwidth
Positive
2 min
kHz
Test Condition
Without reference voltage; Vs=5.0V
Without reference voltage; Vs=3.3V
With reference voltage: 0 to Vref
Standard ageing adjustment
≤
20MHz:
±5ppm,
> 20MHz:
±7ppm.
Increased pulling optional (see note 2)
Measured between control voltage and GND pin
±5 to 20
100 min
1 max
Value
0.5 to 4.5
0.65 to
2.65
Unit
V
V
V
ppm
kΩ
%
5.0
Line
5.1
5.2
5.3
5.4
OSCILLATOR OUTPUT-AC COUPLED CLIPPED SINEWAVE
Parameter
Output waveform
Output voltage level
Output load
resistance
Output load
capacitance
Test Condition
AC coupled clipped sinewave
Peak to peak voltage measured at minimum supply voltage
0.8 min
10
10
V
kΩ
pF
Value
Unit
-----
6.0
Line
6.1
6.2
6.3
6.4
6.5
OSCILLATOR OUTPUT-AC COUPLED SINEWAVE
Parameter
Output waveform
Output voltage level
Output voltage level
Output load
resistance
Output load
capacitance
Test Condition
AC coupled sinewave
Peak to peak voltage measured at minimum supply voltage
≤
20MHz
Peak to peak voltage measured at minimum supply voltage
>20MHz
Operating range
Operating range
1 min
0.5 min
10
10
V
V
kΩ
pF
Value
Unit
-----
7.0
Line
7.1
7.2
7.3
7.4
7.5
7.6
7.7
-----
OSCILLATOR OUTPUT-SQUARE HCMOS
Parameter
Output waveform
Output voltage level
low
Output voltage level
high
Rise and fall times
Rise and fall times
Duty cycle
Load
Measured with Vs = 3.3V
Measured with Vs = 5.0V
Measured at 50% level
Test Condition
Square HCMOS
0.1 max
0.9 min
8 max
7 max
45 to 55
15 max
Vs
Vs
ns
ns
%
pF
Value
Unit
Page 2
Rakon Product Proposal
8.0
Line
8.1
8.2
8.3
8.4
8.5
8.6
8.7
-----
OSCILLATOR OUTPUT-SQUARE ACMOS
Parameter
Output waveform
Output voltage level
low
Output voltage level
high
Rise and fall times
Rise and fall times
Duty cycle
Load
Measured with Vs = 3.3V
Measured with Vs = 5.0V
Measured at 50% level
Test Condition
Square ACMOS
0.1 max
0.9 min
3 max
2 max
40 to 60
50 max
Vs
Vs
ns
ns
%
pF
Value
Unit
9.0
Line
9.1
9.2
-----
TRISTATE CONTROL
Parameter
Output enabled
Output disabled
Test Condition
Pad 2 open circuit or high
Pad 2 low
Value
0.6 min
0.2 max
Unit
Vs
Vs
10.0
Line
10.1
PHASE NOISE
Parameter
SSB phase noise
power density at 1Hz
offset
SSB phase noise
power density at
10Hz offset
SSB phase noise
power density at
100Hz offset
SSB phase noise
power density at 1kHz
offset
SSB phase noise
power density at
10kHz offset
SSB pase noise power
density at 100kHz
offset
Test Condition
Typical values for a 13MHz oscillator at 25°C
Value
-65
Unit
dBc/Hz
10.2
Typical values for a 13MHz oscillator at 25°C
-95
dBc/Hz
10.3
Typical values for a 13MHz oscillator at 25°C
-120
dBc/Hz
10.4
Typical values for a 13MHz oscillator at 25°C
-135
dBc/Hz
10.5
Typical values for a 13MHz oscillator at 25°C
-140
dBc/Hz
10.6
Typical values for a 13MHz oscillator at 25°C
-145
dBc/Hz
-----
11.0
Line
11.1
OTHER FEATURES
Parameter
Reference voltage,
Vref
Description
Available on request. Please contact Rakon
-----
12.0
Line
12.1
12.2
12.3
-----
ENVIRONMENTAL
Parameter
Shock
Vibration
Storage temperature
Description
IEC 60068-2-27 test Ea. 980 m/s² duration, half sine pulse, 3 shocks in each direction along
three mutually perpendicular axes
IEC 60068-2-6 test Fc. 10-60Hz 1.5mm displacement, 60-2000Hz at 98.1 m/s² , 30 minutes in
each of three mutually perpendicular axes at 1 octave per minute
-55°C to 125°C
Page 3
Rakon Product Proposal
13.0
Line
13.1
13.2
13.3
13.4
13.5
13.6
-----
PIN CONNECTIONS
Parameter
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Description
Voltage Control (optional, if not used do not connect)
Tri-state control
GND
Output
Vref (optional, if not used do not connect)
+Vs
14.0
Line
14.1
14.2
14.3
14.4
-----
MARKING
Parameter
Type
Line 1
Line 2
Line 3
Description
Laser marked
[RAKON Exxxx] RAKON, Part Number (Exxxx)
[
xx.x MHz
] Frequency (MHz)
] Pad 1 / Static sensitivity identifier (Δ), Device date / location code (YYWWL)
[
Δ
YYWWL
15.0
Line
15.1
15.2
-----
MANUFACTURING INFORMATION
Parameter
Reflow shift
Packaging description
Description
Solder reflow processes as per reflow profile diagram. Solderability: MIL-STD-202, method
208, category 3
Quantities
≥
100 pieces will be supplied on tape & reel
16.0
Line
16.1
16.2
NOTES
Parameter
Note 1
Note 2
Description
Frequency range available dependent on output type. HCMOS: 1-50MHz, sinewave: 8-50MHz,
ACMOS: 1-80MHz, clipped sinewave: 8-50MHz
Higher pulling may be available as a custom option depending on nominal frequency and
stabililty - please contact the sales office: sales@rakon.com
-------
Page 4
Rakon Product Proposal

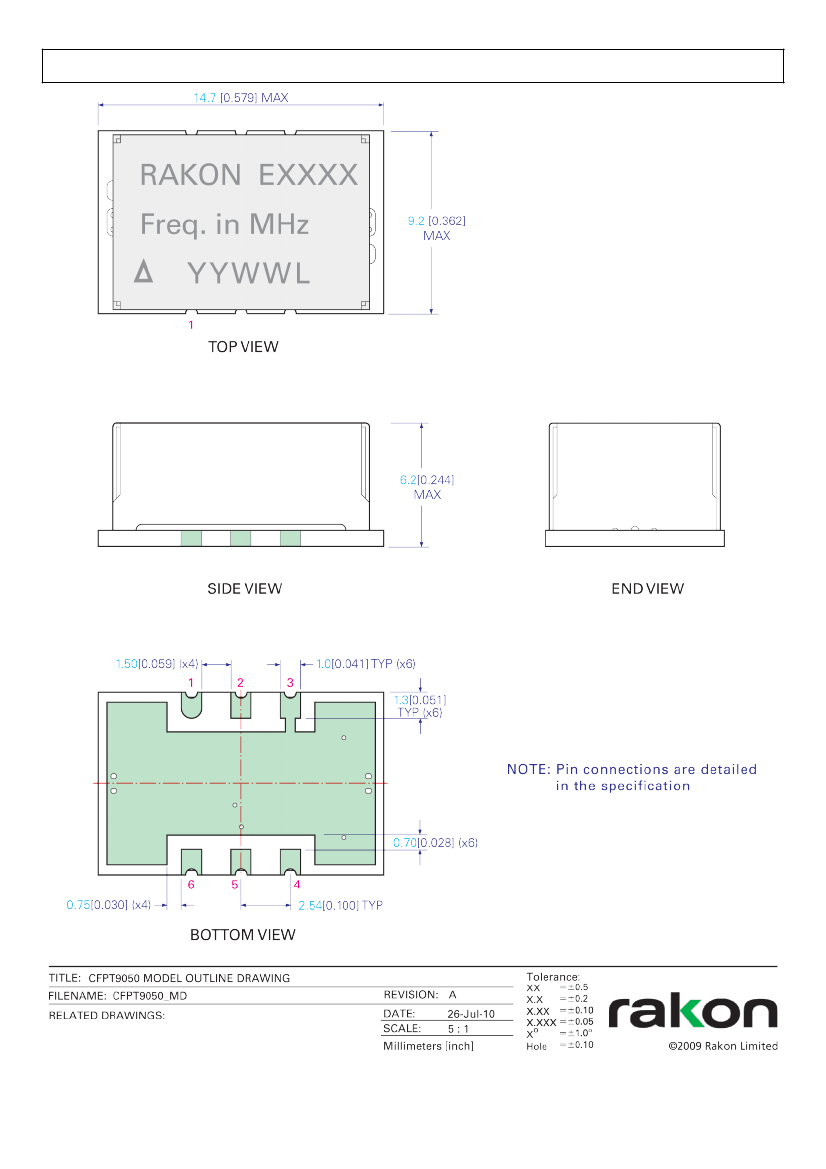

Drawing Name: CFPT9050 Model Drawing
Page 5
