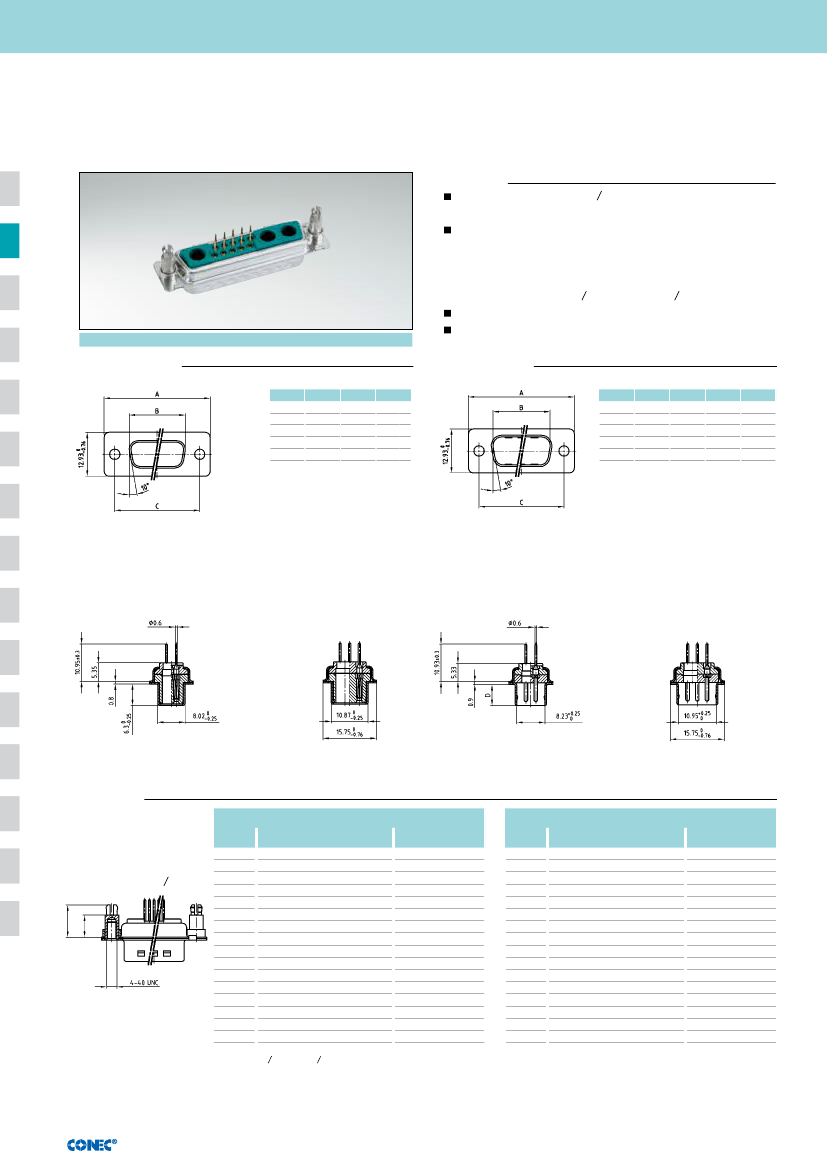

C ombi n ati o n D- S UB Co nn e ctors
Combination D-SUB with signal contacts
Solder pin – Straight – Precision machined contacts
Description
RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 228329
Threaded rear spacer .291" 7.4 mm
(the same installation high as D-SUB Standard on PCB)
Mounting styles:
- with 4-40 UNC threaded rear spacer with PCB clip (M3 on request)
- with 4-40 UNC front and threaded rear spacer with PCB clip
(M3 on request)
for PCB thickness .063" 1.6 mm and .091" 2.3 mm
Quality class 3 (also available in quality class 1)
Shell: Steel tin plated
(brass tin plated or stainless steel available on request)
Socket connector
Shellsize
1
2
3
4
5
Plug connector
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
-0.25
16.46
24.79
38.50
54.96
52.55
c
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
Shellsize
1
2
3
4
5
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
+0.25
16.79
25.12
38.84
55.30
52.68
c
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
D
-0.30
6.12
6.12
5.99
5.99
5.99
Shell size 1-4
Shell size 5
Shell size 1-4
Shell size 5

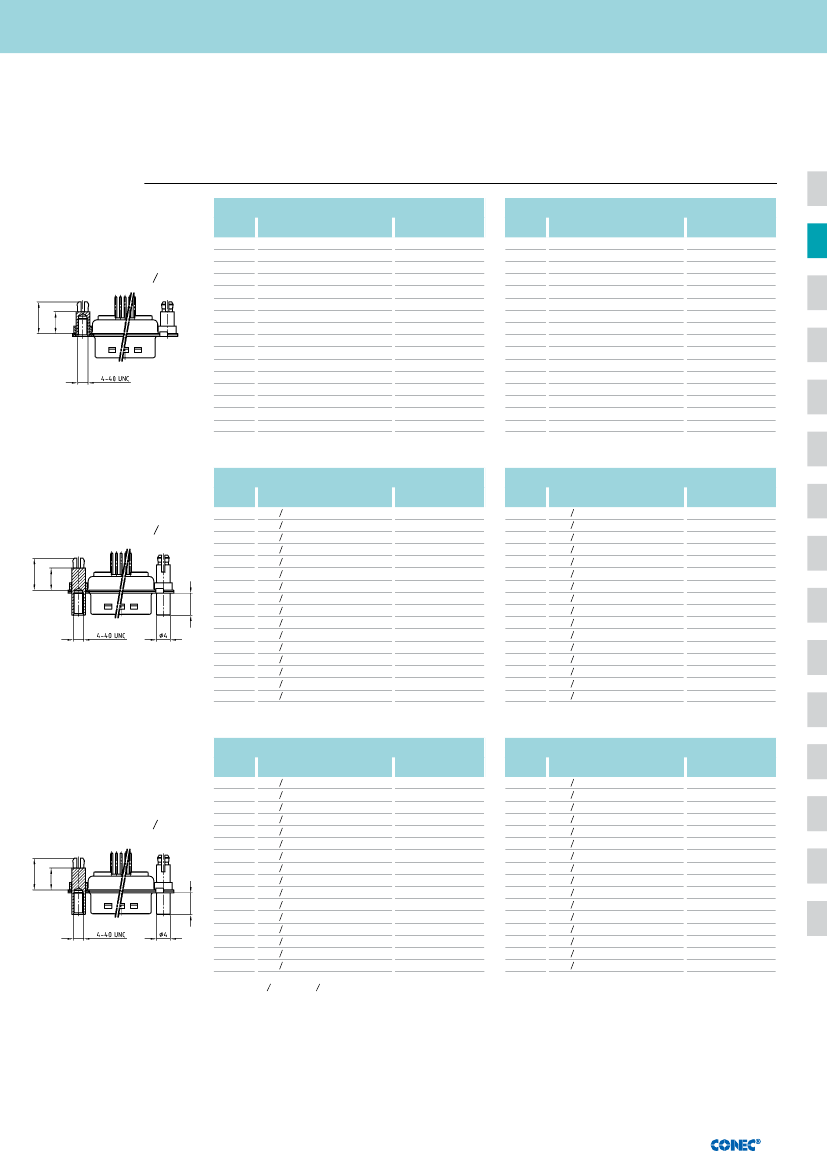

Order data
Socket connector
Design
5W1
7W2
11W1
9W4
13W3
17W2
21W1
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Mounting style 4-40 Unc
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Part number
3005W1SAR99E20X
3007W2SAR99E20X
3011W1SAR99E20X
3009W4SAR99E20X
3013W3SAR99E20X
3017W2SAR99E20X
3021W1SAR99E20X
3013W6SAR99E20X
3017W5SAR99E20X
321WA4SAR99E20X
3025W3SAR99E20X
3027W2SAR99E20X
3024W7SAR99E20X
3036W4SAR99E20X
3043W2SAR99E20X
3047W1SAR99E20X
Plug connector
Design
5W1
7W2
11W1
9W4
13W3
17W2
21W1
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Mounting style 4-40 Unc
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Threaded rear spacer PCB clip
Part number
3005W1PAR99E20X
3007W2PAR99E20X
3011W1PAR99E20X
3009W4PAR99E20X
3013W3PAR99E20X
3017W2PAR99E20X
3021W1PAR99E20X
3013W6PAR99E20X
3017W5PAR99E20X
321WA4PAR99E20X
3025W3PAR99E20X
3027W2PAR99E20X
3024W7PAR99E20X
3036W4PAR99E20X
3043W2PAR99E20X
3047W1PAR99E20X
PCB thickness .063" 1.6 mm
10,3 ± 0,25
7,4 ± 0,25
PCB clip .122" 3.1 ± .004" 0.10 mm hole diameter
2| 14
