118SAFT-25.000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 118SAFT-25.000

118SAFT-25.000: DescriptionHCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5; CategoryPassive components oscillator; File Size99KB，4 Pages; ManufacturerCTS; Environmental Compliance; Related ProductsFound7parts with similar functions to 118SAFT-25.000

Download Datasheet Parametric View All

118SAFT-25.000 Overview

HCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5

118SAFT-25.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
Reach Compliance Code	compli
Ageing	1.5 PPM/20 YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.008%
Frequency Stability - Voltage	0.001 ppm
input power	1.5 W
JESD-609 code	e2
Manufacturer's serial number	118
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	10 KOHM, 15 pF
Oven power supply voltage	5V
physical size	26.04mm x 26.04mm x 13.46mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Preheating power	4 W
Maximum warm-up time	15 Minute
Base Number Matches	1

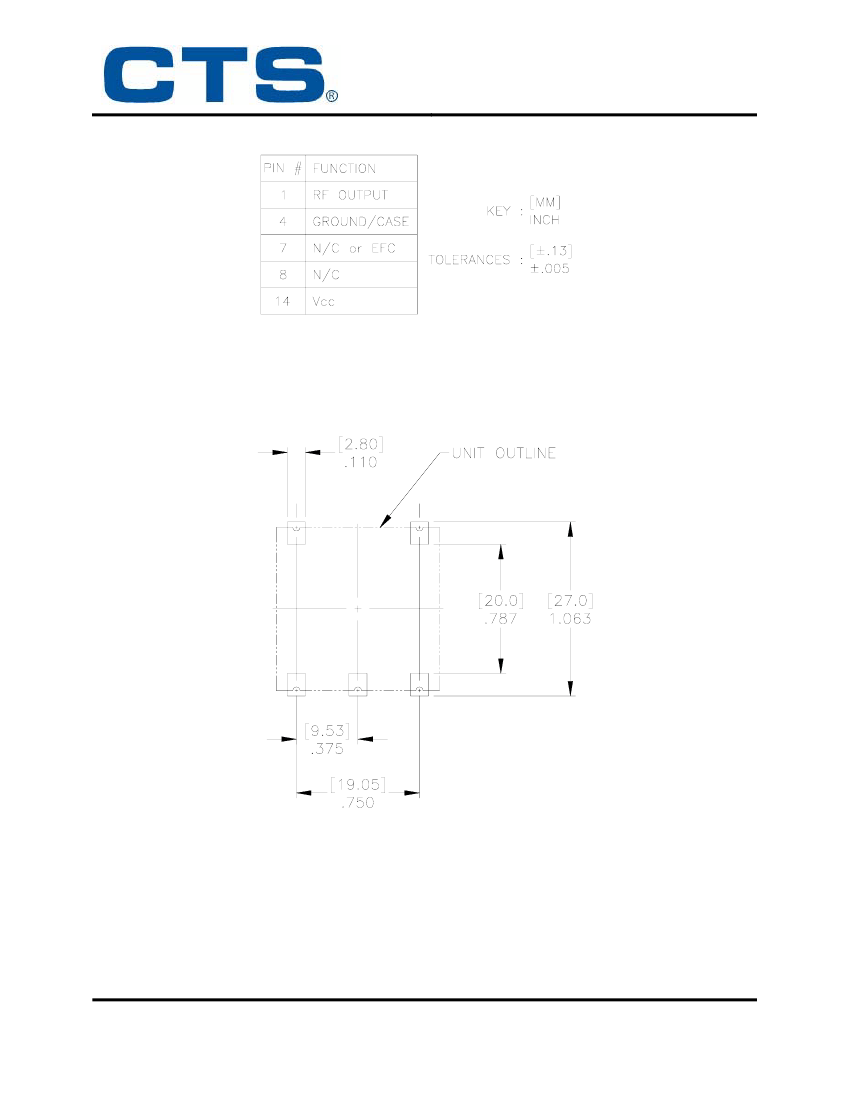

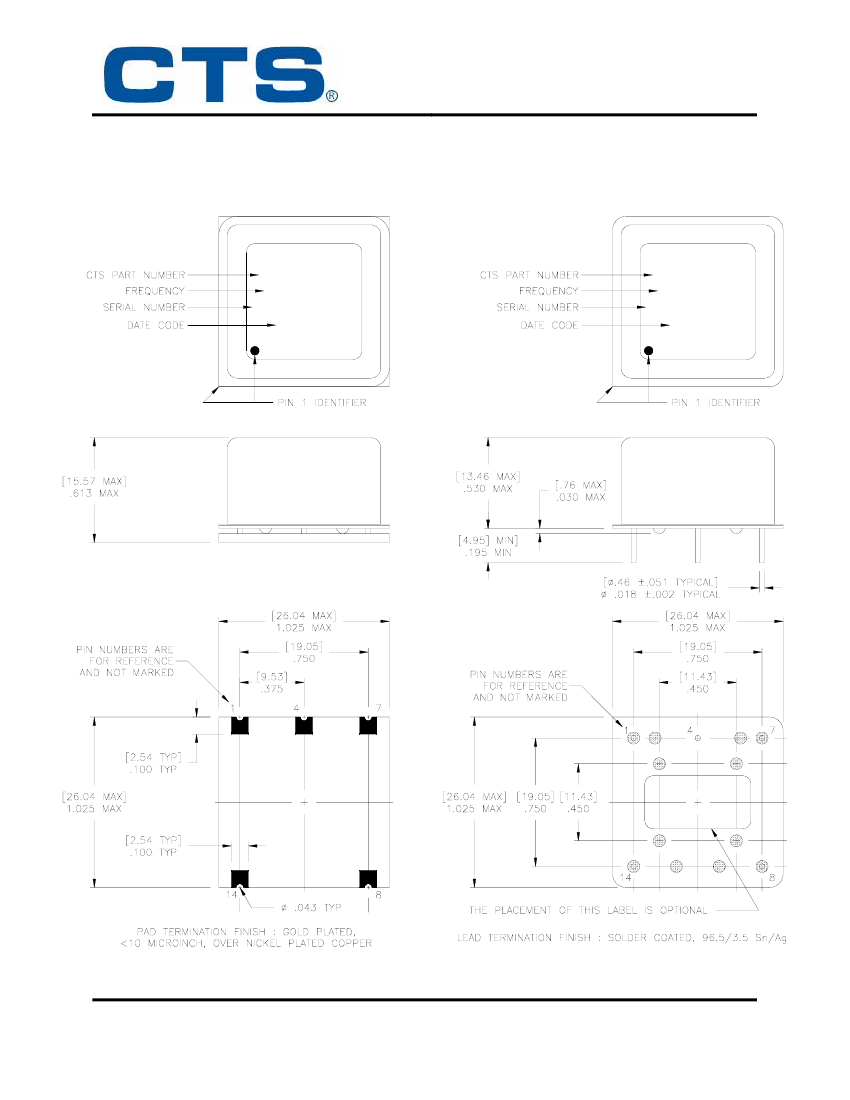

Preview

Download Datasheet

View All

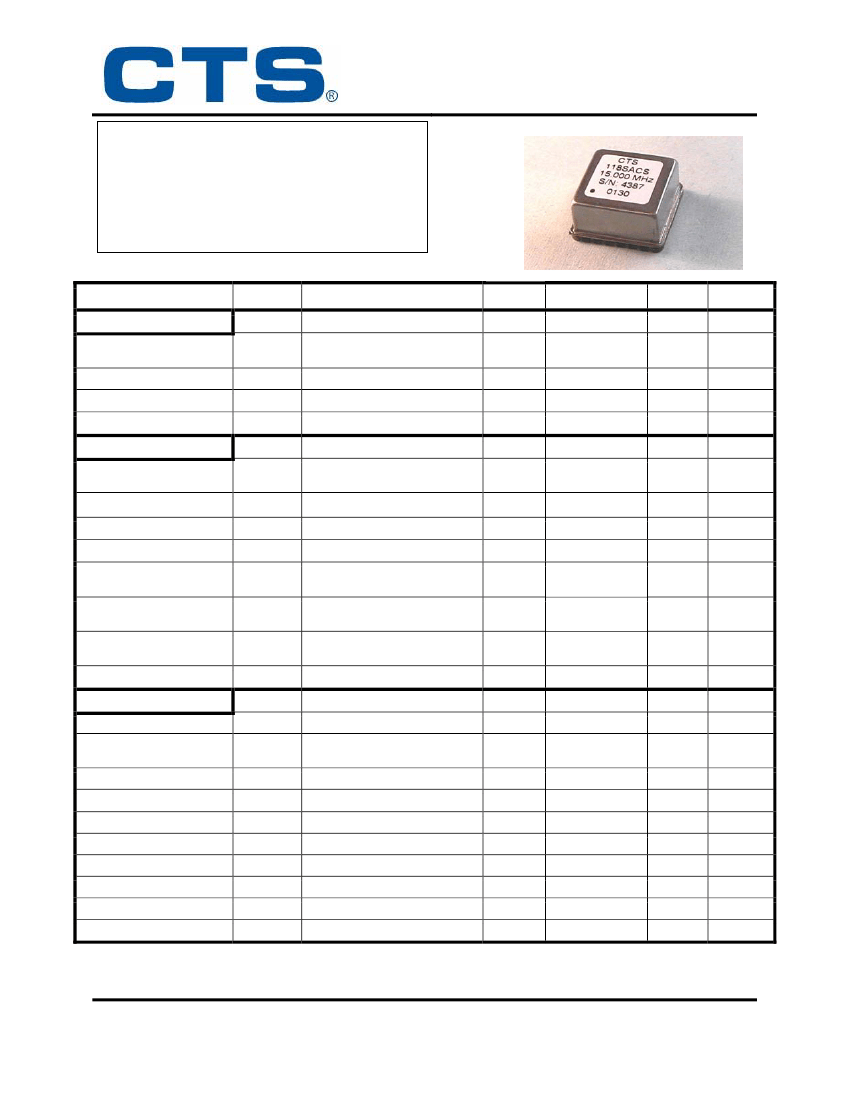

Model 118

1”x1” Stratum 3E OCXO

♦Frequency

Stability to Stratum 3E of GR-1244

♦Low

Phase Jitter: <1pSec

♦+3.3Vdc

or +5.0Vdc Operation

♦Precision

Low Aging “SC” Cut Crystal

♦Through-Hole

or Surface Mount Configuration

♦RoHS

Compliant

Electrical Characteristics

Parameter

Power Requirements

Power Supply

Turn-On Power

Steady State Power

Warm-Up Time

Frequency Stabilities

Center Frequency

Initial Tolerance

Frequency vs. Temperature

Frequency vs. Voltage

Frequency vs Time (Aging)

24 Hour Holdover Stability

Total Free-Running

Accuracy

Electrical Freq Adjust Option

Waveform: HCMOS Output

Symmetry

Amplitude

Rise/Fall Times

Load

Sub-Harmonics

Phase Noise

Offset = 1 Hz

10 Hz

100 Hz

1 KHz

10 KHz

-70

-105

-130

-140

-142

Sym

tr, tf

@ 50% Level

Logic “1”

Logic “0”

20% to 80%

Output to Ground

0.9Vcc

0.1Vcc

10KΩ // 15pF

-25

-60

-95

-125

-130

-135

dBc

dBc/Hz

nSec

Vcc

Pmax

Pss

Twu

Vcc = Max., Std. Load

Vcc = Max, Std. Load @ +25°C

To meet full spec @ +25°C

3.135

4.75

3.30

5.0

3.5

1.5

3.465

5.25

4.0

Vdc

minutes

Sym

Conditions

Min

Typical

Max

Unit

nom

cal

∆f/∆Temp

∆f/∆Vcc

∆f/∆Time

∆f/24Hr

∆f/Life

∆f/Vc

Ta = +25°C (At time of Shipment)

Over Operating Temperature

Vcc

per Day

20 years

Inclusive of Temperature, Supply

Variation and 24 hours Aging

All Conditions for 20 years

(Reference to f

nom

)

Vc = 0 V to Vcc

10.0

10, 12.8, 16.384,

19.44, 20, 25, 26

0.2

38.88

0.5

MHz

ppm

ppb

1.5

2.1

ppb

ppm

ppb

ppm

±0.75

♦♦♦

CTS

♦

171 Covington Dr.

♦

Bloomingdale, IL 60108

♦

800-757-6686

♦

www.ctscorp.com

♦♦♦

REVISION X3

Page 1 of 4

Recommended Resources

Single sideband 27MHz transmitter circuit

Humidity detection box control circuit in greenhouse

STK0030 power amplifier circuit diagram

M58485P (TV and audio equipment) 29-function infrared remote control receiving circuit

GBDC-type dielectric surface electronic processor circuit

New telephone line protector circuit diagram

118SAFT-25.000 Similar Products

Part Number	Manufacturer	Description
118SAFS-25.000	CTS	HCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SAFS-26.000	CTS	HCMOS Output Clock Oscillator, 26MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SAFT-26.000	CTS	HCMOS Output Clock Oscillator, 26MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SBFS-26.000	CTS	HCMOS Output Clock Oscillator, 26MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SBFT-26.000	CTS	HCMOS Output Clock Oscillator, 26MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SBFT-25.000	CTS	HCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
118SBFS-25.000	CTS	HCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, RESISTANCE WELD PACKAGE-14/5
