DS54-0002-RTR: Description1700MHz - 2000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.2dB INSERTION LOSS, PLASTIC, SOW-16; CategoryWireless rf/communication Radio frequency and microwave; File Size57KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

DS54-0002-RTR Overview

1700MHz - 2000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.2dB INSERTION LOSS, PLASTIC, SOW-16

DS54-0002-RTR Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

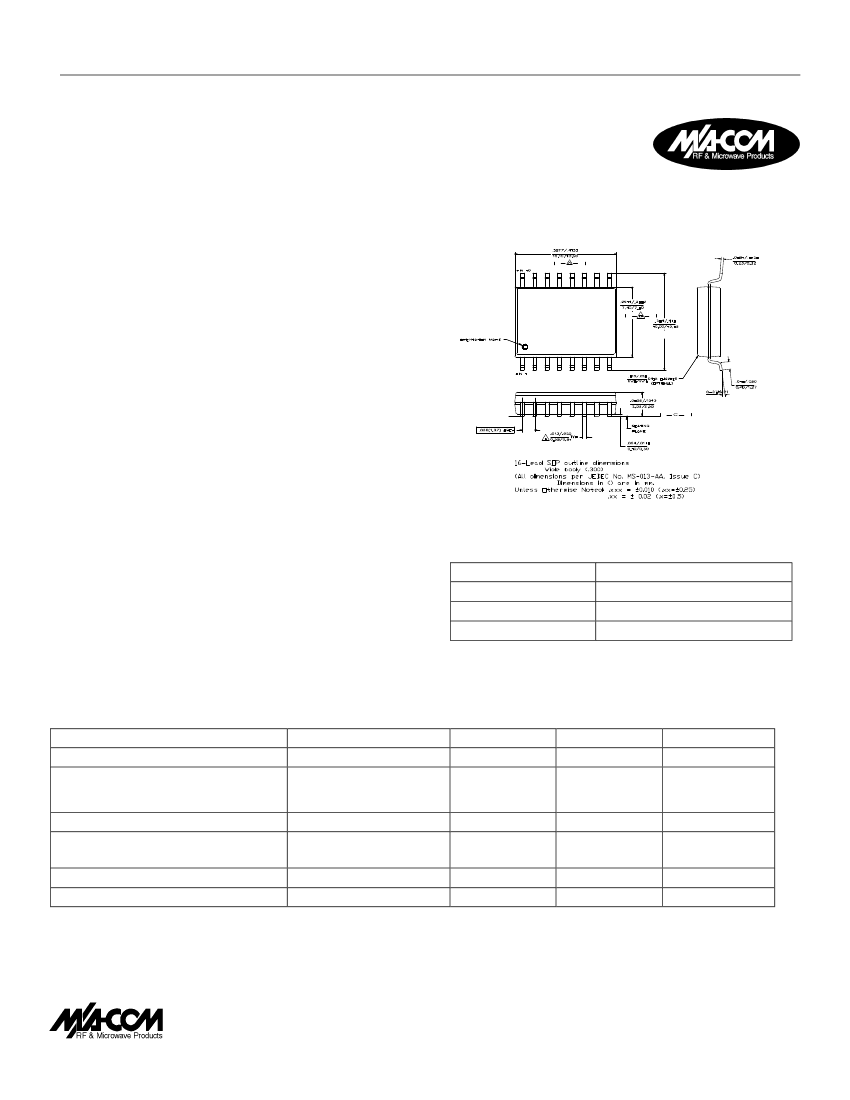

Low Cost Four-Way SMT Power Split-

ter/Combiner 1700-2000 MHz

SOW16

Features

•

Small Size and Low Profile

Industry Standard SOW-16 SMT Plastic Package

Excellent Repeatability (Lot-to-Lot Variation)

Typical Isolation: 17 dB

Typical Amplitude Balance: 0.7dB

Low Cost

Typical Insertion Loss: 1.5dB

DS54-0002

Description

M/A-COM’s DS54-0002 is an IC-based monolithic power splitter/

combiner in a low cost SOW-16 plastic package. This device is

ideally suited for applications where PCB real estate is at a premium

and standard packaging for automated assembly and low cost are

critical. Typical applications include infrastructure, portables and

peripheral devices (PCMCIA cards) for wireless standards such as

GSM, AMPS, CDPD, RAM and ARDIS.

Available in tape and

reel.

The DS54-0002 is fabricated using a passive-integrated circuit

process. The process features full-chip passivation for increased

performance and reliability.

Ordering Information

Part Number

DS54-0002

DS54-0002-TR

DS54-0002-RTR

Package

SOW-16 Lead Plastic Package

Forward Tape and Reel

1

Reverse Tape and Reel

1

1. If specific reel size is required, consult factory for part number

assignment.

Typical Electrical Specifications

1

, T

A

= +25°C

Parameter

Insertion Loss

Above 6.0dB

Isolation 1700-1800MHz

1801-2000MHz

VSWR

VSWR Output

Amplitude Balance

Phase Balance

Input

1700-2000MHz

Units

dB

—

dB

°

Typ

1.2

—

Min

—

18

17

—

Max

1.5

—

1.7:1

1.5:1

0.7

7

1. All specifications apply with a 50-Ohm source and load impedance.

S 1563C VER 3

M/A-COM

n

North America: Tel. (800) 366-2266, Fax (800) 618-8883

n

Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087

n

Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

www.macom.com

Specifications subject to change without notice.

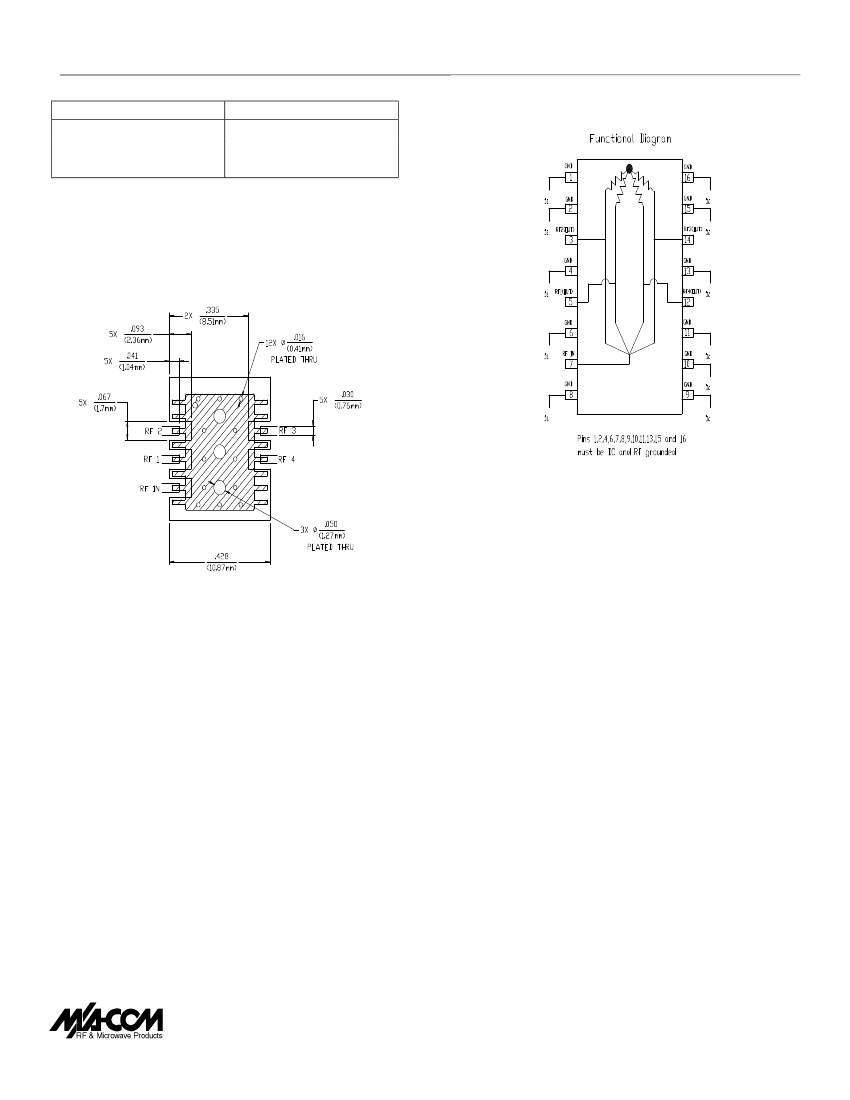

DS54-0002-RTR Related Products

	DS54-0002-RTR	DS54-0002-TR	DS54-0002
Description	1700MHz - 2000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.2dB INSERTION LOSS, PLASTIC, SOW-16	1700MHz - 2000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.5dB INSERTION LOSS, PLASTIC, SMT, MS-013-AA, SOW-16	1700MHz - 2000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.5dB INSERTION LOSS, PLASTIC, SMT, MS-013-AA, SOW-16
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1.2 dB	1.5 dB	1.5 dB
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	1700 MHz	1700 MHz	1700 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5	1.5	1.5
Base Number Matches	1	1	-
Other features	-	HIGH RELIABILITY, ISOLATION-MIN (DB):17	HIGH RELIABILITY, ISOLATION-MIN (DB):17
