26-60-1050: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

26-60-1050 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-60-1050	-	-	View	Buy Now

26-60-1050 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle

26-60-1050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	KK
body width	0.394 inch
subject depth	0.446 inch
body length	0.774 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	PLASTIC
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	200u inch
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	.834 N
Base Number Matches	1

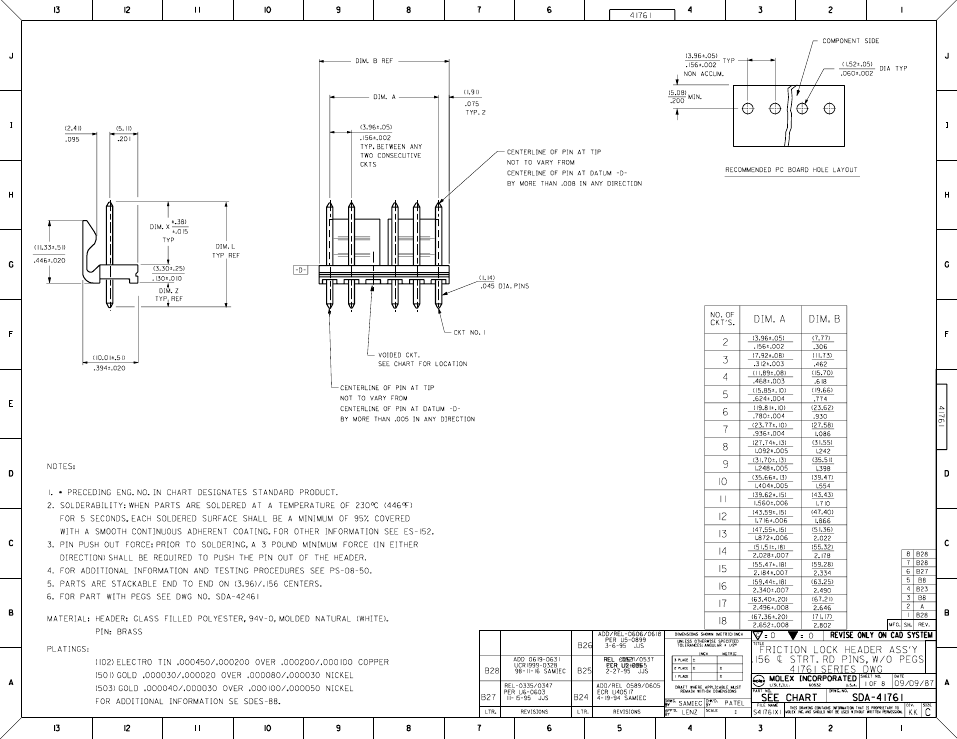

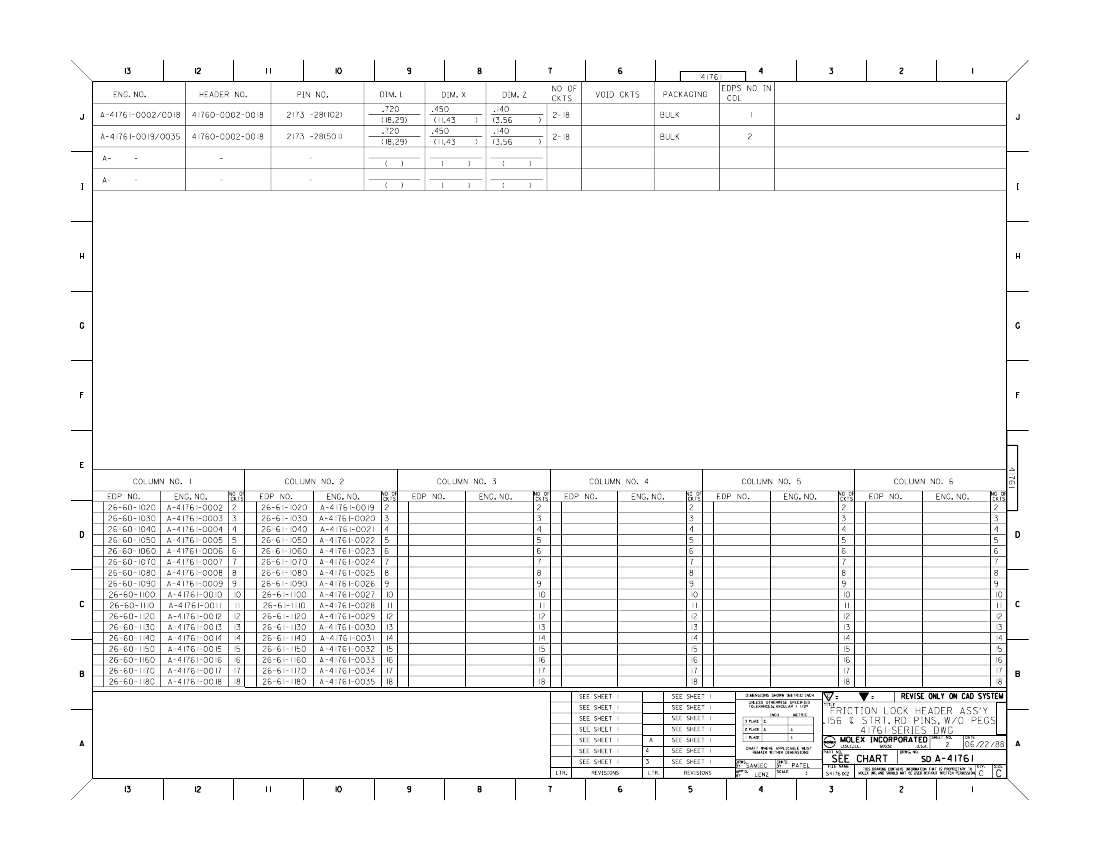

Preview

Download Datasheet

View All

26-60-1050 Related Products

	26-60-1050	26-60-1060	26-60-1070	26-60-1020	26-60-1030
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	KK	KK	KK	KK	KK
body width	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch
subject depth	0.446 inch	0.446 inch	0.446 inch	0.446 inch	0.446 inch
body length	0.774 inch	0.93 inch	1.086 inch	0.306 inch	0.462 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	200u inch	200u inch	200u inch	200u inch	200u inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	7 A	7 A	7 A	7 A	7 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	6	7	2	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.834 N	.834 N	.834 N	.834 N	.834 N
Base Number Matches	1	1	1	1	1
Manufacturer's serial number	-	41761	41761	-	41761
