284496: DescriptionD Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284496 Overview

D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal, #4-40, Receptacle,

284496 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.543 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.2804 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	YES
Manufacturer's serial number	28449
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	4.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.118 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

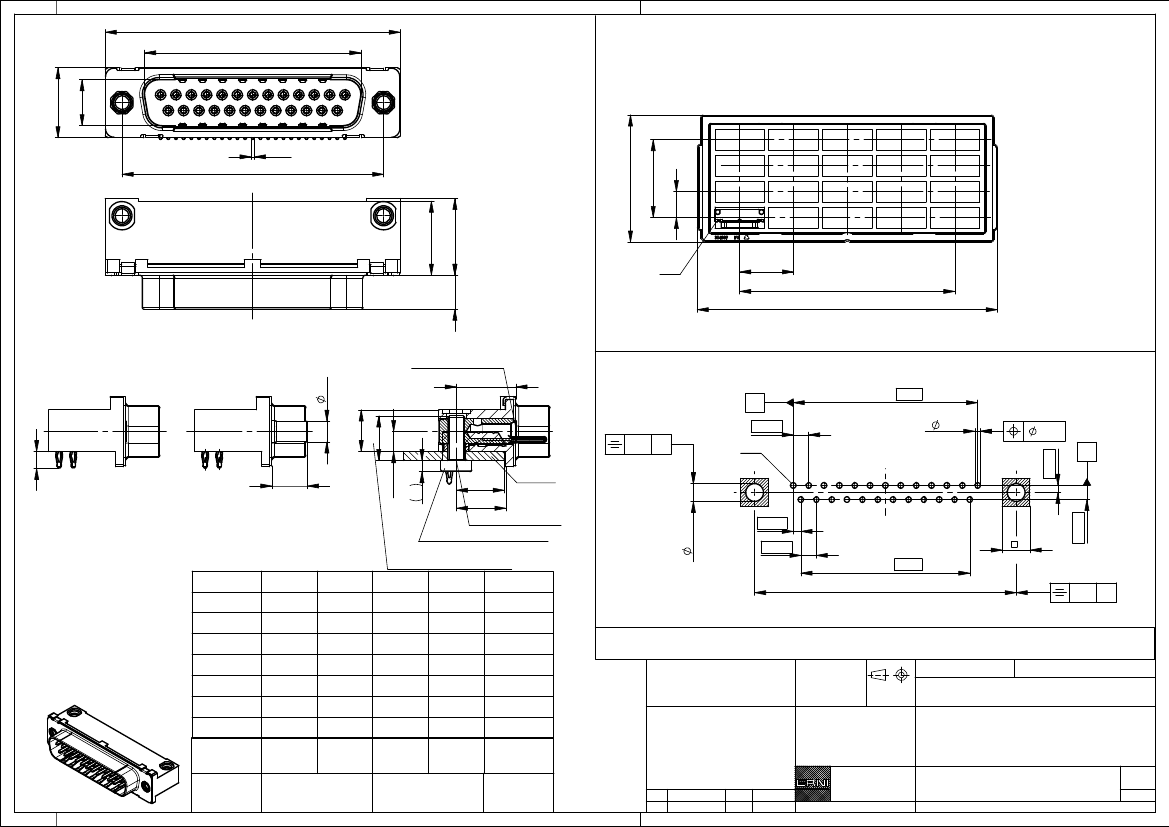

±0,3

38,9

+0,2

Verpackt in Tray

Verpackungseinheit 20 Stck

12,6

±0,3

8,25

+0,2

tray packaging

packaging unit 20 pcs

138

max.

±0,1

3 x 28 = 84

0,6

13,3

13,8

Pin 1

+0,3

4 x 58 = 232

325

max.

5,8

Mutter /

nut

Gewindetiefe 5,9 mm

Bolzen /

bolt

Gewindetiefe 6 mm

Anwendungsbeispiel /

example of use

Gewinde A /

thread A

3,7

10,7

Sonstige Angaben siehe Zeichnung 204630 /

Additional inications according to drawing 204630

depth of thread 5,9 mm

depth of thread 6 mm

Layoutvorschlag

recommended layout

12 x 2,76 = 33,12

2,76

-0,06

+0,09

7,5

±0,1

0,05

1,27

0,05

3,6

±0,1

LP /

PCB

Pin 1

6,4

8,6

8,9

( Schraube /

Screw

DIN 7984 )

empfohlene Gewindelänge /

3,2

±0,1

2,76

11 x 2,76 = 30,36

±0,05

recommended thread length

#4-40

2,54

0,05

Tolerances

All Dimensions

in mm

Gewinde B /

thread B

1,38

Anschlussbereich verzinnt

284496

#4-40

sonstige Angaben siehe 164062 /

additional indications according to 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

terminal area tin plating

Anforderungsstufe: 2

Information:

Scale

2:1

class: 2

284495

284494

#4-40

Gewinde A Gewinde B Gewinde A Gewinde B

thread A

thread B

thread A

thread B

Ident-Nr.

Tray /

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

07.12.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P-25-EE-SV-Euro-BA8-ZV

part-no.

Quermutter

nut

Querbolzen

bolt

Bemerkung

www.ERNI.com

Class

remark

224951

TMCP
