ABL-15.9990MHZ-C-H5-Q-L2-P datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABL-15.9990MHZ-C-H5-Q-L2-P

ABL-15.9990MHZ-C-H5-Q-L2-P: DescriptionParallel - Fundamental Quartz Crystal, 15.999MHz Nom, HC/49US, 3 PIN; CategoryPassive components Crystal/resonator; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABL-15.9990MHZ-C-H5-Q-L2-P Overview

Parallel - Fundamental Quartz Crystal, 15.999MHz Nom, HC/49US, 3 PIN

ABL-15.9990MHZ-C-H5-Q-L2-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1545713964
package instruction	HC/49US, 3 PIN
Reach Compliance Code	compliant
Country Of Origin	Mainland China
YTEOL	6.22
Other features	AT CUT; FOAM
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	5 ppm
JESD-609 code	e3
load capacitance	18 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	15.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
physical size	L11.5XB5.0XH3.5 (mm)/L0.453XB0.197XH0.138 (inch)
Series resistance	50 Ω
surface mount	NO
Terminal surface	Bright Tin (Sn) - annealed

Preview

Download Datasheet

View All

HC/49US (AT49) MICROPROCESSOR CRYSTAL

ABL Series

FEATURES:

• High reliability & Low Cost

• Tight stability & extended temperature

• Proven resistance welded metal package

RoHS

Compliant

APPLICATIONS:

• Home electronics

• Computers, modems, and communications

• Automotive and industrial

• High-precision TCXO and clock applications

• Microprocessors

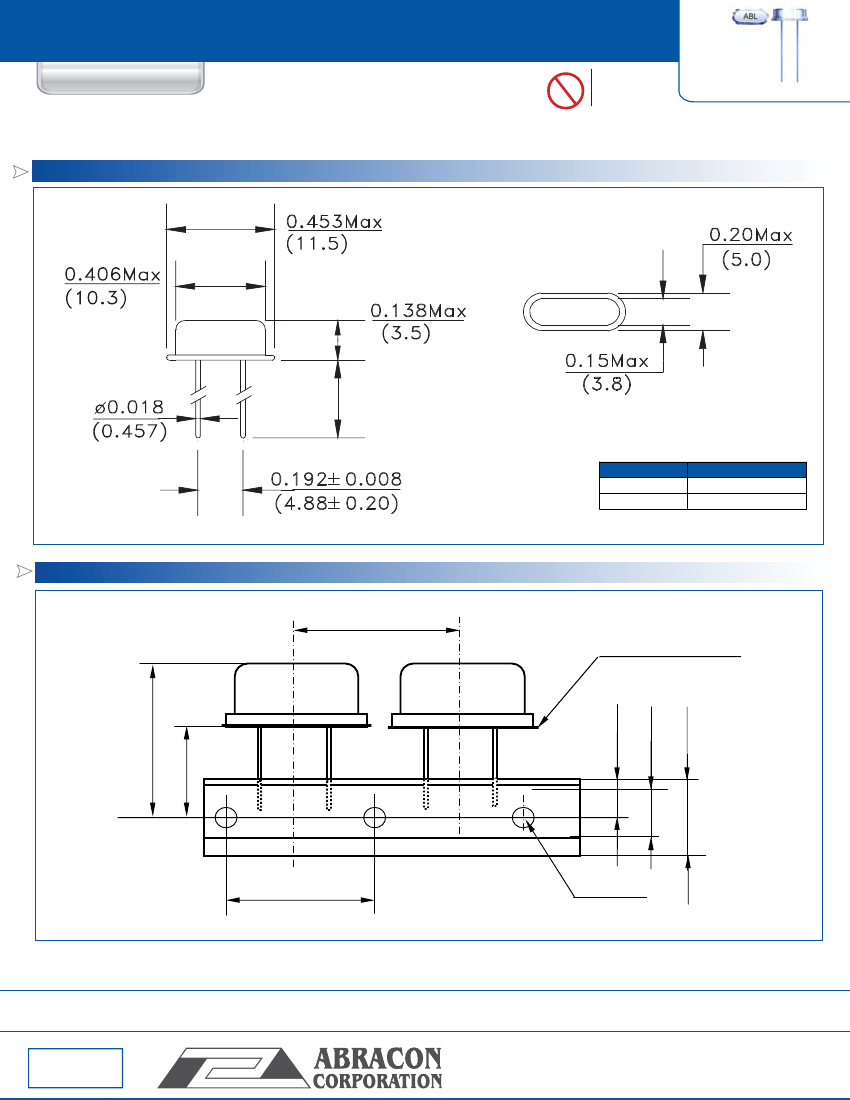

11.5 x 5.0 x 3.5 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency

Operation Mode

ABL Series

3.579545 MHz to 70 MHz

AT cut (Fundamental or 3rd OT) or BT cut (See options)

3.579545MHz - 24.0MHz (Fundamental) (Standard)

24.01 - 70.00MHz (3rd- Overtone) (Standard)

24.01MHz - 50.00MHz (Fund. AT or BT) (See options)

0°C to + 70°C (see options)

- 55°C to + 125°C

± 50 ppm max. (see options)

See Table 1

7pF max.

18pF (see options)

1 mW max., 100μW typical

± 5ppm max.

500 M min at 100Vdc ± 15V

1μW to 500μW

Change in frequency (Maximum - Minimum) over DLD range < ±10ppm

Change in ESR (Maximum - Minimum) over DLD range < 25% of Max ESR value

Maximum ESR over DLD range < Max ESR value

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C ± 3°C Per Year

Insulation Resistance

Drive level dependency (DLD),

minimum 7 points tested

TABLE 1: ESR

FREQUENCY (MHz)

3.579 - 4.999 (Fund.)

5.000 - 5.999 (Fund.)

6.000 - 7.999 (Fund.)

8.000 - 8.999 (Fund.)

9.000 - 9.999 (Fund.)

10.000 - 15.999 (Fund.)

16.000 - 50.000 (Fund.)

24.01 - 31.999 (3rd O/T)

32.000 - 70.00 (3rd O/T)

ESR ( )

180

120

100

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 12.04.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
