5962-8687701PA

Description

5962-8687701PA amplifier basic information:

5962-8687701PA is a COMPARATOR. Commonly used packaging methods are DIP, DIP8,.3

5962-8687701PA amplifier core information:

The minimum operating temperature of 5962-8687701PA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is 225. Its maximum bias current at 25°C is: 0.15 µA. Its maximum average bias current is 0.15 µA.

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962-8687701PA takes only 200 ns to respond. The maximum slew rate of the 5962-8687701PA given by the manufacturer is 7 mA.

The nominal supply voltage of 5962-8687701PA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8687701PA is 4000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8687701PA is: 7.62 mm .

Related dimensions of 5962-8687701PA:

5962-8687701PA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8

5962-8687701PA amplifier additional information:

Its temperature grade is: MILITARY. And its humidity sensitivity level is: 1. 5962-8687701PA does not comply with Rohs certification. It contains lead. The corresponding JESD-30 code is: R-CDIP-T8.

The packaging code of 5962-8687701PA is: DIP. 5962-8687701PA packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962-8687701PA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

The maximum seat height is 5.08 mm.

CategoryAnalog mixed-signal IC    Amplifier circuit
File Size2MB,21 Pages
ManufacturerMinco Technology Labs LLC
Alternative parts:5962-8687701PA
Download Datasheet Parametric Compare View All

5962-8687701PA Overview

5962-8687701PA amplifier basic information:

5962-8687701PA is a COMPARATOR. Commonly used packaging methods are DIP, DIP8,.3

5962-8687701PA amplifier core information:

The minimum operating temperature of 5962-8687701PA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is 225. Its maximum bias current at 25°C is: 0.15 µA. Its maximum average bias current is 0.15 µA.

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962-8687701PA takes only 200 ns to respond. The maximum slew rate of the 5962-8687701PA given by the manufacturer is 7 mA.

The nominal supply voltage of 5962-8687701PA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8687701PA is 4000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8687701PA is: 7.62 mm .

Related dimensions of 5962-8687701PA:

5962-8687701PA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8

5962-8687701PA amplifier additional information:

Its temperature grade is: MILITARY. And its humidity sensitivity level is: 1. 5962-8687701PA does not comply with Rohs certification. It contains lead. The corresponding JESD-30 code is: R-CDIP-T8.

The packaging code of 5962-8687701PA is: DIP. 5962-8687701PA packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962-8687701PA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

The maximum seat height is 5.08 mm.

5962-8687701PA Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Reach Compliance Codecompli
ECCN codeEAR99
Amplifier typeCOMPARATOR
Maximum average bias current (IIB)0.15 µA
Maximum bias current (IIB) at 25C0.15 µA
Maximum input offset voltage4000 µV
JESD-30 codeR-CDIP-T8
Humidity sensitivity level1
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output typeOPEN-COLLECTOR
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)225
power supply+-15 V
Certification statusNot Qualified
Nominal response time200 ns
Filter levelMIL-STD-883
Maximum seat height5.08 mm
Maximum slew rate7 mA
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
Austin Semiconductor, Inc.
Voltage Comparator
AVAILABLE AS MILITARY
SPECIFICATIONS
• SMD 5962-86877
• M38510/10304B
• MIL-STD-883, 1.2.1
GND
INPUT+
INPUT-
V
-
oltag
Volta g e
Comparator
AS111

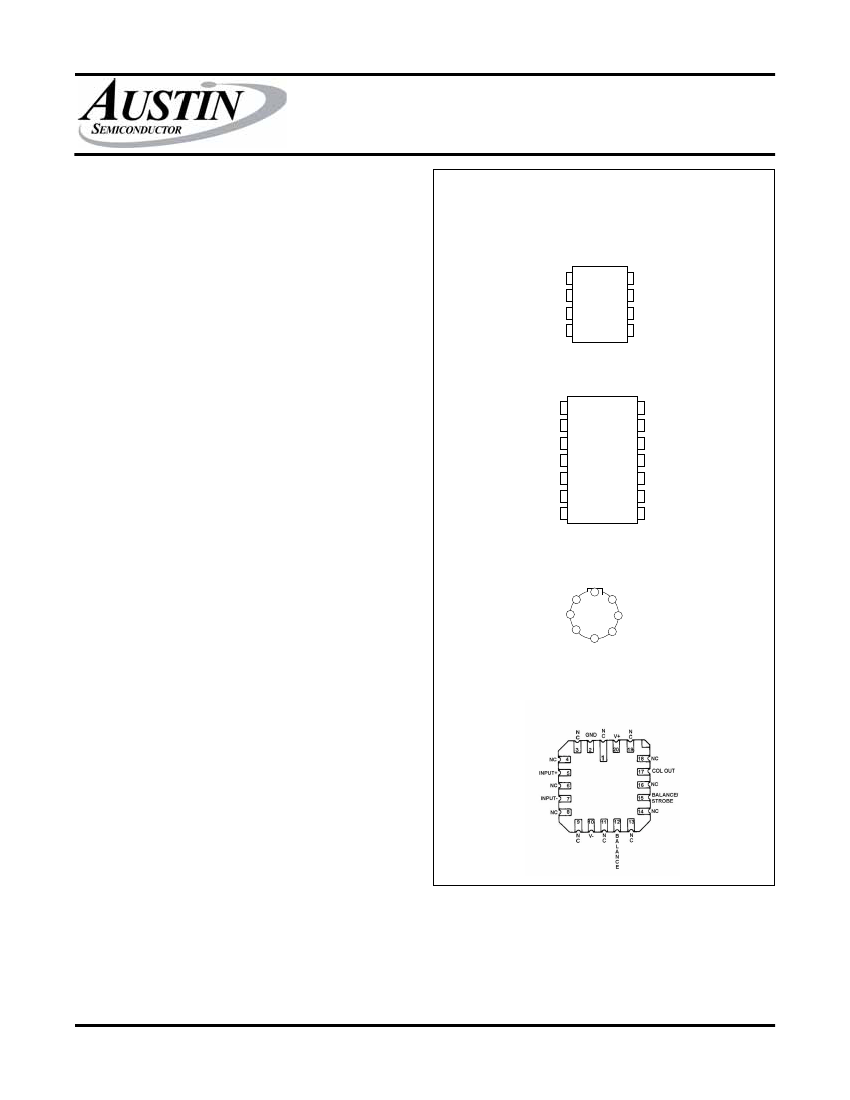

PIN ASSIGNMENT
(Top View)
8 Pin Ceramic DIP (C008)
1
2
3
4
8
7
6
5
V
+
OUTPUT
BALANCE/
STROBE
BALANCE
FEATURES
• Operates from single 5V supply
• Input current: 150 nA max. over temperature
• Offset current: 20 nA max. over temperature
• Differential input voltage range: ±30V
• Power consumption: 135 mW at ±15V
14 Pin Ceramic DIP (C014)
NC
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
NC
NC
NC
V
+
NC
OUTPUT
BALANCE/
STROBE
OPTIONS
• Packages
8 pin Ceramic DIP
14 pin Ceramic DIP
20 pin Ceramic LCC
8 Lead Metal Can
• Temperature Ranges
Extended (-55
o
C to +125
o
C)
MIL-STD-883 paragraph 1.2.1
(-55
o
C to +125
o
C)
MARKINGS
C008
C014
E020
TO08
XT
/883
INPUT+
INPUT-
NC
V
-
BALANCE
8 Lead Metal Can (TO08)
V
+
8
GND
1
INPUT+
2
3
4
7
OUTPUT
6
BALANCE/STROBE
GENERAL DESCRIPTION
The AS111 is a voltage comparator that has input currents
nearly a thousand times lower than other similar devices like. It
is also designed to operate over a wider range of supply
voltages: from standard ±15V op amp supplies down to the
single 5V supply used for IC logic. Their output is compatible
with RTL, DTL and TTL as well as MOS circuits. Further, they
can drive lamps or relays, switching voltages up to 50V at
currents as high as 50 mA.
Both the inputs and the outputs of the AS111 can be
isolated from system ground, and the output can drive loads
referred to ground, the positive supply or the negative supply.
Offset balancing and strobe capability are provided and
outputs can be wire OR’ed. Although slower than some
devices (200 ns response time vs 40 ns), this device is also
much less prone to spurious oscillations.
INPUT-
5
BALANCE
V
-
20 Pin Ceramic LCC (E020)
For more products and information
please visit our web site at
www.austinsemiconductor.com
AS111
Rev. 1.6 6/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
1

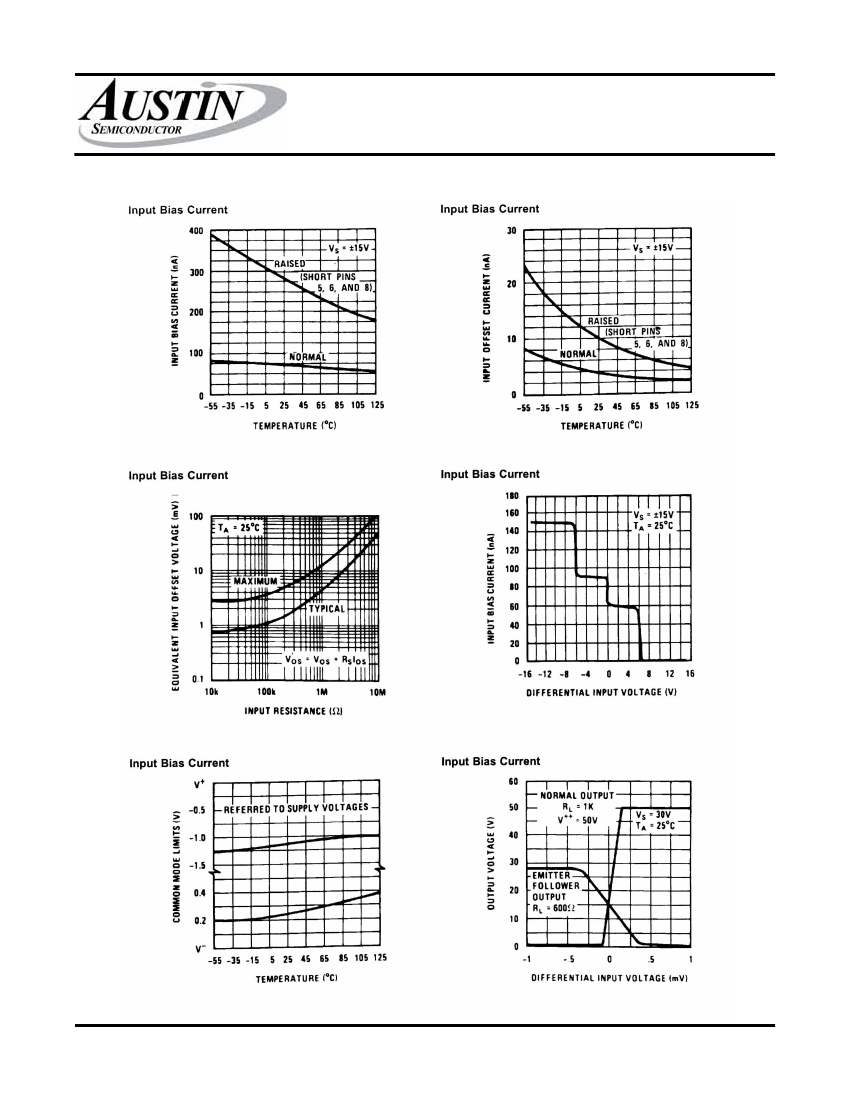

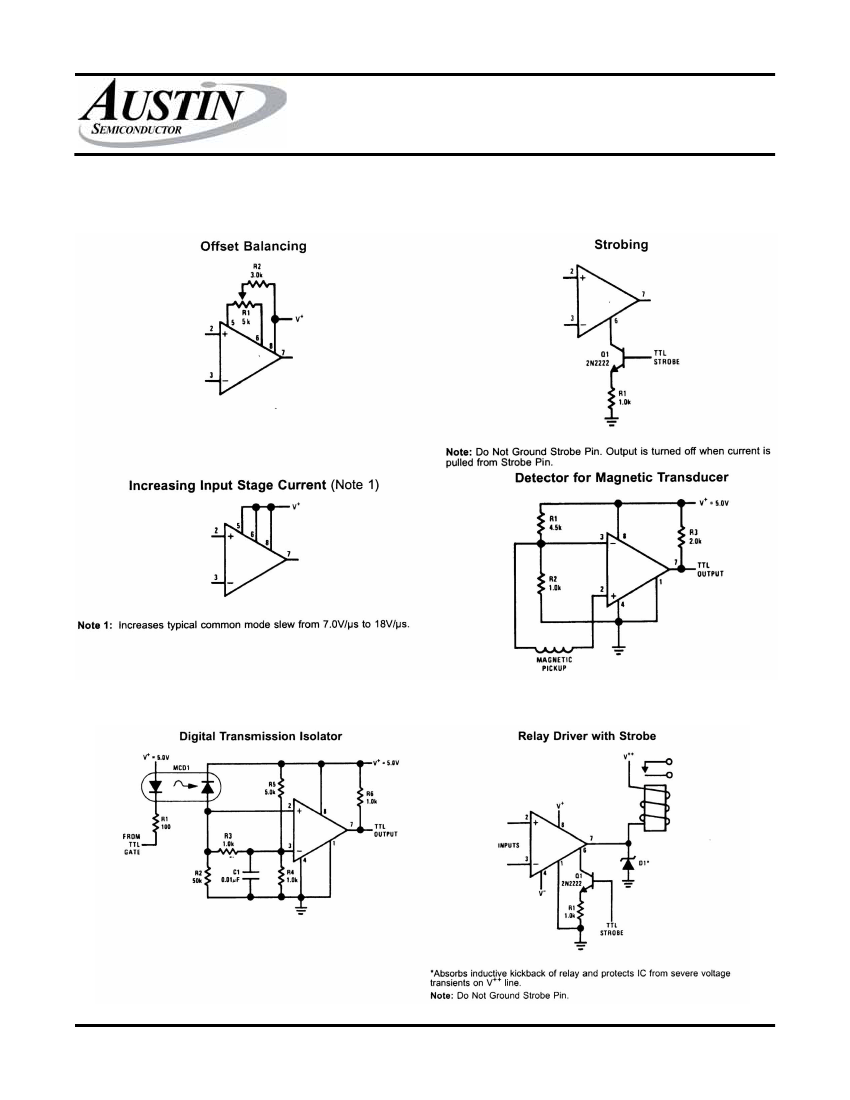

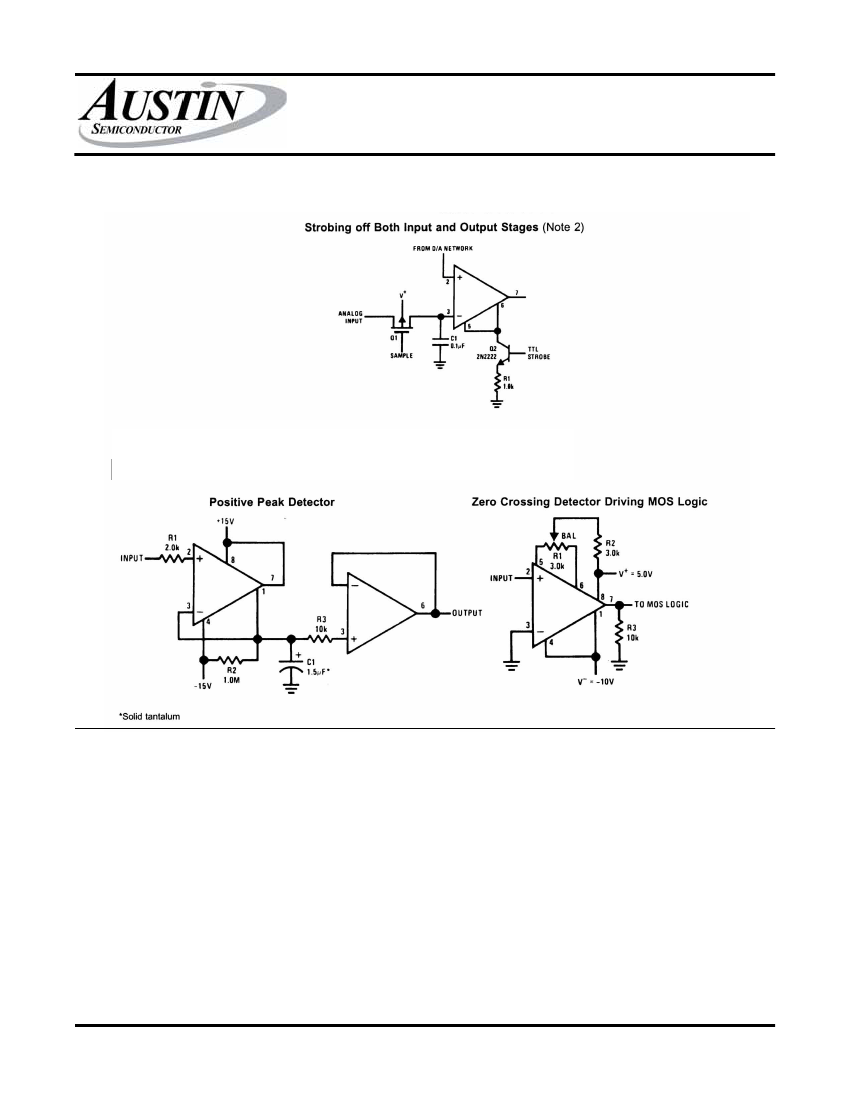

5962-8687701PA Related Products

5962-8687701PA 5962-8687701GA
Description Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDIP8, CERAMIC, DIP-8 Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, MBCY8, METAL CAN, 8 PIN
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Parts packaging code DIP BCY
package instruction DIP, DIP8,.3 , CAN8,.2
Contacts 8 8
Reach Compliance Code compli compliant
ECCN code EAR99 EAR99
Amplifier type COMPARATOR COMPARATOR
Maximum average bias current (IIB) 0.15 µA 0.15 µA
Maximum bias current (IIB) at 25C 0.15 µA 0.15 µA
Maximum input offset voltage 4000 µV 4000 µV
JESD-30 code R-CDIP-T8 O-MBCY-W8
Humidity sensitivity level 1 1
Negative supply voltage upper limit -18 V -18 V
Nominal Negative Supply Voltage (Vsup) -15 V -15 V
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output type OPEN-COLLECTOR OPEN-COLLECTOR
Package body material CERAMIC, METAL-SEALED COFIRED METAL
Encapsulate equivalent code DIP8,.3 CAN8,.2
Package shape RECTANGULAR ROUND
Package form IN-LINE CYLINDRICAL
Peak Reflow Temperature (Celsius) 225 225
power supply +-15 V +-15 V
Certification status Not Qualified Not Qualified
Nominal response time 200 ns 200 ns
Filter level MIL-STD-883 MIL-STD-883
Maximum slew rate 7 mA 7 mA
Supply voltage upper limit 18 V 18 V
Nominal supply voltage (Vsup) 15 V 15 V
surface mount NO NO
technology BIPOLAR BIPOLAR
Temperature level MILITARY MILITARY
Terminal form THROUGH-HOLE WIRE
Terminal location DUAL BOTTOM
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
