54FCT241CTLB

Description
Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20
Categorylogic    logic
File Size457KB,9 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric Compare View All

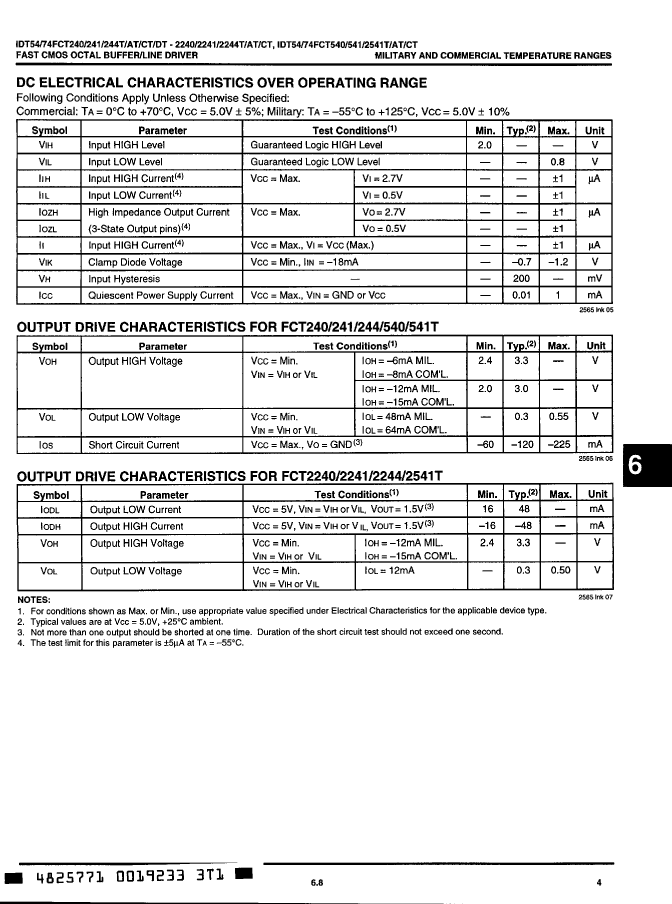

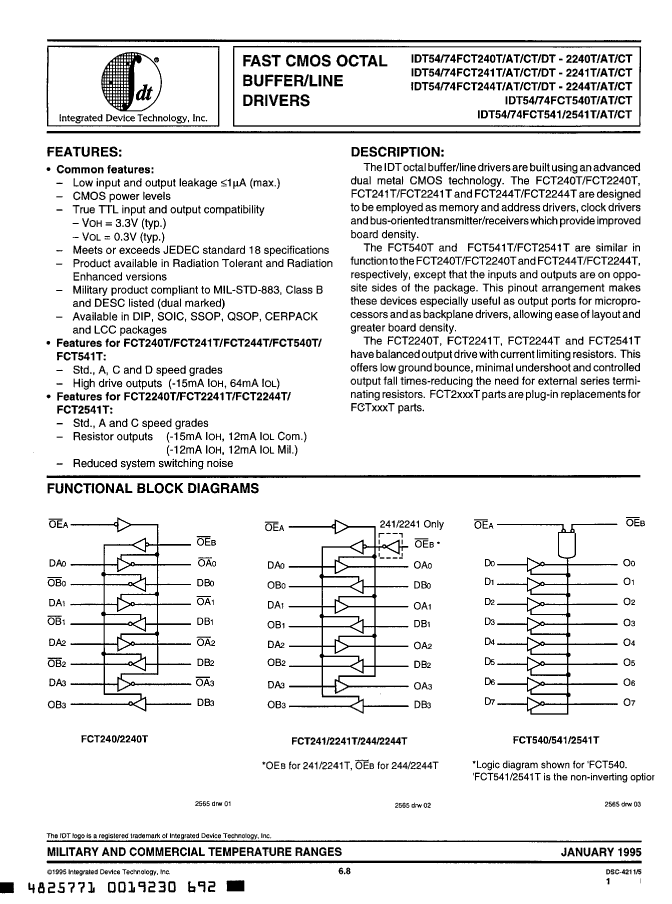

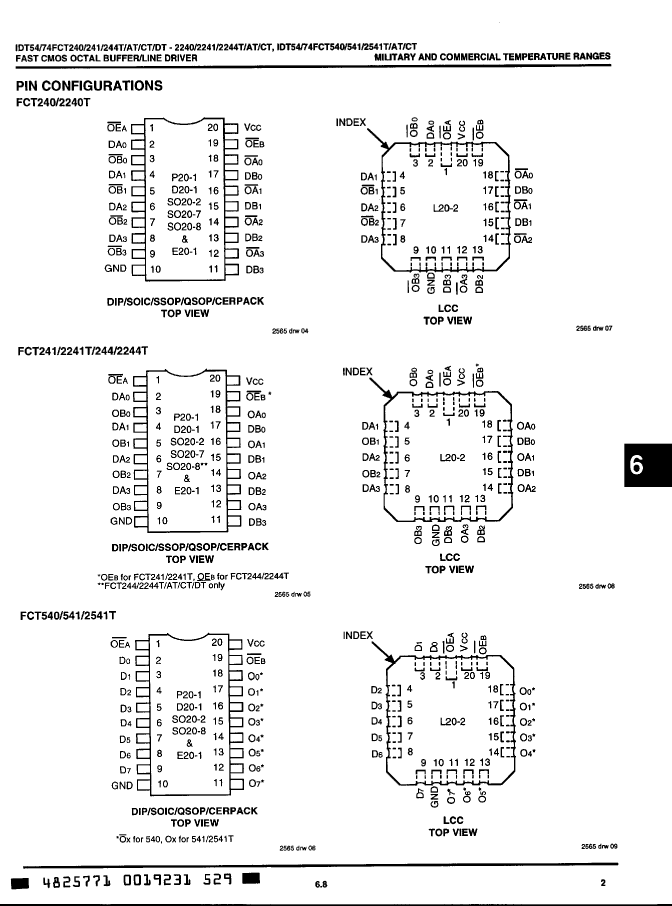

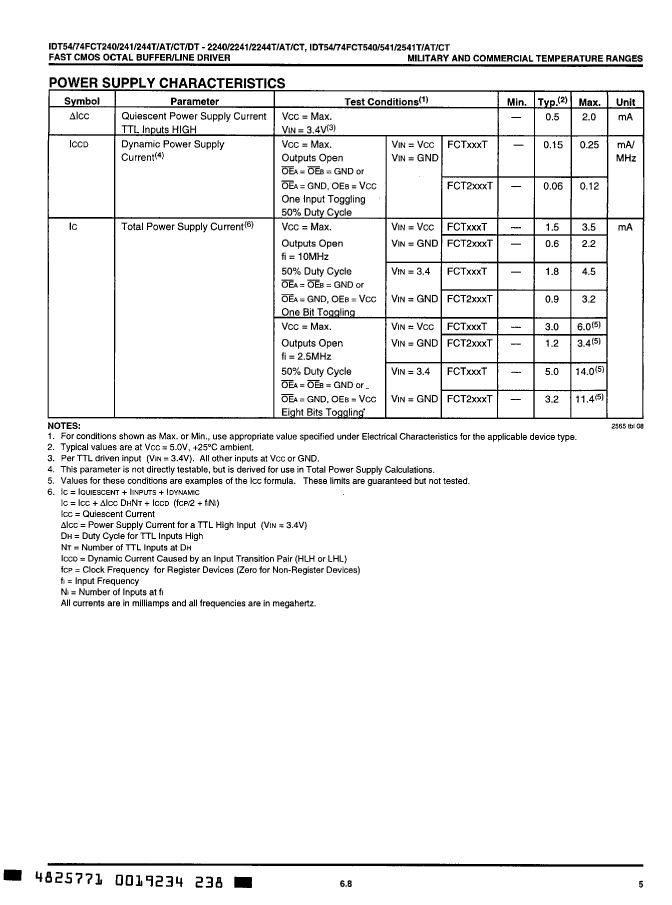

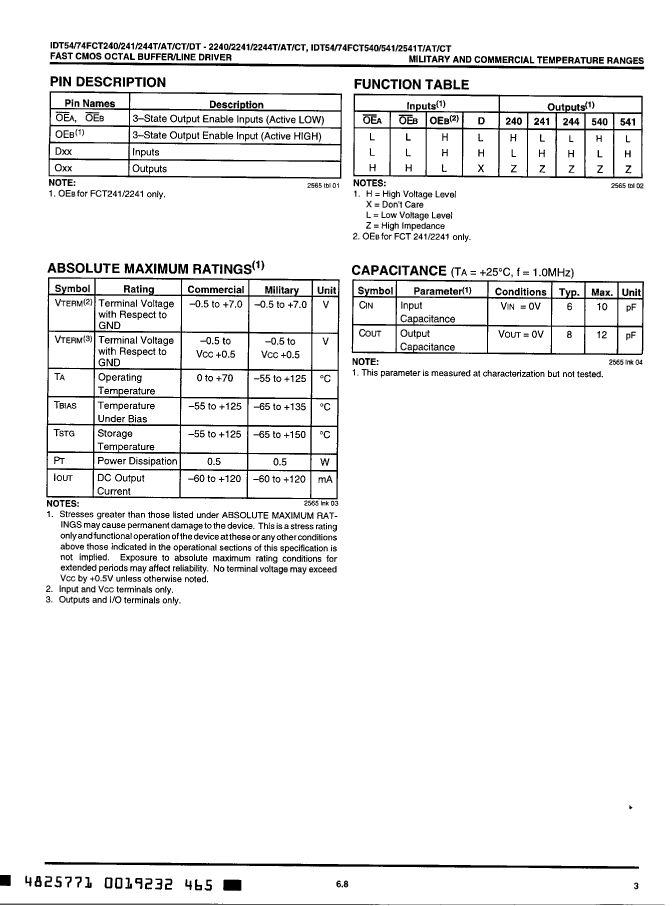

54FCT241CTLB Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20

54FCT241CTLB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerIDT (Integrated Device Technology)
package instructionQCCN, LCC20,.35SQ
Reach Compliance Codenot_compliant
Control typeENABLE LOW/HIGH
JESD-30 codeS-XQCC-N20
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.048 A
Number of digits4
Number of functions2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)225
power supply5 V
Prop。Delay @ Nom-Sup4.6 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperature30
Base Number Matches1

54FCT241CTLB Related Products

54FCT241CTLB MFP-12PRA26-407R 54FCT241TDB 74FCT241CTP 74FCT241CTSO 74FCT241DTP
Description Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20 Fixed Resistor, Metal Film, 0.1666W, 407ohm, 150V, 0.02% +/-Tol, -5,5ppm/Cel, CDIP-20, Tube PDIP-20, Tube SOIC-20, Tube Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDIP20
Is it Rohs certified? incompatible conform to incompatible incompatible incompatible incompatible
Reach Compliance Code not_compliant compliant not_compliant _compli _compli _compli
JESD-609 code e0 e3 e0 e0 e0 e0
Number of terminals 20 2 20 20 20 20
Maximum operating temperature 125 °C 155 °C 125 °C 70 °C 70 °C 70 °C
Package shape SQUARE CYLINDRICAL PACKAGE RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form CHIP CARRIER Axial IN-LINE IN-LINE SMALL OUTLINE IN-LINE
surface mount YES NO NO NO YES NO
technology CMOS METAL FILM CMOS CMOS CMOS CMOS
Terminal surface Tin/Lead (Sn/Pb) Matte Tin (Sn) Tin/Lead (Sn/Pb) Tin/Lead (Sn85Pb15) Tin/Lead (Sn85Pb15) Tin/Lead (Sn85Pb15)
Is it lead-free? Contains lead - Contains lead Contains lead Contains lead Contains lead
Maker IDT (Integrated Device Technology) - IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology)
package instruction QCCN, LCC20,.35SQ - CERDIP-20 DIP, DIP20,.3 SOP, SOP20,.4 DIP, DIP20,.3
Control type ENABLE LOW/HIGH - ENABLE LOW/HIGH ENABLE LOW/HIGH ENABLE LOW/HIGH ENABLE LOW/HIGH
JESD-30 code S-XQCC-N20 - R-GDIP-T20 R-PDIP-T20 R-PDSO-G20 R-PDIP-T20
Load capacitance (CL) 50 pF - 50 pF 50 pF 50 pF 50 pF
Logic integrated circuit type BUS DRIVER - BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER
MaximumI(ol) 0.048 A - 0.048 A 0.064 A 0.064 A 0.064 A
Number of digits 4 - 4 4 4 4
Number of functions 2 - 2 2 2 2
Output characteristics 3-STATE - 3-STATE 3-STATE 3-STATE 3-STATE
Output polarity TRUE - TRUE TRUE TRUE TRUE
Package body material CERAMIC - CERAMIC, GLASS-SEALED PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code QCCN - DIP DIP SOP DIP
Encapsulate equivalent code LCC20,.35SQ - DIP20,.3 DIP20,.3 SOP20,.4 DIP20,.3
Peak Reflow Temperature (Celsius) 225 - 240 245 225 225
power supply 5 V - 5 V 5 V 5 V 5 V
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V - 5 V 5 V 5 V 5 V
Temperature level MILITARY - MILITARY COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form NO LEAD - THROUGH-HOLE THROUGH-HOLE GULL WING THROUGH-HOLE
Terminal pitch 1.27 mm - 2.54 mm 2.54 mm 1.27 mm 2.54 mm
Terminal location QUAD - DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 30 - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 30
