35M048B2U datasheet, PDF - EEWORLD Datasheet

35M048B2U: Descriptionstepper motor 12vdc 7.5deg uni; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1010KB，21 Pages; ManufacturerPortescap; Websitehttps://www.portescap.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

35M048B2U Overview

stepper motor 12vdc 7.5deg uni

Parameter Name	Attribute value
Datasheets
35M048B Spec.
CanStack Motor Part Numbering

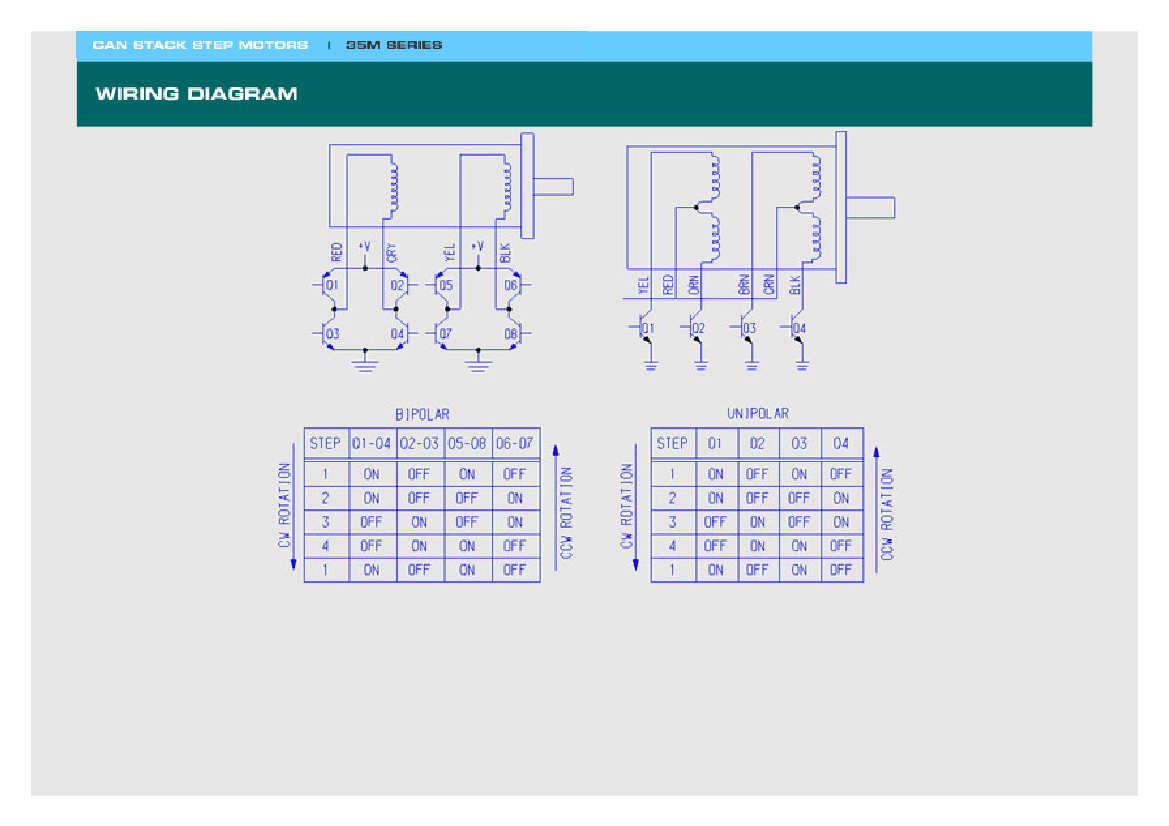

35M Series Wiring Diagram
Product Photos
35M048B2U
Product Training Modules
Stepper Fundamentals

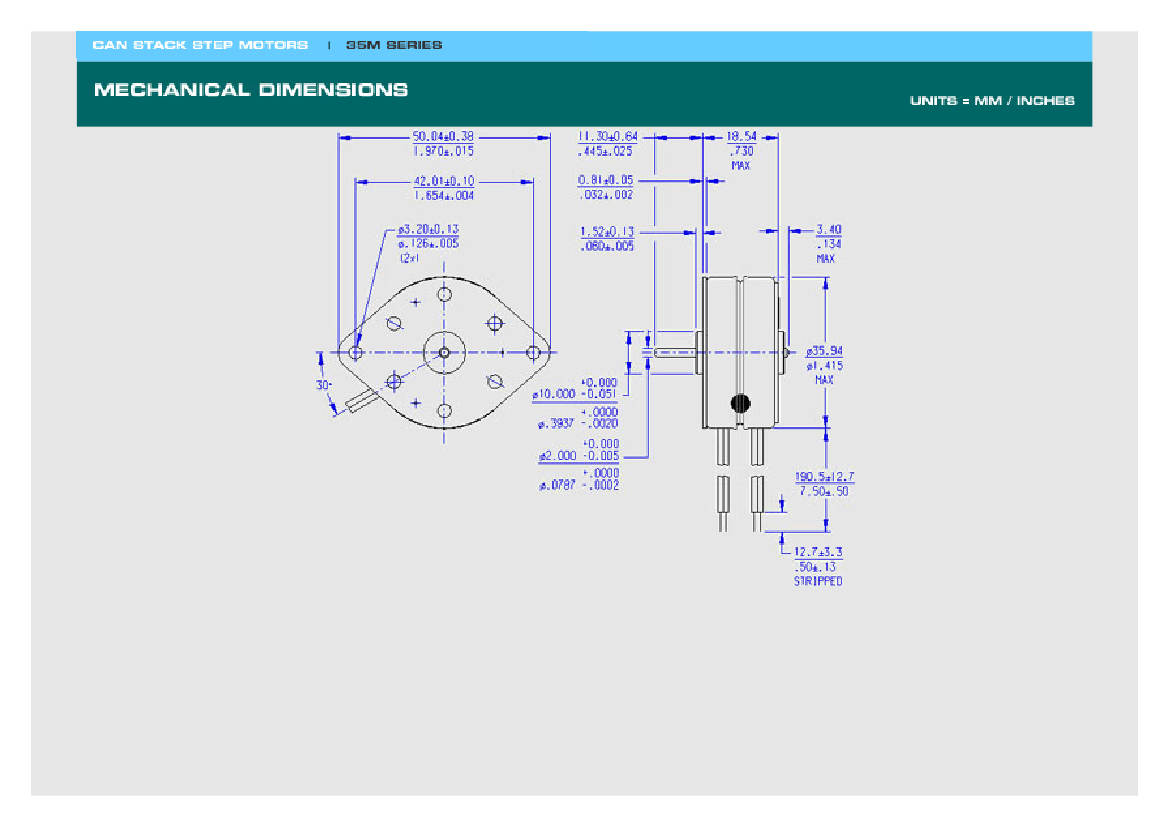

Catalog Drawings
35L,35M Series
Standard Package	50
Category	Motors, Solenoids, Driver Boards/Modules
Family	Stepper Motors
Type	Standard
Coil Type	Unipol
Voltage - Rated	12VDC
Steps per Revoluti	48
Step Angle	7.5°
Torque - Holding (oz-in / mNm)	2.6 / 18.4
Diameter - Body	1.42" (35.94mm)
Diameter - Shaf	0.079" (2.00mm)
Length - Shaft and Bearing	0.445" (11.30mm)
Mounting Hole Spacing	1.65" (42.00mm)
Length - Lead Wire	7.50" (190.50mm)
Weigh	0.175 lb (79.38g)
Dynamic Catalog	35M Series
Other Names	403-1008

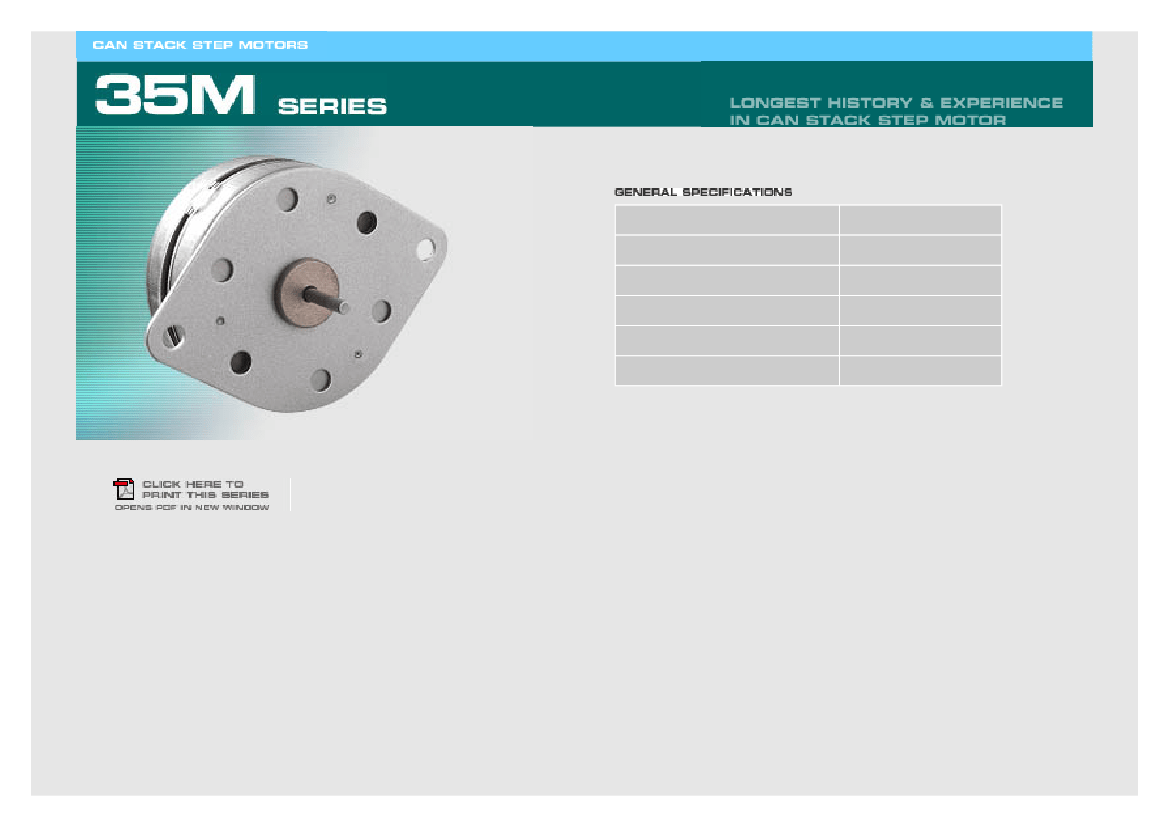

Step Angle

Step Accuracy

Operating Temperature

Ambient Temperature Range

Insulation Resistance at 500Vdc

Dielectric Withstanding Voltage

7.5° / 15° / 18°

± 0.5° / ± 1° / ± 1.2°

100°C Max

-20°C ~ +70°C

100MΩ

650 ± 50 VRMS, 2 sec

The specifications in this publication are believed to be accurate and reliable. However, it is the

responsibility of the product user to determine the suitability of Portescap products for a specific

application. While defective products will be replaced without charge if promptly returned, no

liability is assumed beyond such replacement.

Portescap Danaher Motion motors will not be CE marked where the Low Voltage Directive, the

Electro-Magnetic Compatibility or other appropriate EU directives are not applicable - this is an

EU legal requirement.

	35M048B2U	35M048B1U
Description	stepper motor 12vdc 7.5deg uni	stepper motor 5vdc 7.5deg unipol
Standard Package	50	50
Category	Motors, Solenoids, Driver Boards/Modules	Motors, Solenoids, Driver Boards/Modules
Family	Stepper Motors	Stepper Motors
Type	Standard	Standard
Coil Type	Unipol	Unipol
Voltage - Rated	12VDC	5VDC
Steps per Revoluti	48	48
Step Angle	7.5°	7.5°
Torque - Holding (oz-in / mNm)	2.6 / 18.4	2.6 / 18.4
Diameter - Body	1.42" (35.94mm)	1.42" (35.94mm)
Diameter - Shaf	0.079" (2.00mm)	0.079" (2.00mm)
Length - Shaft and Bearing	0.445" (11.30mm)	0.445" (11.30mm)
Mounting Hole Spacing	1.65" (42.00mm)	1.65" (42.00mm)
Length - Lead Wire	7.50" (190.50mm)	7.50" (190.50mm)
Weigh	0.175 lb (79.38g)	0.175 lb (79.38g)
Dynamic Catalog	35M Series	35M Series
Other Names	403-1008	403-1021
