5335H7: DescriptionSingle Color LED, Yellow, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size116KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric View All

5335H7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5335H7	-	-	View	Buy Now

5335H7 Overview

Single Color LED, Yellow, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2

5335H7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknow
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.035 A
Lens type	DIFFUSED
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	14.478 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
perspective	50 deg
Base Number Matches	1

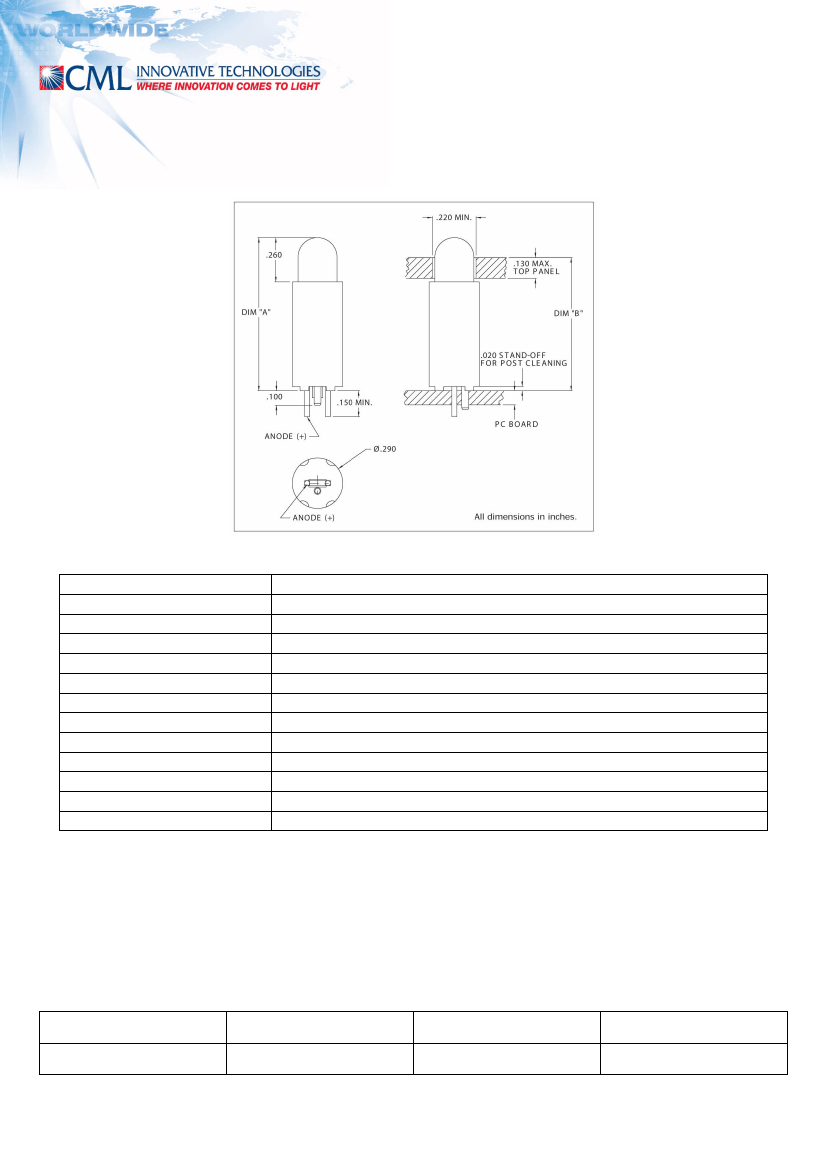

Preview

Download Datasheet

View All

Part Number : 5335H7

Serial Number : 5335H

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

ROHS Status

Yellow

2,2

6.3

10.0

60.0

2.1

3.0

3

50

585

UL94V-0

Yes

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5335H

Name : VG

Print date : 14/08/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
