3961H-08W-L

Description
Board Connector, 8 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size259KB,1 Pages
ManufacturerAmtek Technology Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

3961H-08W-L Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug

3961H-08W-L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid305233961
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.303 inch
subject depth0.63 inch
body length1.267 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial number3961
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)7 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts8
Maximum wire diameter18 AWG
Minimum wire diameter24 AWG

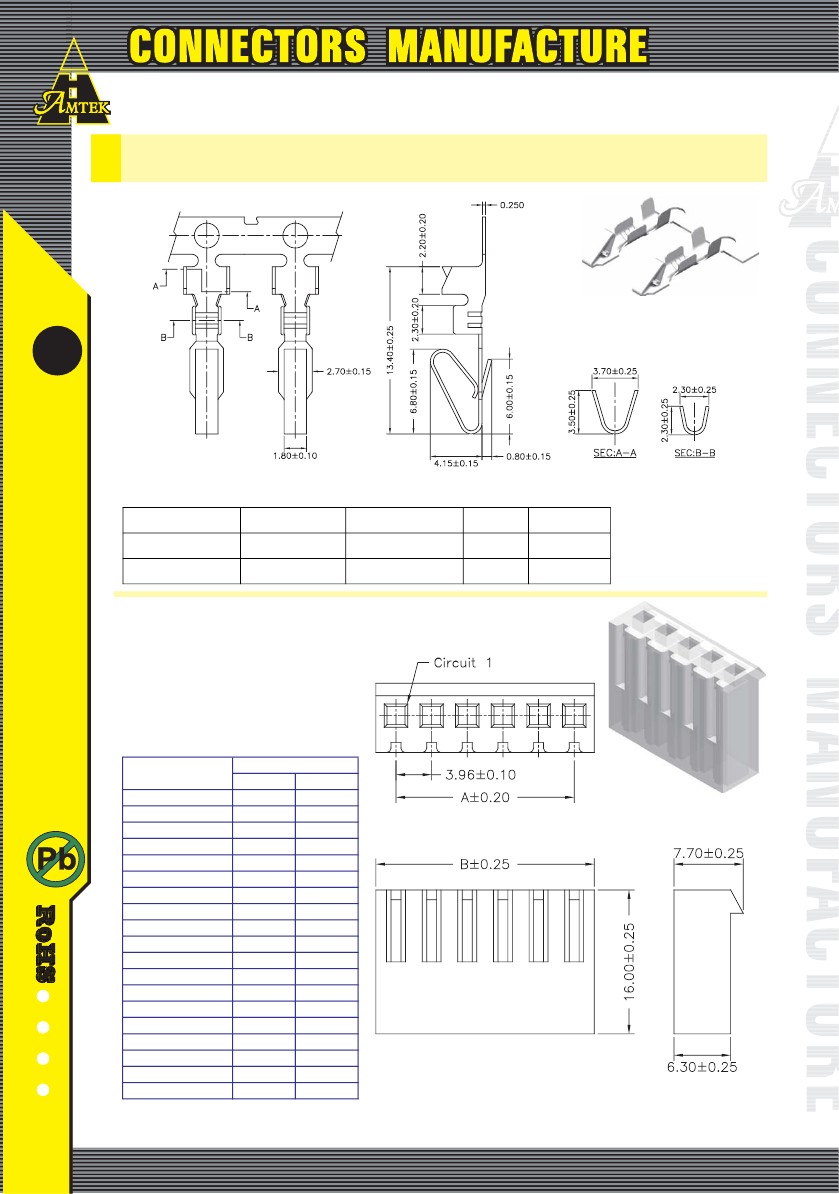

3.96mm Terminal / Housing
H
ousing wafer Terminal
Part No.:3961-T-L
Part No.
3961-TTB-L
3961-TGB-L
Specifications
Insulation O.D. Material Finish
AWG#18-#24 2.80mm(max)
Brass Tin Plated
AWG#18-#24 2.80mm(max)
Brass
Gold Plated
Wire Range
Current Rating: 7A AC,DC
Voltage Rating: 250V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 10m
Ω
Max
Insulation Resistance: 1000M
Ω
Min
Withstanding Voltage: 1500V AC/minute
Material: Nylon 66,UL94V-2
Part No.
3961H-02W-L
3961H-03W-L
3961H-04W-L
3961H-05W-L
3691H-06W-L
3961H-07W-L
3961H-08W-L
3961H-09W-L
3961H-10W-L
3961H-11W-L
3961H-12W-L
3961H-13W-L
3961H-14W-L
3961H-15W-L
3961H-16W-L
3961H-17W-L
3961H-18W-L
3961H-19W-L
3961H-20W-L
Dimensions
A
B
3.96
8.43
7.92
12.39
11.88
16.35
15.84
20.31
19.80
24.27
23.76
28.23
27.72
32.19
31.68
36.15
35.64
40.11
39.60
44.07
43.56
48.03
47.52
51.99
51.48
55.95
55.44
59.91
59.40
63.87
63.36
67.83
67.32
71.79
71.28
75.75
75.24
79.71
Part No.:3961H-XXW-L
3-111
www.amtek-co.com.tw
