Small Form Factor NRZ
40Gb/s optical transponder
FEATURES
Provides NRZ modulation for bit-
rates from 39.8Gb/s to 43.1Gb/s
Compact EML design saves space
while lowering power
Available in a small form factor with
a standard 300 PIN interface
OIF, SFI-5 compliant interface that
provides 16 differential 2.5Gb/s
lines
Supports OC-768, STM-256, OTU-3,
G.693, G.709 and ITU-T, VSR2000-
3R2 standards
Provides proprietary control and
monitoring of sub-modules
Allows for adjustable thresholds
and sampling phase control on
receiver
Compliant with ITU jitter
specifications
Provides both direct input and PLL
(jitter reduction circuit) reference
clock options
Uses standard un-sequencing
supply voltages
Provides I
2
C interface for controlling
and monitoring
OVERVIEW

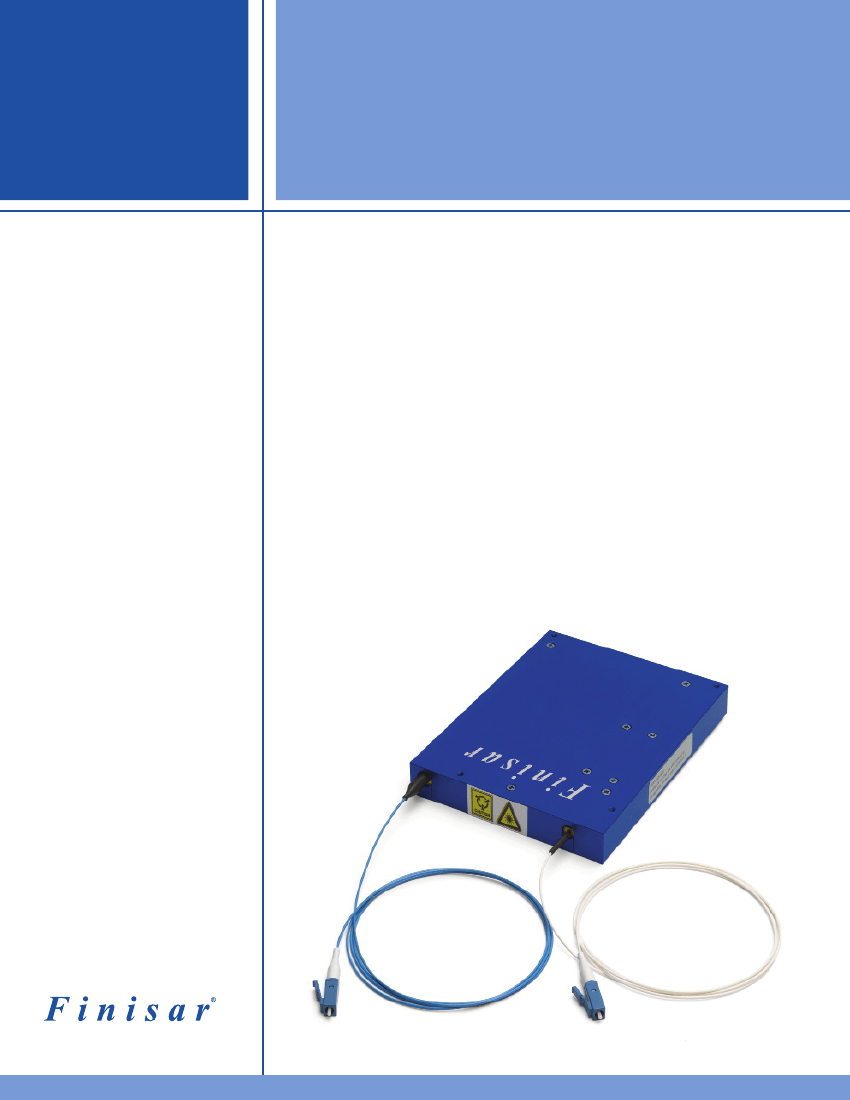

The 40Gb/s Small Form Factor (SFF) Non-Return to Zero (NRZ) optical module from Finisar is the
most compact 40Gb/s short-reach transponder in the industry. It is offered in a cost-effective,
small (3.5" x 4.5") form factor with a standard 300-PIN MSA interface.
By utilizing the latest chip set technology with proprietary integration techniques, this 40Gb/s
transponder sets a new standard in price, size and performance, while offering the latest features
and protocols.
The advanced mixed-signal chip sets support bit-rates from 39.8Gb/s to 43.1Gb/s, which allows
the transponder to support a wide variety of networking applications including OC-768, STM-256
and OTU-3. This product is also OIF, SFI-5 compliant and supports a number of advanced control
and monitoring features.
The SFF NRZ provides the industry’s smallest form factor for a 40Gb/s transponder. This compact,
EML-based design not only saves space, it also provides for very low power consumption.
This transponder supports a wide variety of 40Gb/s client-side interconnection applications, which
includes optical support for DWDM transmission systems (including OADMs), cross-connects,
optical routers/switches and SONET/SDH transmission systems.
40Gb/s small Form Factor nrZ
tarGet speciFications
technical specifications
Bit Rate
Optical Reach (Span CD of 40ps/nm)
Wavelength
Transmitter Optical Power
Extinction Ratio
Side Mode Suppression Ration
Receiver Sensitivity
Receiver Overload
Power Penalty
Power Dissipation
physical specifications
Operating Case Temperature
Storage Case Temperature
Operating Relative Humidity
Dimensions (L x W x H)
Communications Port
Software Interface
Min
-5
-40
0
3.5 x 4.5 x 0.53
I
2
C
GUI
typ
3
2
14.5
Max
70
85
85
0
8.2
35
-6
dBm
dBm
dB
W
Units
°C
°C
%RH
inch
10
Min
39.8
2
1550
3
typ
Max
43.1
Units
Gb/s
km
nm
dBm
dB
* Preliminary specifications subject to change. Additional information is available upon request.
Tx-Data
Tx-DSC
Tx-
DCK
Tx-REFCK
Tx-CKSRC
PLL
MUX
MDR
EML
Transmit
Data
Fiber
Out
3
0
0
P
I
N
Digital Control
Digital Monitor
Analog Threshold
I
2
C Interface
RxData
RxDSC
RxDCK
RxS
RxREFCK
MUX
Control
& Monitor
MDR
Control
& Monitor
PIN
Monitor
EML
Control
& Monitor
Control and Monitor
DMUX
Control & Monitor
DMUX
PIN/
TIA
Fiber
In
Receive
Data
1389 Moffett Park Drive
Sunnyvale, CA 94089
Phone (US Toll Free): 888.746.6484
Phone Intl: 408.400.1000
Email: sales@finisar.com
www.finisar.com
©2010 Finisar Corporation. All rights reserved. Finisar is a registered trademark of Finisar Corporation. Features and specifications are subject to change without notice. 09/10
54TRAAV2GPL RevA
