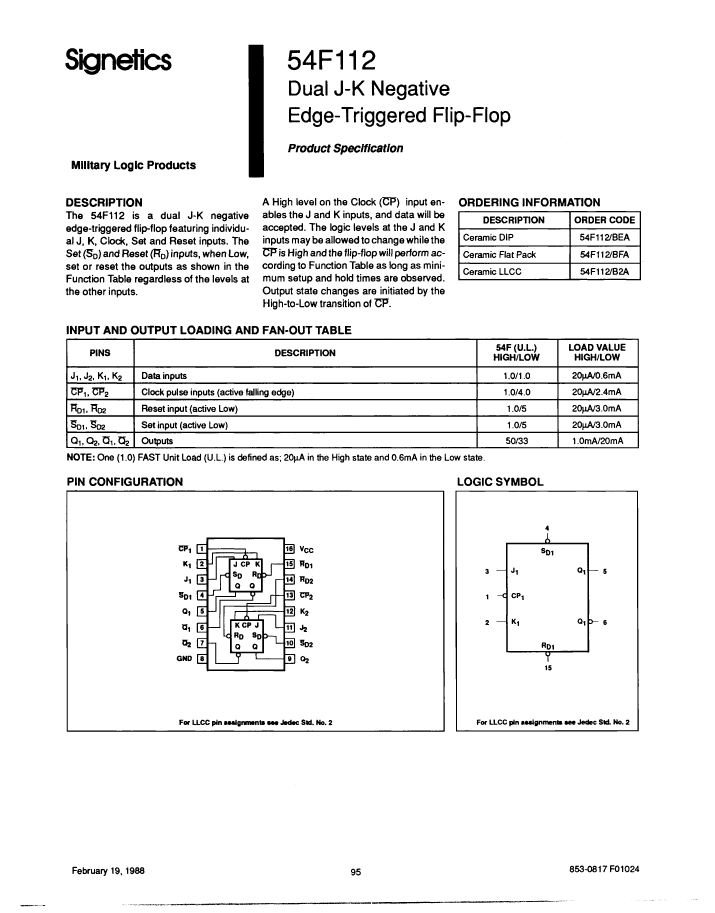

J-K Flip-Flop, F/FAST Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16

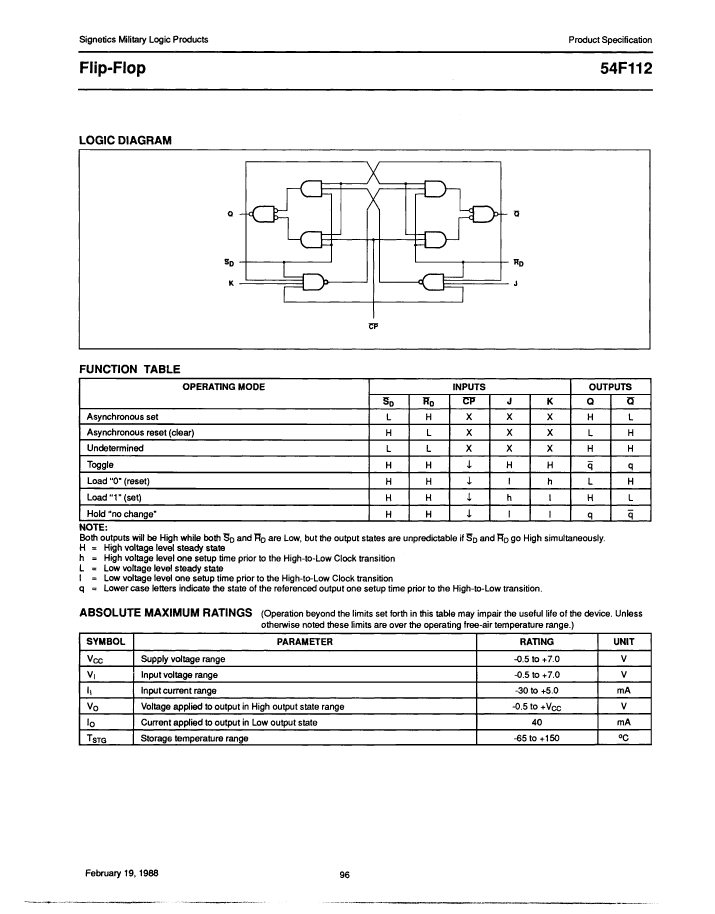

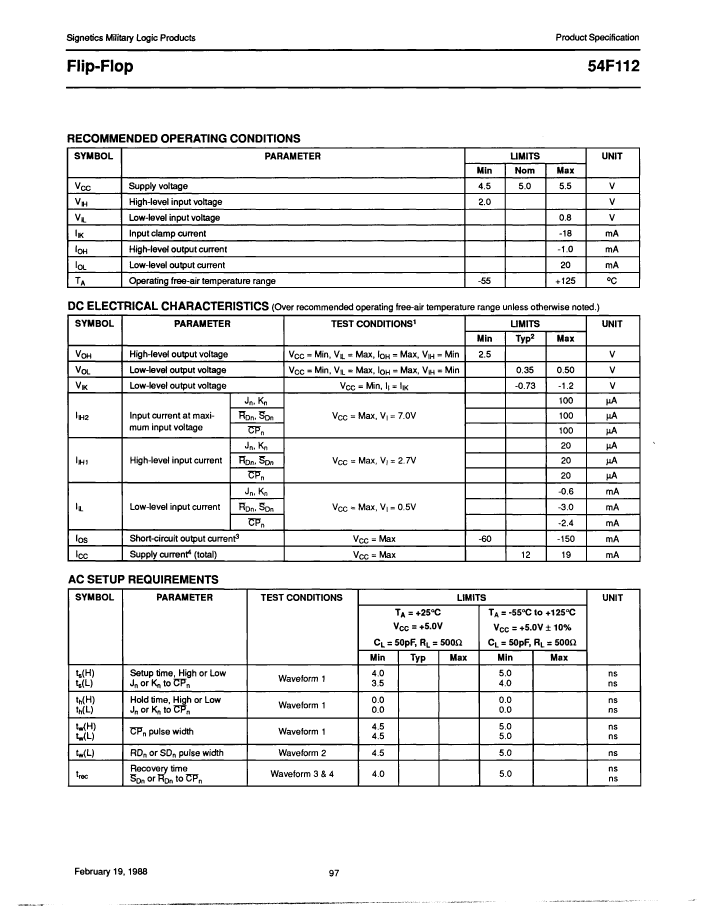

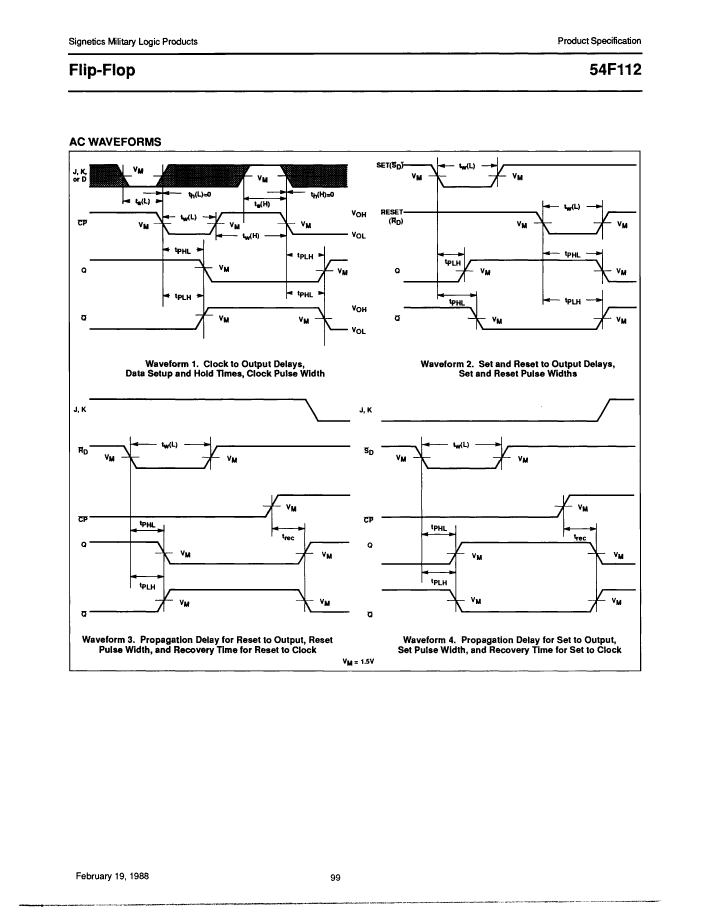

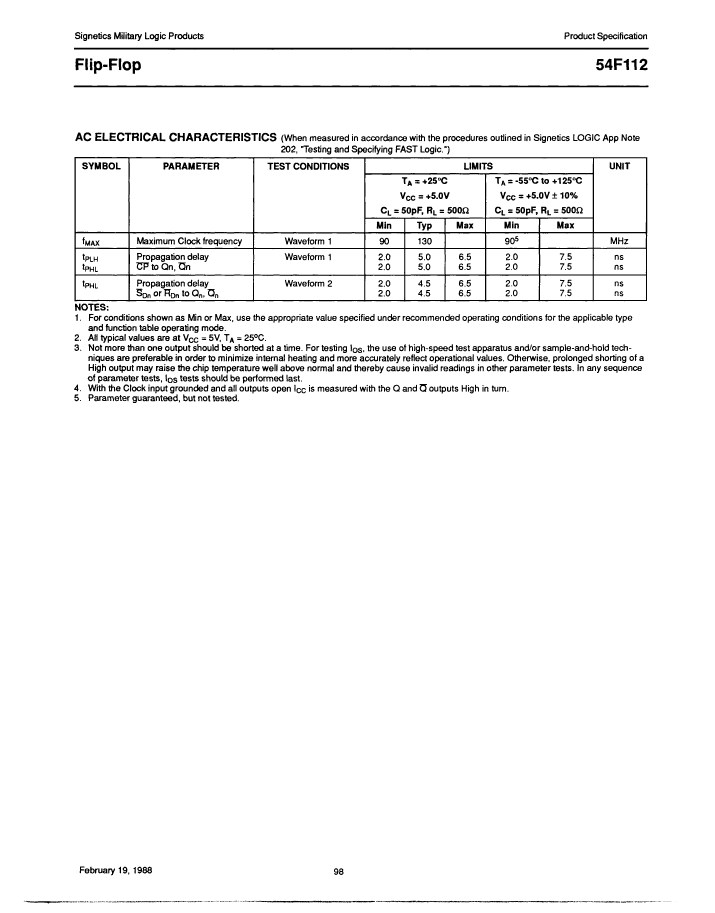

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | , |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| series | F/FAST |
| JESD-30 code | R-CDIP-T16 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | J-K FLIP-FLOP |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 19 mA |
| propagation delay (tpd) | 7.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Trigger type | NEGATIVE EDGE |
| minfmax | 90 MHz |
| Base Number Matches | 1 |
| 54F112/BEA | 54F112/B2A | 54F112/BFA | |
|---|---|---|---|
| Description | J-K Flip-Flop, F/FAST Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16 | J-K Flip-Flop, F/FAST Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CQCC20 | J-K Flip-Flop, F/FAST Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP16 |
| Reach Compliance Code | unknow | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-CDIP-T16 | S-CQCC-N20 | R-CDFP-F16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of digits | 2 | 2 | 2 |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | FLATPACK |
| Maximum supply current (ICC) | 19 mA | 19 mA | 19 mA |
| propagation delay (tpd) | 7.5 ns | 7.5 ns | 7.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD | FLAT |
| Terminal location | DUAL | QUAD | DUAL |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE |
| minfmax | 90 MHz | 90 MHz | 90 MHz |
| Base Number Matches | 1 | 1 | 1 |
