E222Y10E10: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, M2,; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

E222Y10E10 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, M2,

E222Y10E10 Parametric

Parameter Name	Attribute value
Objectid	145154683063
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
Other features	STANDARD: MIL 83513
Board mount options	HOLE .086-.098
body width	0.181 inch
subject depth	0.213 inch
body length	0.657 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1060VAC V
Durability	500 Cycles
Filter function	NO
maximum insertion force	1.7 N
Insulation resistance	2000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	LOCKNUT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	260 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	MIL; UL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	0.1 N

Preview

Download Datasheet

View All

0.80

D

5.40

3.40

CUT A-A

3

B

C

First LF

contact D

F

A

Pitch = 1.27

A

E

Last LF

contact G

4

4.60

=

3.50

PCB 2 max.

Hex. 4

A

B ±0.10

0.40 ±0.05

3.50

M2

Connector support face

Pitch = 1.27

4.80

4

3

2

1

A

3

0.50 ±0.10

1.20

1.50

2.30

B ±0.10

C

2.30

2x

2.20 min.

Recommended PCB layout :

Pitch = 1.27

nn x

0.60 min.

2

Pitch = 1.27

3.50

A

B

3.50

www.nicomatic.com

This document is the property of Nicomatic. It may not be reproduced without the

prior written permission of the owner. Law of 11 March 1902.

Drawn

Date

Iss

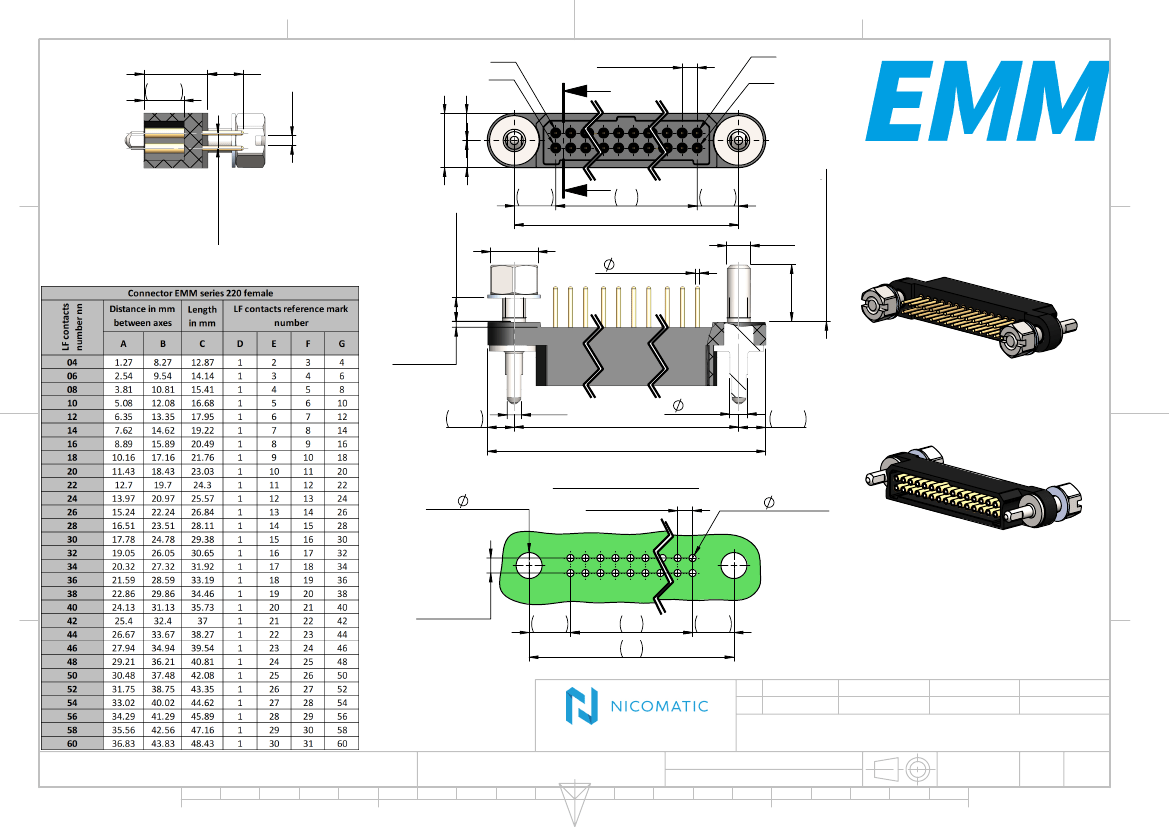

Item : Connector EMM 220 female Y

on PCB, nn LF contacts, E10 guiding

E222YnnE10

MDC.P16020

a 10/07/18

J.R.

A.J.

Checked

C.C.

Approved

1

Scale

3:1

Page

1/2

Catalogue

Reference :

E222YnnE10

Compliant matrix :

Customer reference :

General

tolerance±0.2

A4

D
