BC065-21-A-L-E: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC065-21-A-L-E Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking,

BC065-21-A-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1948566439
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	2
body width	0.059 inch
subject depth	0.083 inch
body length	0.846 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.071 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	21

Preview

Download Datasheet

View All

H

No. of

Contacts

Dimensions

A

1.00

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

15.00

16.00

17.00

18.00

19.00

20.00

21.00

22.00

23.00

24.00

25.00

26.00

27.00

28.00

29.00

30.00

31.00

32.00

33.00

34.00

35.00

36.00

37.00

38.00

39.00

B

2.50

3.50

4.50

5.50

6.50

7.50

8.50

9.50

10.50

11.50

12.50

13.50

14.50

15.50

16.50

17.50

18.50

19.50

20.50

21.50

22.50

23.50

24.50

25.50

26.50

27.50

28.50

29.50

30.50

31.50

32.50

33.50

34.50

35.50

36.50

37.50

38.50

39.50

40.50

B±0.30

A±0.20

G

2

.5 0

1.50

Ø0

0.46

1.00

3

4

5

6

7

8

1.50

1.00

F

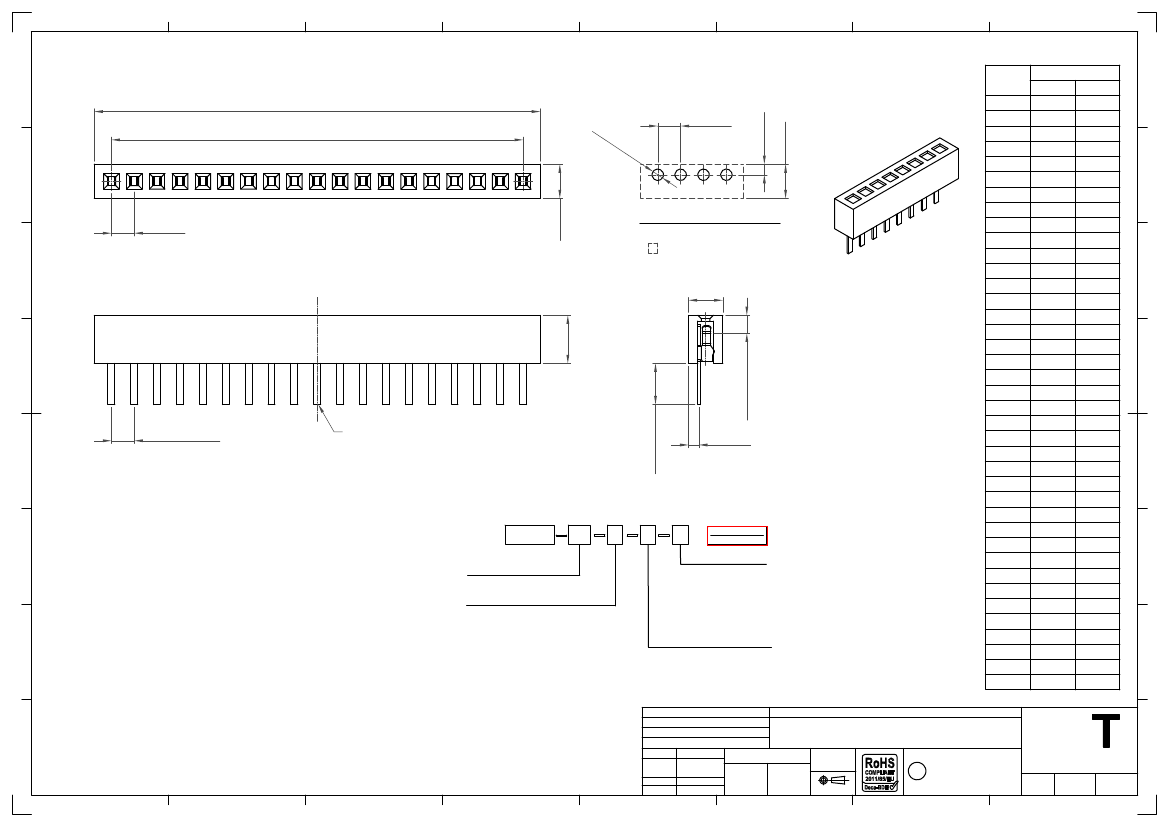

Recommended PCB Layout

Tolerance: ±0.05

Component Outline

9

10

11

12

13

1.5

2.10

14

15

16

17

18

E

0.79 REF.

19

20

21

22

23

1.00±0.10

D

0.30x0.10 PIN

1.8±0.25

0.46

24

25

26

27

28

Specifications

规格

Material

物料

Contact

端子物料

: Phosphor Bronze

Insulator

绝缘½物料

:

Standard

标准物料

: Polymer

聚合物

, LCP, UL 94-V0

Ordering Grid

29

BC065

No. of Contacts

02 to 40

XX

X

L

X

Request Samples

and Quotation

30

31

32

33

34

35

36

37

38

39

40

C

Electrical

电气

Current Rating

电流额定值

: 1 Amp Per Pin

Insulation Resistance

绝缘电阻值

: 1000 M

Ω

min

Contact Resistance

接触电阻值

: 40 m

Ω

max.

Dielectric Withstand Voltage

耐电压

: AC 300 V

Mechanical & Environmental

机械

&

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

:

LCP (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

:250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Contact Plating

A = Gold Flash All Over

(Standard)

C = Tin All Over

Packing Options

D = Tube

(Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

(For 2, 3 and 4 contact connectors option D or G)

Insulator Material

L = LCP

(Standard)

B

Part Number

Product Description

BC065

Drawing Date

A

20th May 2008

1.00mm Pitch Socket, Single Row,

Through Hole, Vertical

Tolerances

(Except as Noted)

Length

Angle

Mates with

配套之公头

(Subject to pin length

在端子长度适合的条件下

)

BC020 BC025 BC030 BC032

BC034

1

2

3

4

5

By

Detail

Revision

Date

CC

BC065

D PCN

D1

23/03/17

X. ± 0.30

X.° ± 5°

X.X° ± 3°

X.X ± 0.25

X.XX ± 0.15 X.XX° ± 2°

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

ASE

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8
