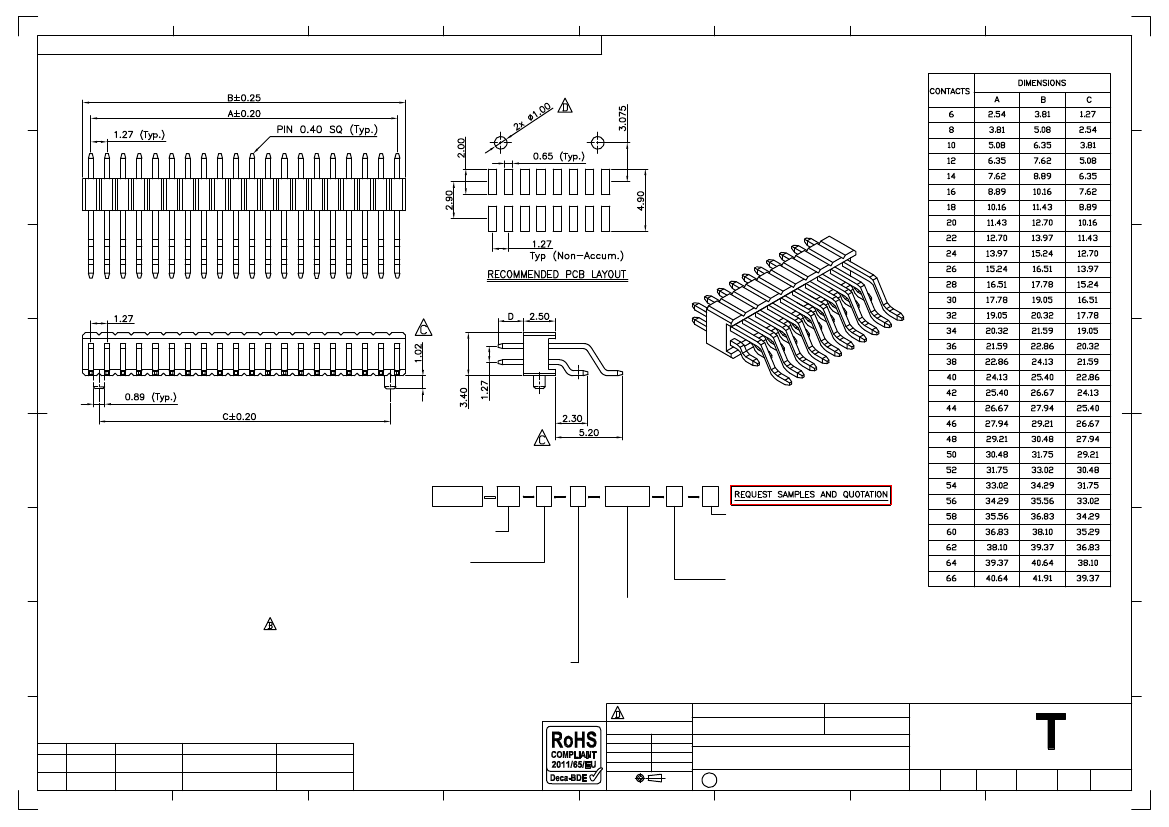

Global Connector Technology Ltd. - BD038: 1.27mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, HORIZONTAL
A
5
6
7
8
A
B
B
C
C
D
D
E
SPECIFICATIONS
规格
:
CURRENT RATING
电流额定值
: 1 AMP
INSULATOR RESISTANCE
绝缘电阻值
: 1000 MEGOHMS MIN.
DIELECTRIC WITHSTANDING
耐电压
: AC 300 V
CONTACT RESISTANCE
接触电阻值：
20m
Ω
Max.
F
OPERATING TEMPERATURE
工½温度
: -40°C TO +105°C
CONTACT MATERIAL
端子物料
: COPPER ALLOY
INSULATOR MATERIAL
绝缘½物料
:
STANDARD
标准物料
: POLYESTER
聚酯
, LCP, UL 94-V0 SOLDERING
OPTION
可选物料
: POLYAMIDE
聚醯胺
, NYLON 6T, UL 94-V0
PROCESS
可焊性
:
LCP (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 250°C for 5-10 sec
G
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
NYLON 6T (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BD050
BD055
BD060
BD064
BD065
BD067
BD091
BD092
BD093
E
Ordering Grid
BD038
No. of Contacts
06 to 66
XX
X
1
XXXX
X
X
Packing Options
B = Tape and Reel with Cap (Standard)
D = Tube
E = Tube with Cap
Insulator Material
L = LCP (Standard)
N = Nylon 6T
F
Contact Plating
A = Gold Flash All Over (Standard)
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Locating Peg
1 = With Peg
Dimension D (1/100mm)
(Post Length)
Standard - 1.90mm = 0190
or specify Dimension D
e.g. 2.50mm = 0250
Tol +/- 0.2mm
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
BD038
03 APR 08
H
By
DETAIL
REV
DATE
AE
DRAWING
RELEASE
A
03/04/08
AE
CHANGE TO SOLDER
TEMP. INFORMATION
SA
DIMENSION CHANGE
AND PEG OPTION REMOVED
AJO
HOLE DIAMETER ADDED,
TOLERANCES AMENDED
B
27/07/09
C
23/11/09
D
06/06/13
X.°±5°
X. ± 0.30
Description:-
.X°±2°
X.X ± 0.20
1.27mm PITCH PIN HEADER, DUAL ROW,
.XX°±1°
X.XX ± 0.15
SURFACE MOUNT, HORIZONTAL
X.XXX ± 0.10 .XXX°±0.5°
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Third Angle Projection
GC
Scale
NTS
H
www.gct.co
Drawn by
AE
E & OE
C
Revision
D
Material
See Note
Sheet No.
1/1
