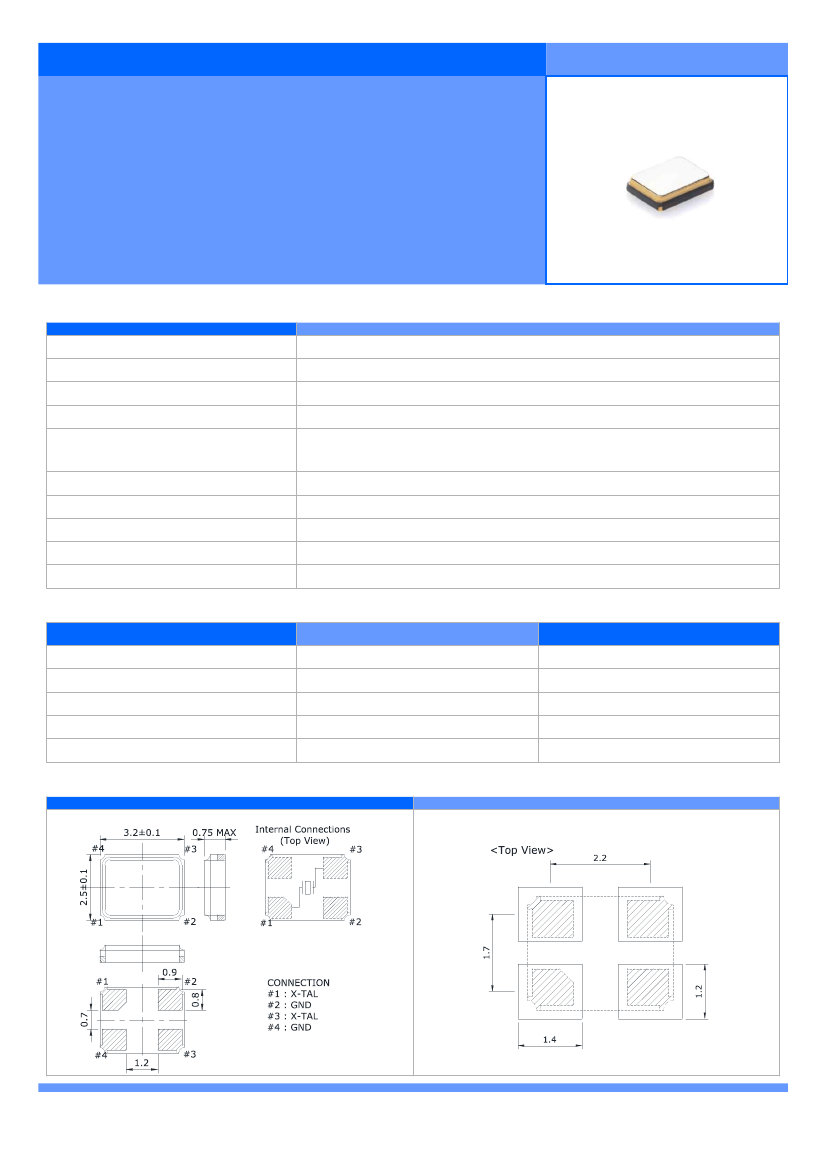

CRYSTAL UNIT
Automotive Grade
SX-A32
-
-
-
-
-
-
-
AEC-Q200 Compliant
Seam Sealed Package
Fundamental Crystal Design
Excellent Vibration Resistance & Shock Resistance
High Frequency Stability
TS-16949 Certified
Pb-free and RoHS Compliance
■ ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Frequency Tolerance (at 25 ℃)
Frequency Stability
Over Operating Temperature Range
Load Capacitance (CL)
Drive Level
Shunt Capacitance (C0)
Aging (at 25 ℃)
Insulation Resistance
12.000 to 54.000 MHz
-40 to +105 ℃, -40 to +125 ℃
-55 to +125 ℃
±15, ±30, ±50 ppm(STD), or specify
±30 to ±100 ppm(-40 to +105 ℃)
±50 to ±100 ppm(-40 to +125 ℃)
12 pF(STD), Custom CL≥8 pF or Series Resonant
10 ㎼(100 ㎼) Max.
5.0 pF Max.
±5 ppm/year Max.
500 MΩ Min. at 100 V
DC
■ EQUIVALENT SERIES RESISTANCE(ESR)
Frequency Range(MHz)
12.000 ~ 13.999
14.000 ~ 15.999
16.000 ~ 19.999
20.000 ~ 29.999
30.000 ~ 54.000
ESR(Ω Max.)
150
100
80
60
50
Mode of Oscillation
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental

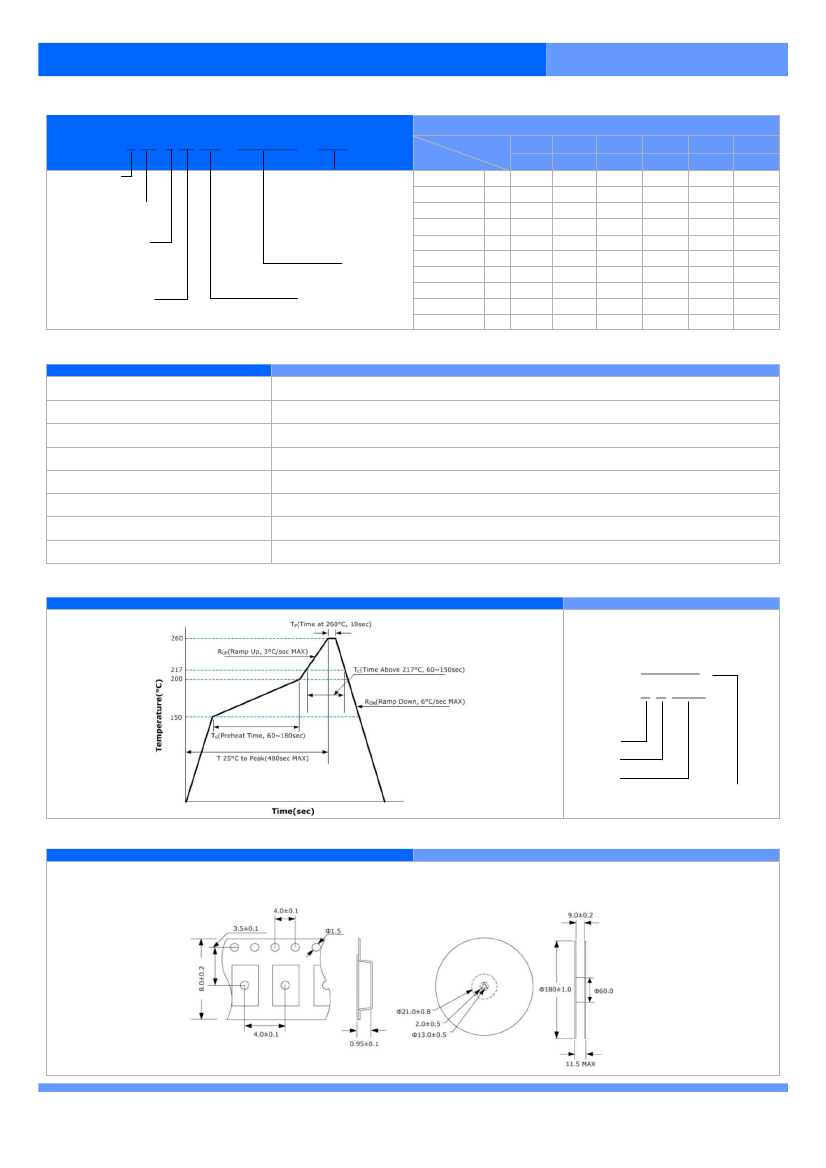

■ MECHANICAL DIMENSIONS
(mm)
■ LAND PATTERN
(mm)
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
CRYSTAL UNIT
■ PART NUMBERING GUIDE
S P 10 1 30 M7
–
27.00000
–
T&R
Temp
PACKAGE TYPE
SX-32(3.2×2.5mm)
LOAD CAPACITANCE
10 : 10 pF
SR : SERIES
MODE OF OSCILLATION
1 : FUNDAMENTAL
PACKAGE OPTION
BLANK : BULK
T&R : TAPE & REEL
■ TABLE 1.
FREQUENCY STABILITY VS. TEMPERATURE RANGE
Stability
-10~70℃
-20~70℃
-30~60℃
-20~85℃
-30~70℃
FREQUENCY
±10
3
*
*
*
±15
4
*
*
*
*
±20
5
*
*
*
*
*
*
*
±30
6
*
*
*
*
*
*
*
*
*
±50
7
*
*
*
*
*
*
*
*
*
*
±100
8
*
*
*
*
*
*
*
*
*
*
D
E
F
G
H
I
J
K
L
M
-30~85℃
-40~85℃
-40~90℃
-40~105℃
-40~125℃
FREQUENCY
TOLERANCE AT 25℃
30 : ±30 ppm
XX: Two digit for Tolerance
TABLE 1.
XX: Two digit for Stability
■ ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
High Temperature Exposure
Temperature Cycling
Biased Humidity
Operational Life
Mechanical Shock
Vibration
Resistance to Soldering Heat
Solderability
MIL-STD-202 Method 108
JESD22 Method JA-104
MIL-STD-202 Method 103
MIL-STD-202 Method 108
MIL-STD-202 Method 213, Conditions C
MIL-STD-202 Method 204
MIL-STD-202 Method 210, Condition B
J-STD-002, Method B, D
■ REFLOW PROFILE
■ MARKING GUIDE
LINE 1 : XX.XXX
LINE 2 : S Y WW
Sunny
Year
Week
Frequency in MHz
■ TAPE AND REEL DIMENSIONS
3,000pcs/reel
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
