5962-87539023A datasheet, PDF - EEWORLD Datasheet

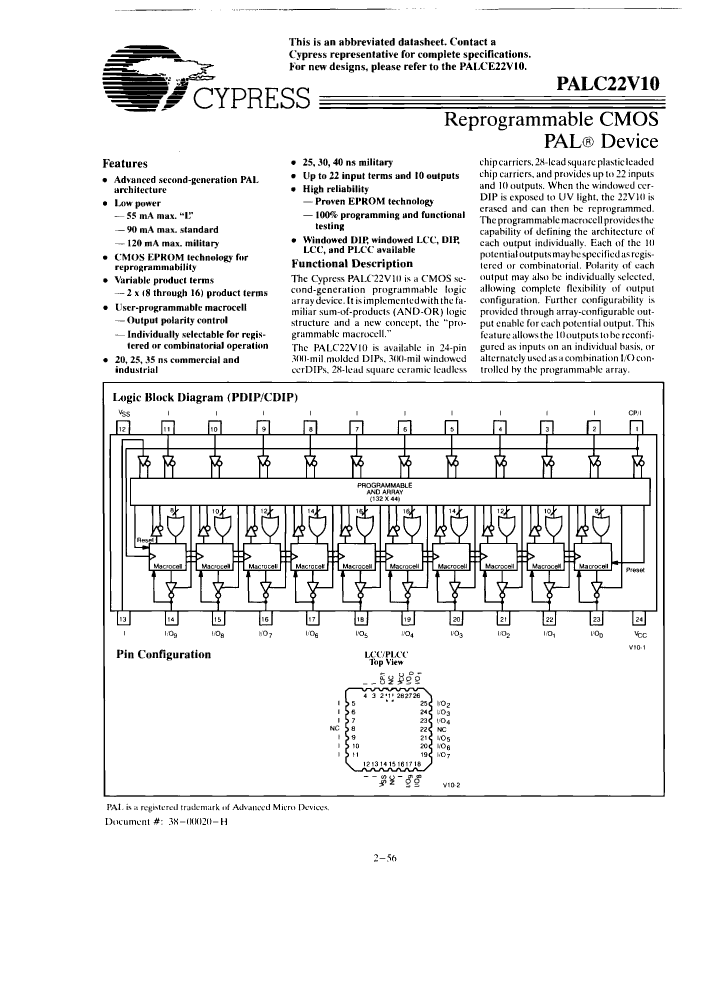

5962-87539023A: DescriptionUV PLD, 30ns, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size44KB，1 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

5962-87539023A Overview

UV PLD, 30ns, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	WQCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
maximum clock frequency	25 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	11
Number of I/O lines	10
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD
propagation delay	30 ns
Certification status	Not Qualified
Maximum seat height	2.8956 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1
